240OPERATION

SafetyRestraintVN730

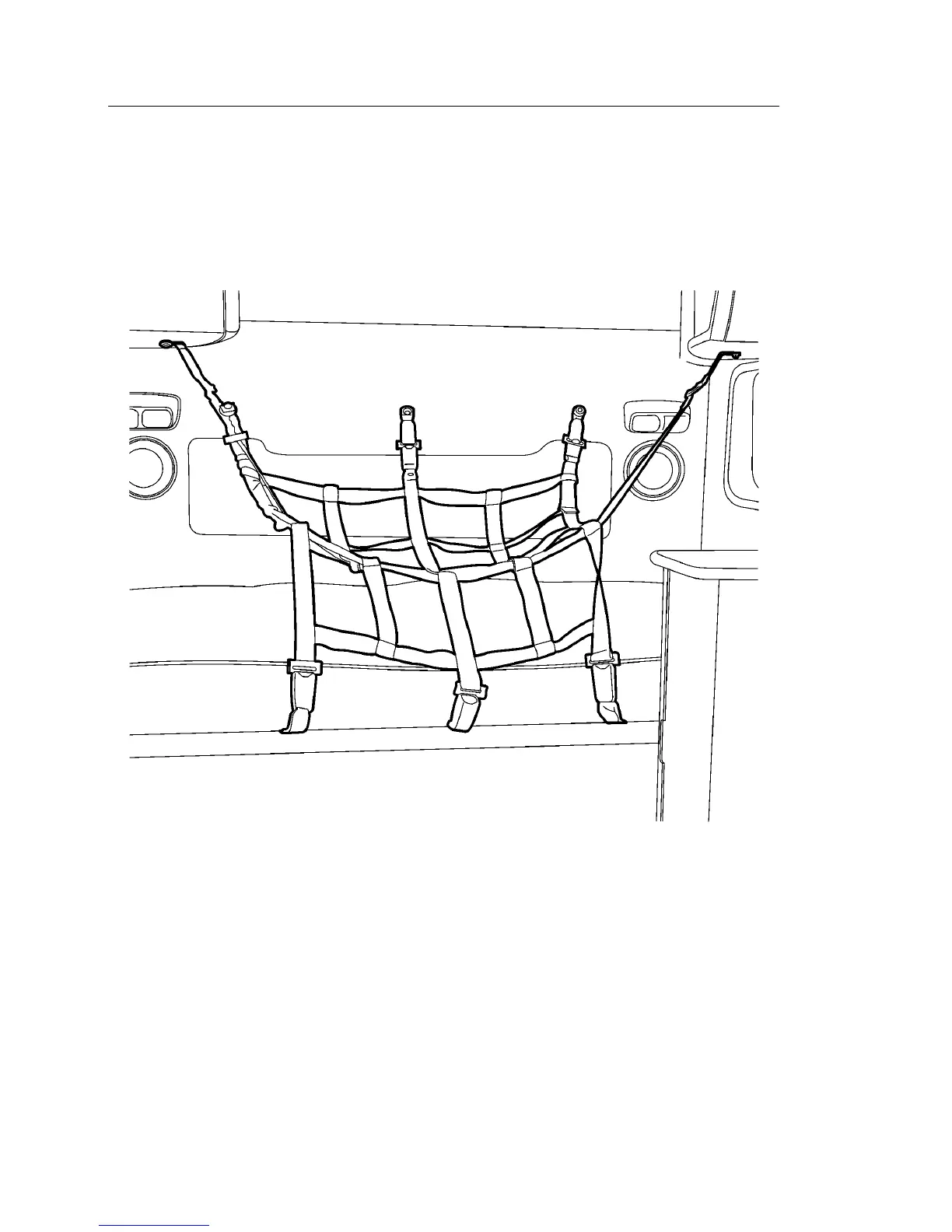

Connecttherestrainttothebackwallrst.Thewallconnectorsarelocatedonthe

backwall.Connectthelowerpartoftherestrainttothelowerbuckles.Connectthe

sidetethersandadjustthestrapstoforma"tent"overthebunk.

Note:Therestraintsfortopandbottombunksaredifferent.Eachbeltcanonlybe

installedtothecorrectbunk.

W8003822

53-InchLowerBunk
