404MAINTENANCEANDLUBRICATION

ClutchFluidCheck

Checktheuidlevelintheclutchuidreservoir.Theuidlevelshouldbebetween

thelevelmarksonthereservoir.Ifuidneedstobeadded,usebrakeuid,DOT4.

W4056530

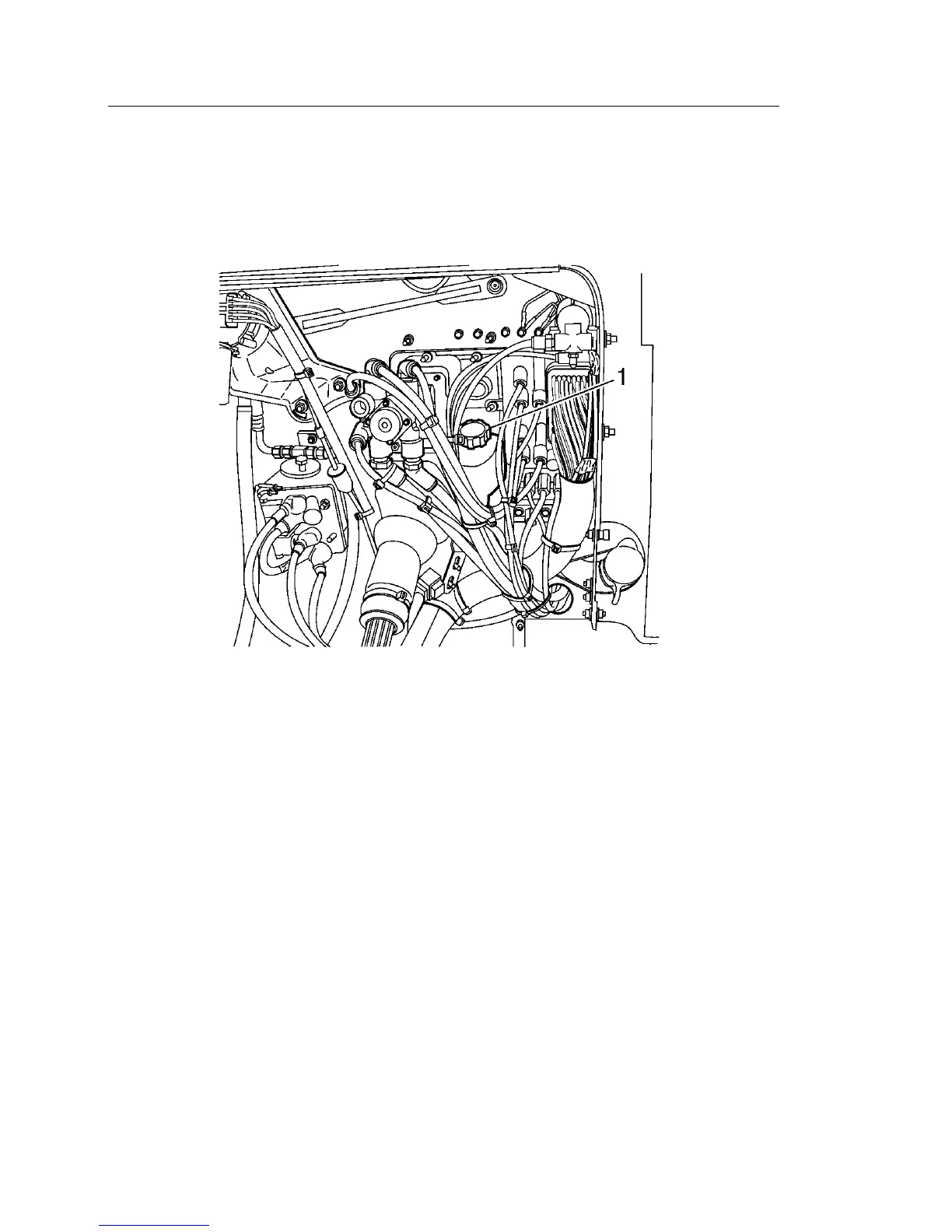

1ClutchFluidReservoir
