56INSTRUMENTSANDCONTROLS

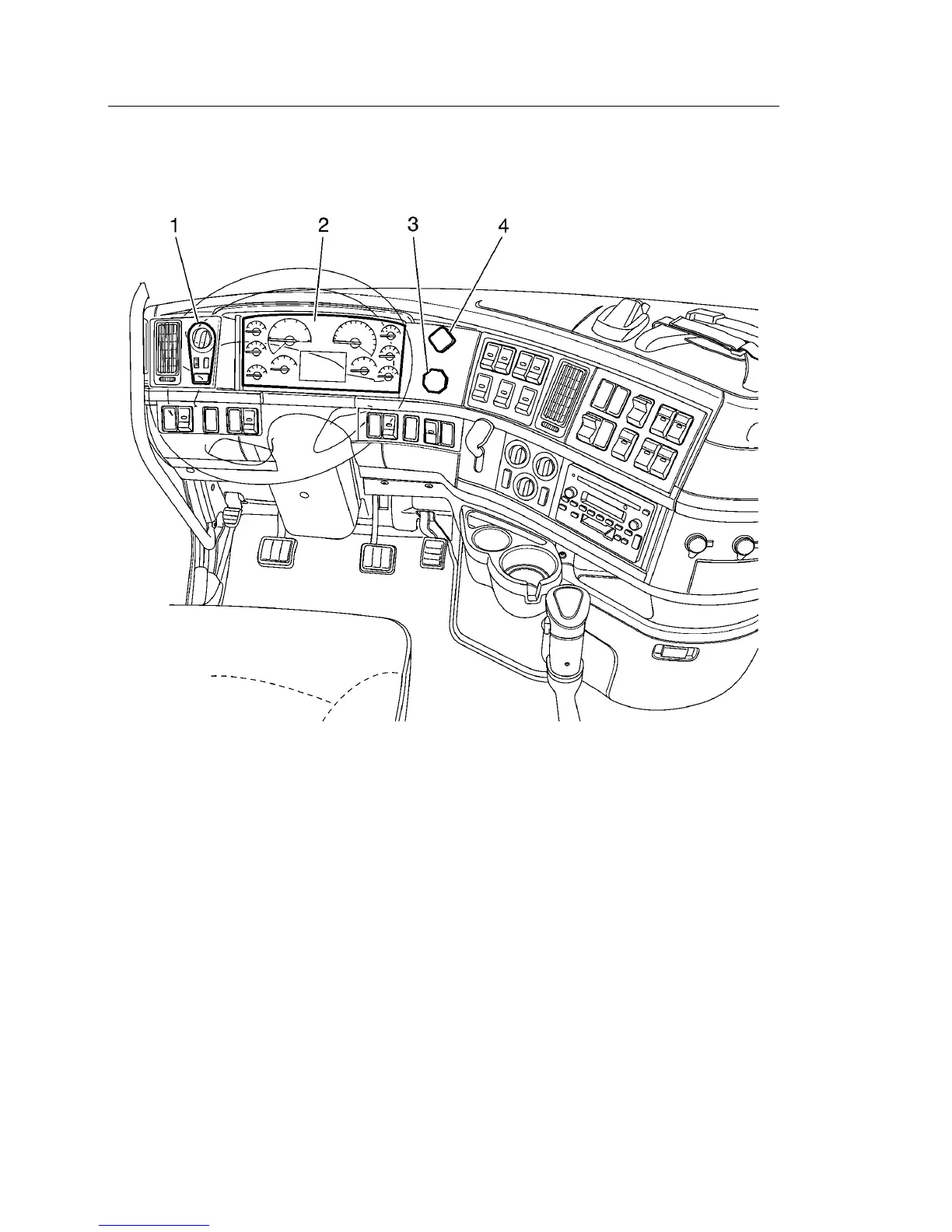

PanelA

W3007469

1LightControlPanel

2InstrumentCluster

3TrailerAirSupply
