358Volvo,US10EmissionsSolution

AftertreatmentMenu

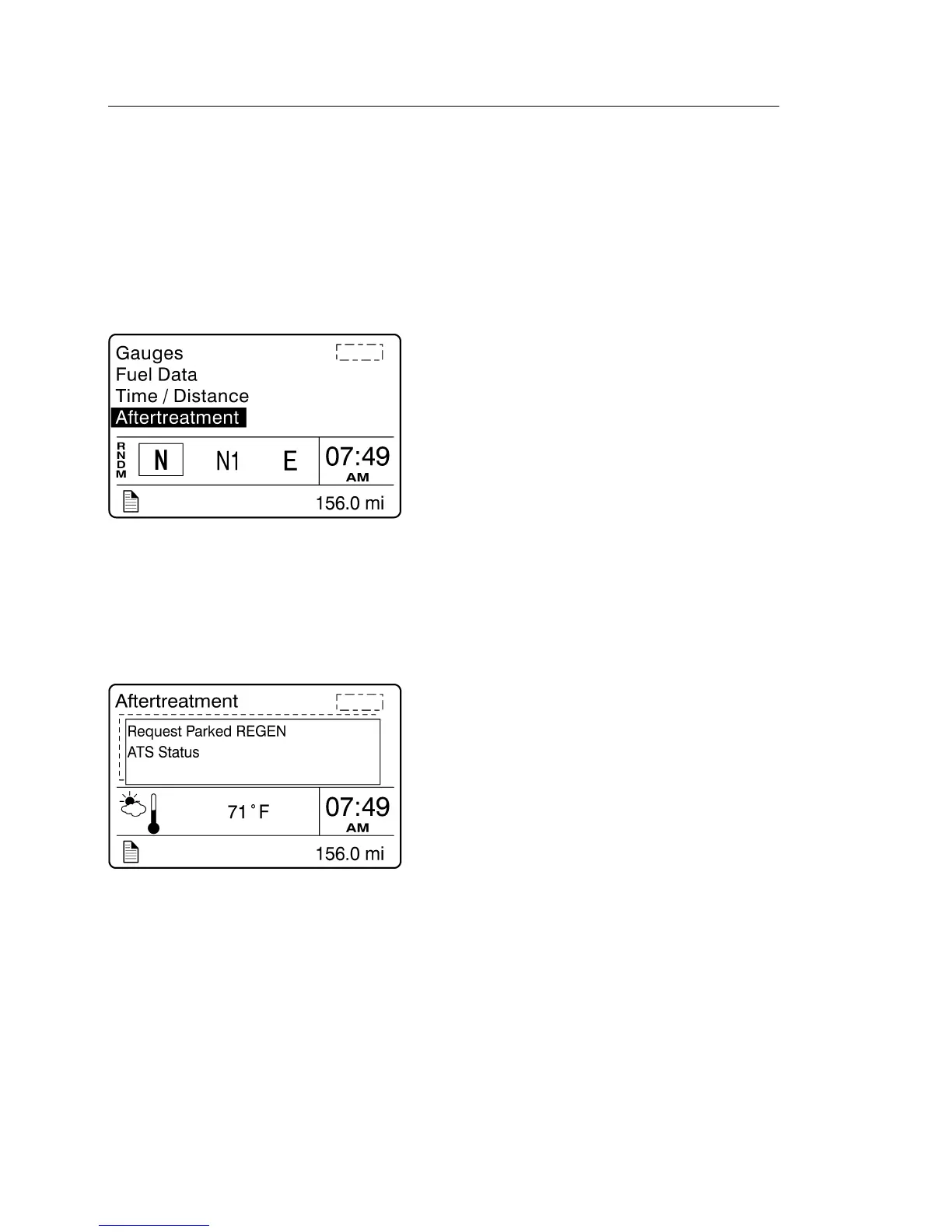

1TheAftertreatmentsystemmenuisintheDID.PresstheEscbuttontodisplaythe

mainmenusintheDID.

2UsetheupanddownbuttonsonthestalkswitchtoscrolltotheAftertreatment

menu.

3Pressthe↵ ↵

↵

buttontoselecttheAftertreatmentmenu.

W3007527

TheAftertreatmentmenuhastwosubmenus:RequestParkedREGENandA TSstatus.

W3054903
