Volvo VN - National Comfort Seat

To Next Page

To Previous Page

OPERATION253

NATIONALCOMFORTSEAT

SomeNationalComfortseatsareequippedwithaBackCycler®feature.Some

NationalComfortseatshaveaswivelmount.

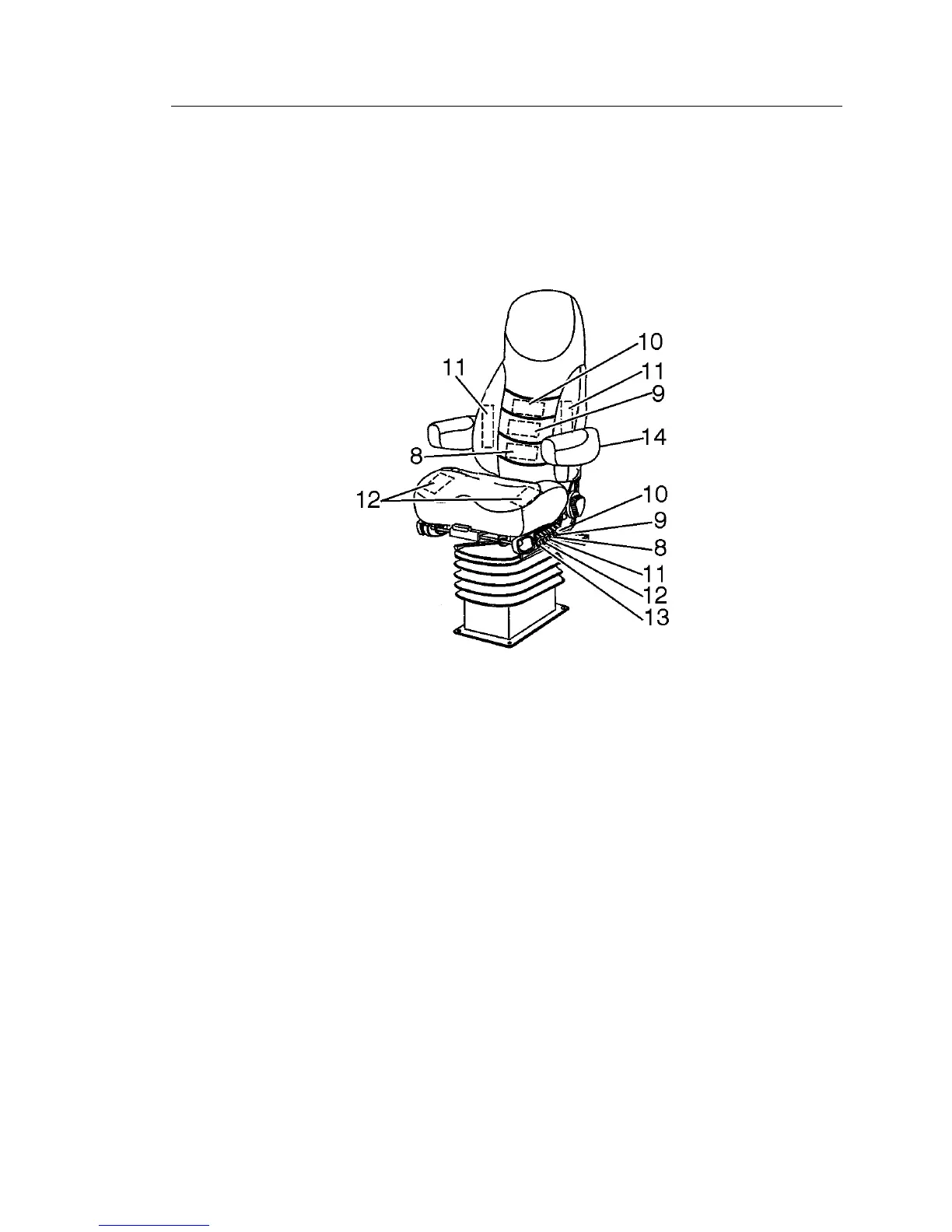

SeatAdjustments

W8002744

NationalComfortSeat

1.SeatAdjustment

ForeandAft

2.IsolatorLock

3.CushionTilt

4.RideHeight

Adjustment

5.LumbarSupport

Adjustment

6.ReclinerTilt

7.ArmrestAngle

Adjustment
