124INSTRUMENTSANDCONTROLS

Curtains

Curtainsareavailableforallthesleepercabstoensureprivacyandtodarkenthecabin

fromoutsidelight.V ariouscongurationsareavailable.Curtainscancoverthewhole

windshieldareaorgoacrossthesleeperopening.

Whenthecurtainsarenotinuse,theyarestoredoutofthewayandheldinplace

withvelcrostraps.

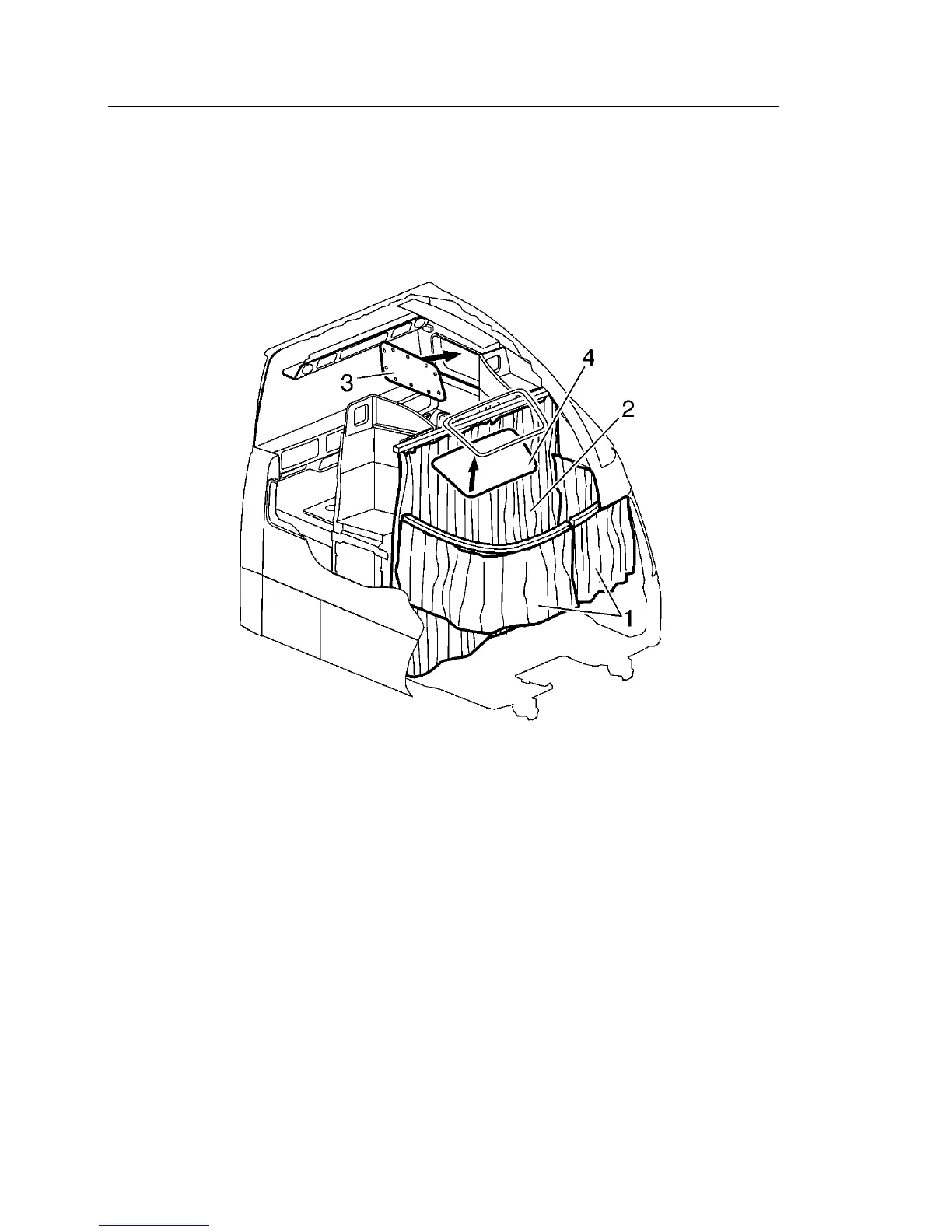

W8028428

1WindshieldCurtains

2SleeperCurtain

3SleeperWindowCover

4SkyLightCover

CoversfortheVN670aretobestoredinarolled-uppositionintheopeningbehind

thecabinet.

ThecoversfortheVN780sidewindowsarestoredbehindthebackrestcushions.All

coversareputonwithsnapbuttonsthatareonthecoverandwindowrim,withthe

exceptionoftheskylightcover.
