INSTRUMENTSANDCONTROLS87

33.SleeperFanSpeedSwitch

Thesleeperfanswitchlocatedinthedash,controlsthesleeperfanspeed.Theswitch

inthesleepercontrolmoduleperformsthesamefunctionasthedashswitch.Press

thetoppartoftheswitchtoincreasethefanspeed,pressthelowerparttodecrease

fanspeed.

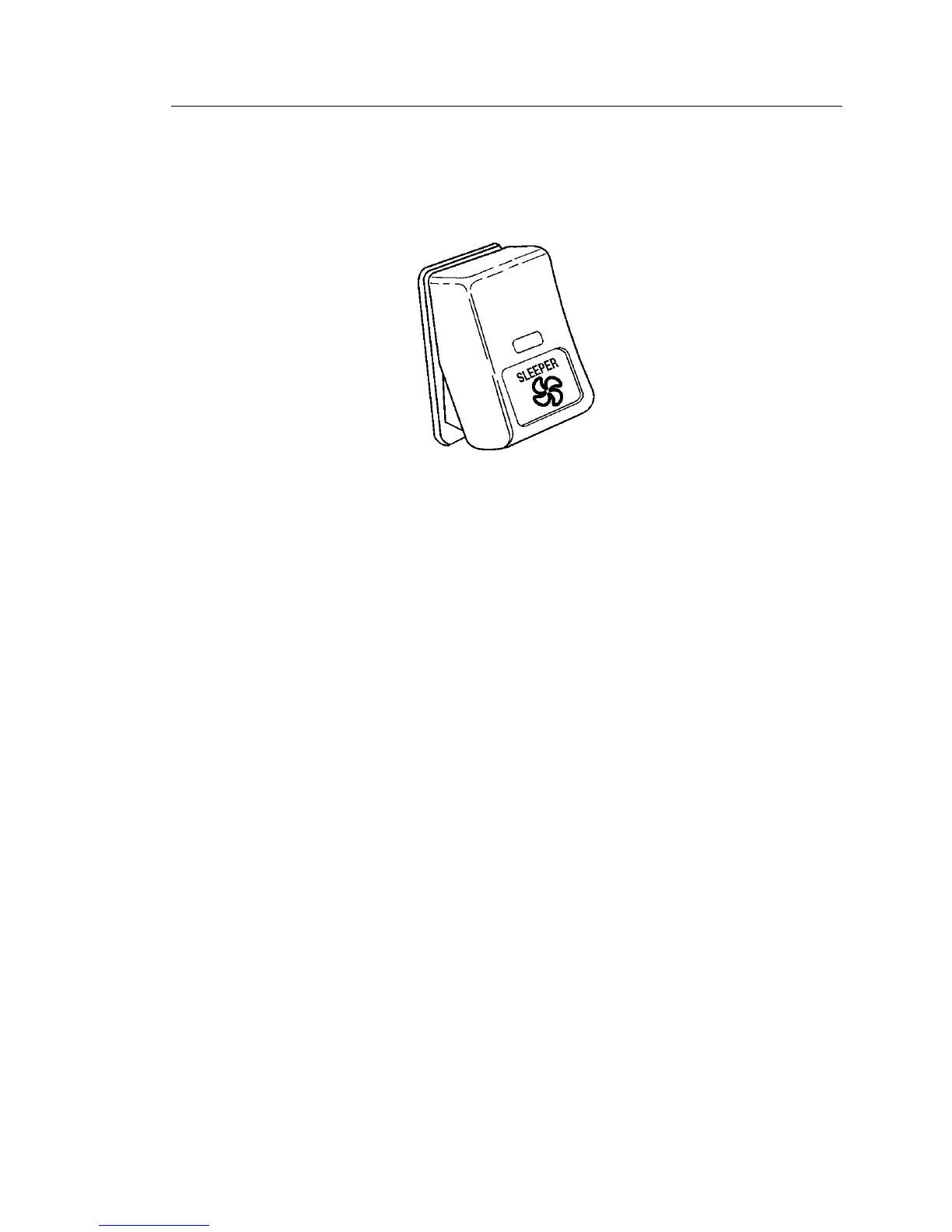

W3005382

SleeperFanSpeedSwitch

SnowPlowLamps

Vehiclesspeciedwiththisoptionhavethefollowing:

•TurnONlowbeamsnowplowheadlamps.

•TurnOFFmainheadlamps,highbeam,foganddrivinglights.

•Indrivingmode,DRLremainsON.

•Snowplowdirectionindicatorsareavailable.
