Volvo,US10EmissionsSolution367

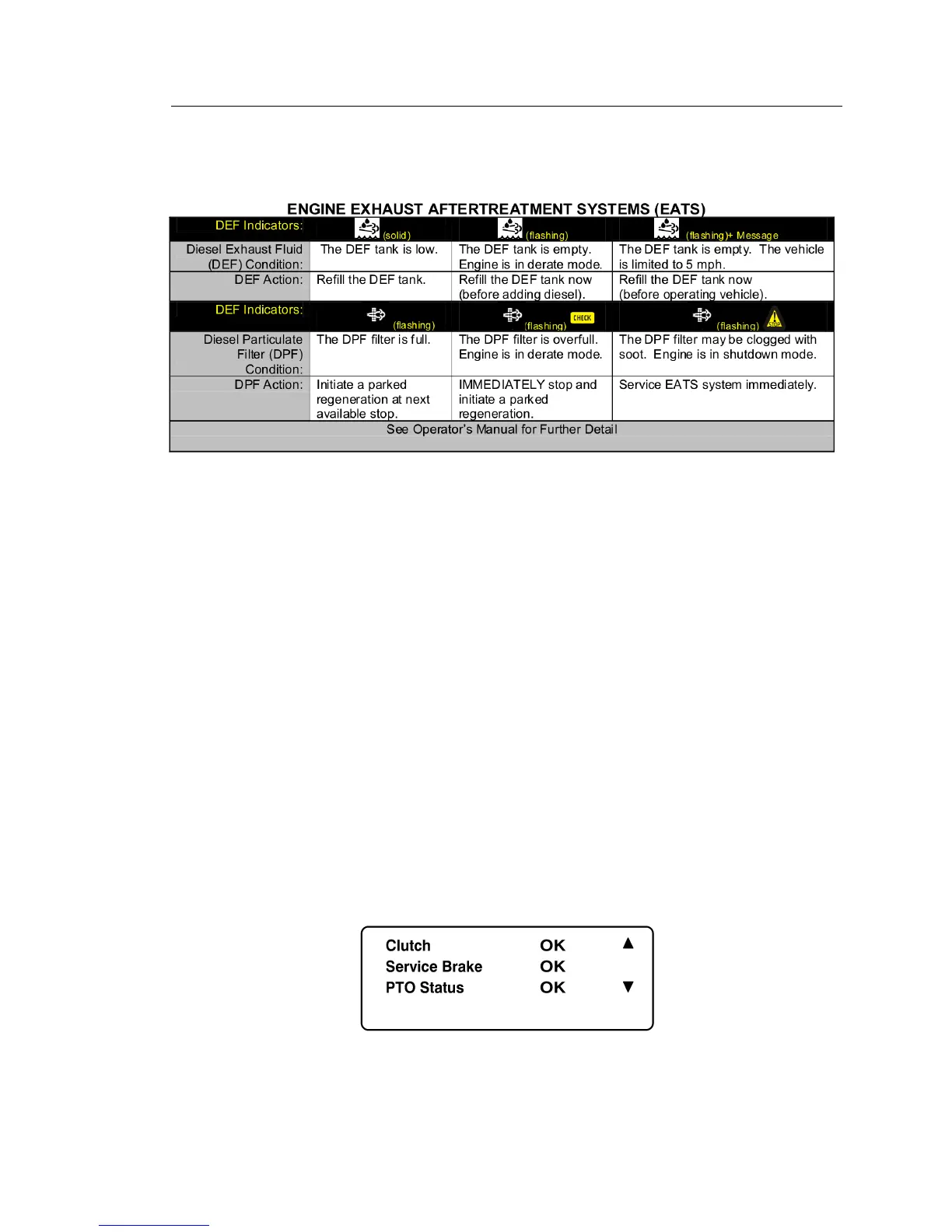

RefertotheExhaustAftertreatmentSystemInformationsunvisorlabelforadditional

AftertreatmentDPFinformation.

W8056652

ExhaustAftertreatmentSystem(ATS)Status

TheA TSstatussubmenusprovideinformationabouttheconditionsrequiredfor

performingaparkedDPFRegeneration.

ThestatuscanbeOK(regenerationallowed),Check(regenerationnotallowed)orN/A

(notapplicable).WhenATSStatusisselected,thefollowingsubmenusareavailable.

ToperformaparkedRegeneration,theclutchpedalmustnotbedepressed,theservice

brakemustnotbeengagedandaPTOmustnotbeengagedorthePTOmustbeable

tooperateabovetheminimumenginespeedrequired.

W3054893
