SAFETYINFORMATION41

WarningTriangles,DayCab

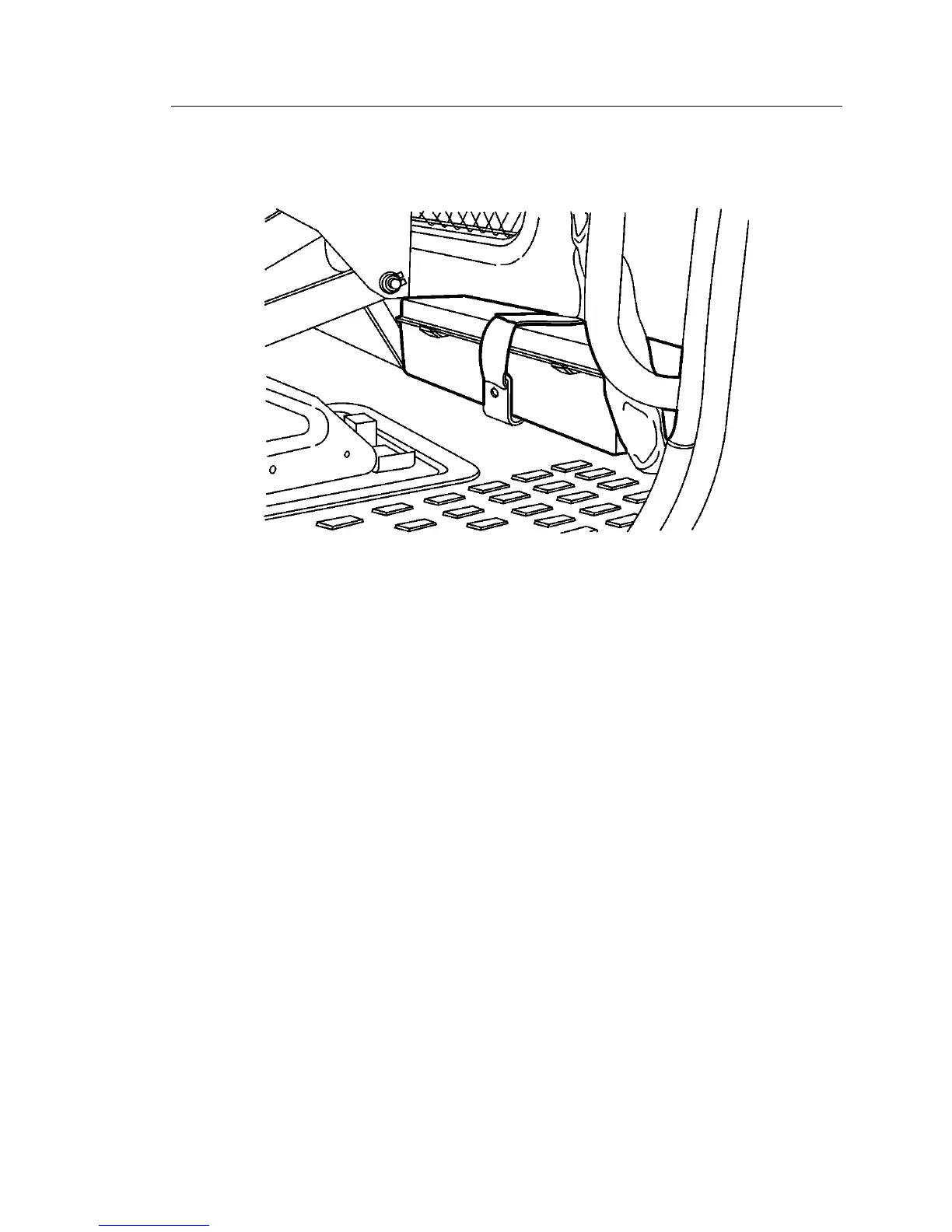

Thewarningtrianglesarestoredinaboxthatisstrappedbehindthepassengerseat.

W1000177
