40SAFETYINFORMATION

SAFETYEQUIPMENT

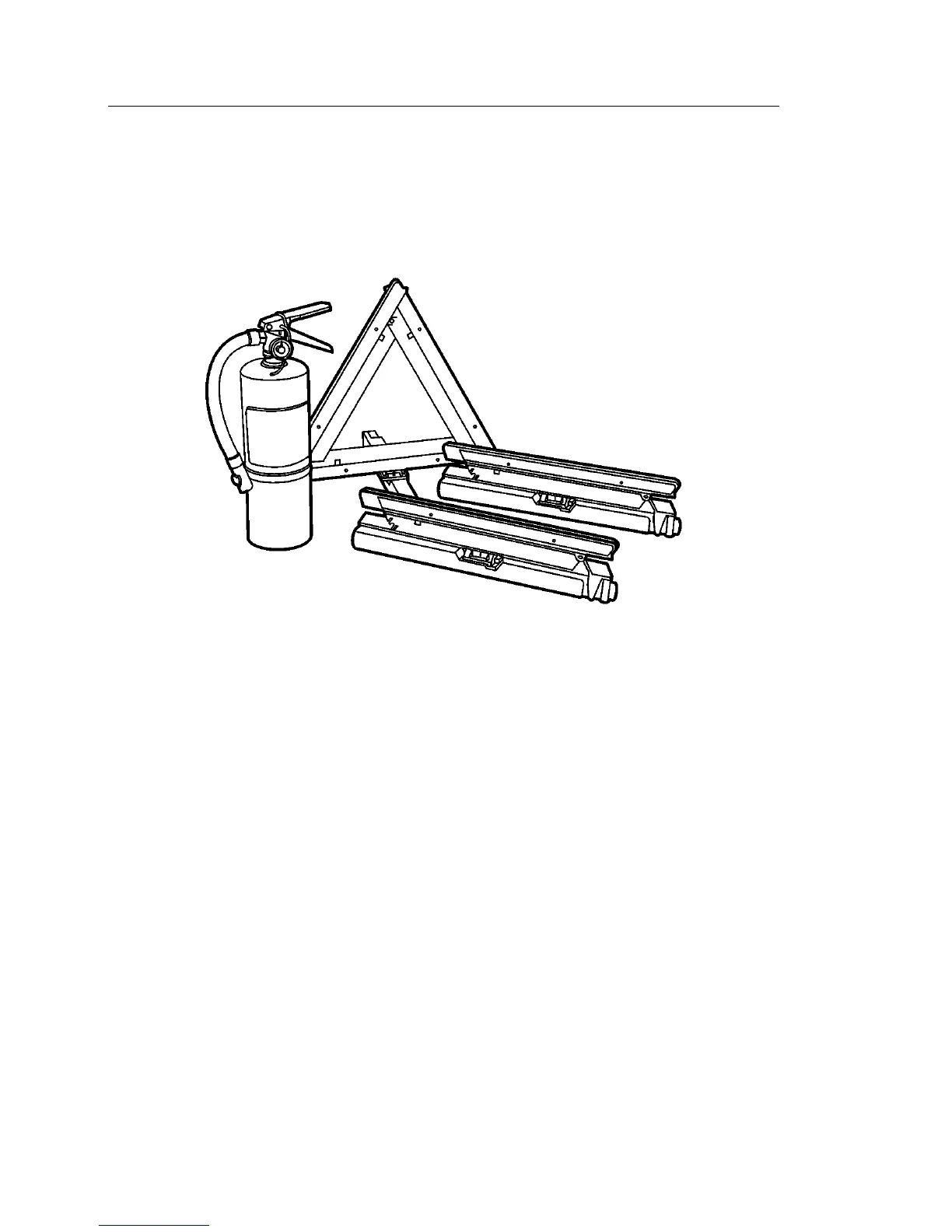

Safetytrianglesandreextinguishersareavailableasoptionalequipment.There

extinguishershouldbelocatedbythebaseofthedriverseat,betweentheseatand

thedoor.

W1000176

Note:Alwaysstorethewarningtrianglesintheboxafteruse.
