Volvo VN - Cab Interior; 52 Instruments and Controls

To Next Page

To Previous Page

52INSTRUMENTSANDCONTROLS

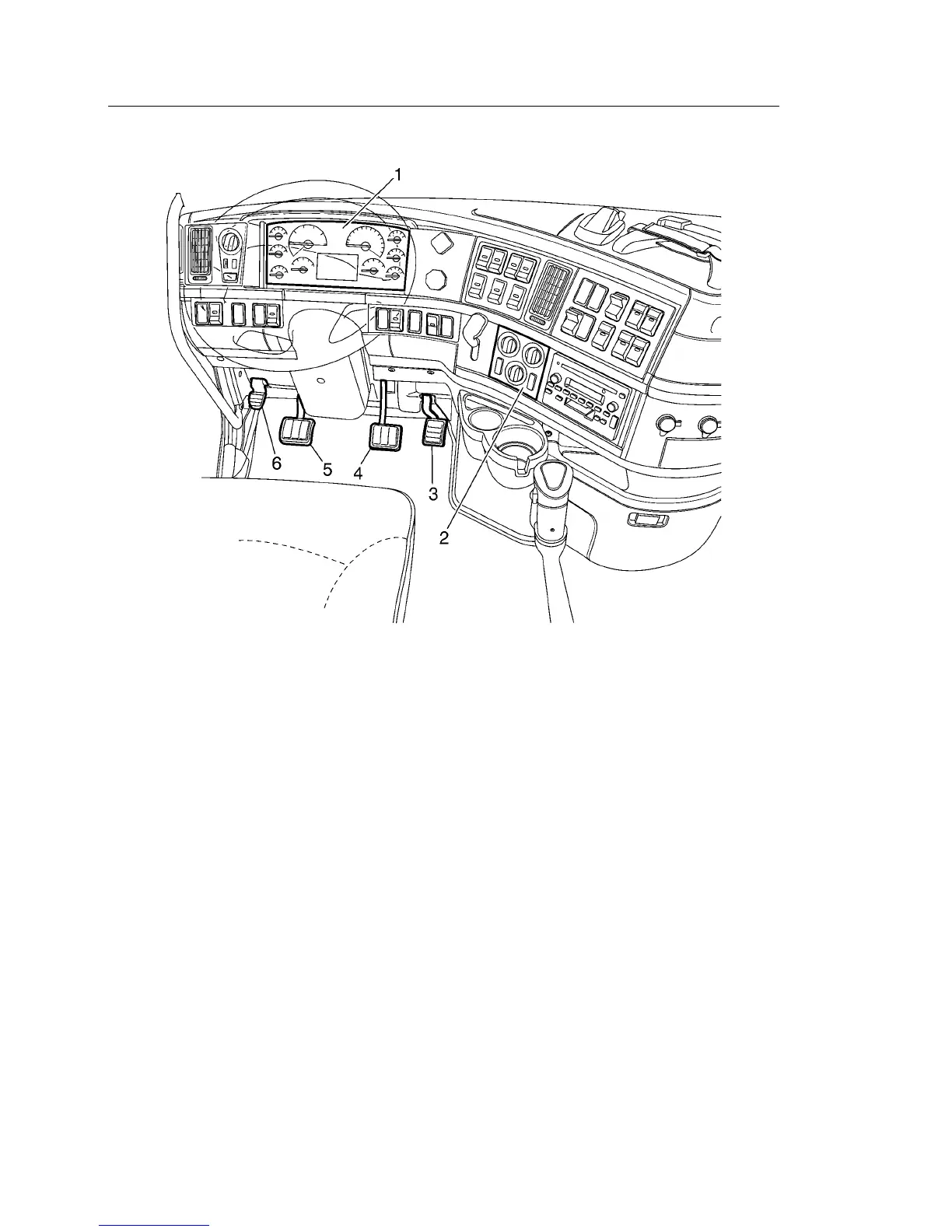

CABINTERIOR

W8003838

1InstrumentCluster

2CabClimateControlPanel

3AcceleratorPedal

4BrakePedal

5ClutchPedal(ifequipped)

6SteeringColumnTiltControlPedal
