282OPERATION

ParkingBrake/TrailerSupplyValves

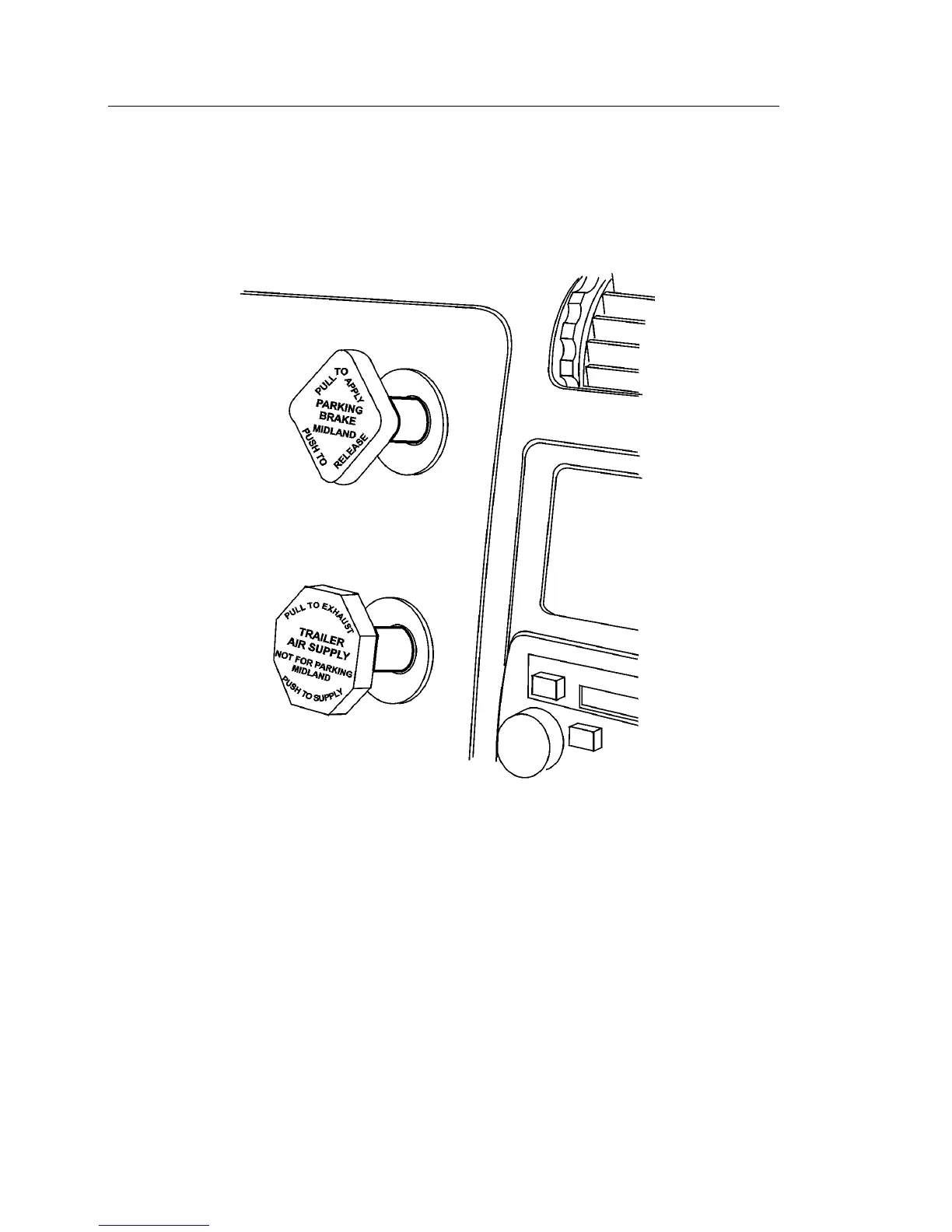

Trucks/Tractorsmayhavetwoaircontrolvalvesontheinstrumentpanel:

•TrailerSupply(redoctagonalknob)

•SystemPark(yellowdiamondknob)

W5001116

TheSystemParkvalveknob(yellow)shouldbepushedinrst,aftersufcientair

pressureisbuiltup(applyfootbraketopreventvehiclefromrolling).TheTrailerAir

Supplyvalveknobmaythenbepushedin.

TheTrailerAirSupplyvalveknobandSystemParkvalveknobwillautomatically

popoutifthesystempressure(bothfrontandrearcircuits)dropsto170to240kPa

(25to35psi).Thetractorprotectionvalvewillthenclose,thetractorspringbrakes

willapplyandthetraileremergencysystemwillbeactivated.
