OPERATION233

OperatingtheSafetyBelt

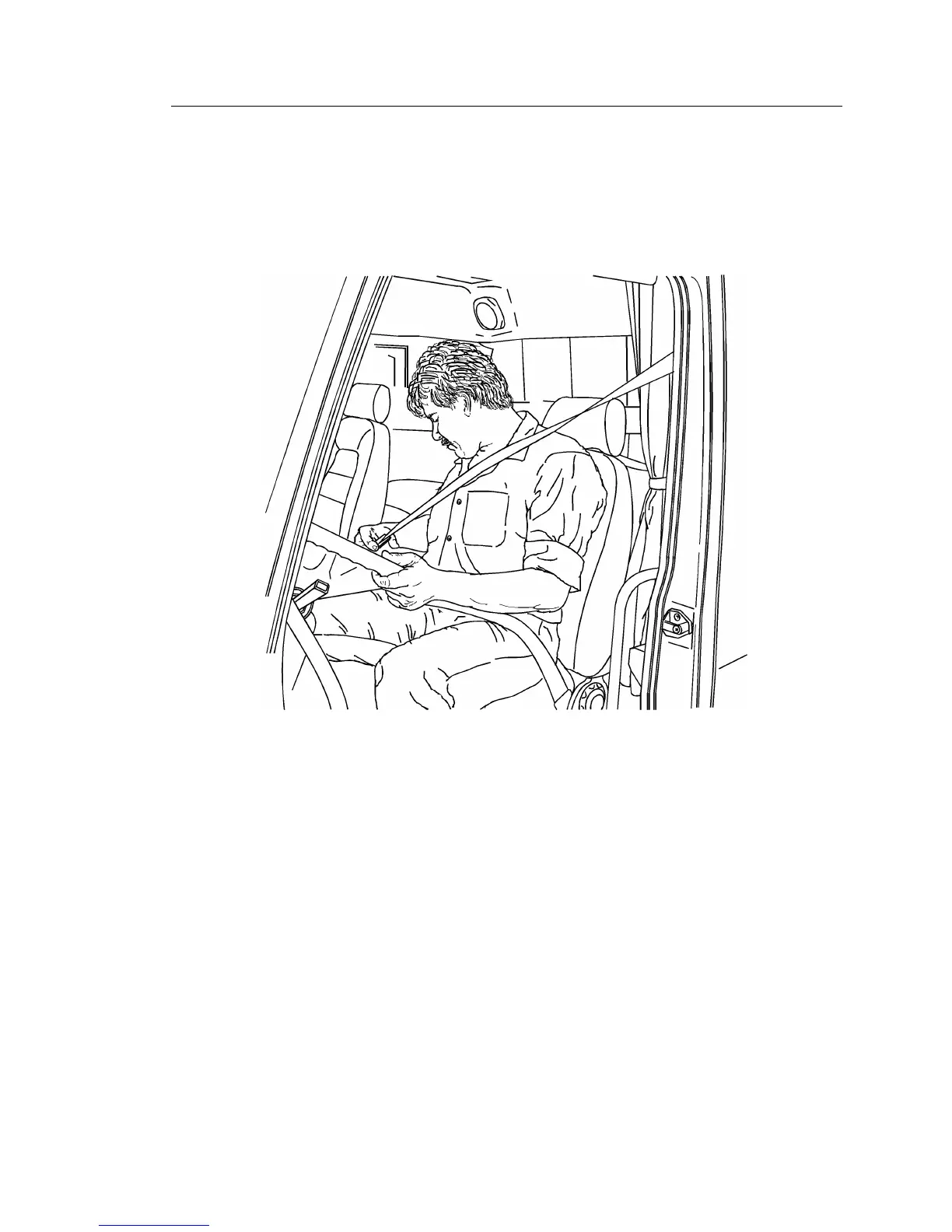

Tofastenthesafetybelt,pullthebeltoutfromtheretractorandinsertthelatchinto

thebuckle.Verifyproperlockofthelatchbypullingonthelatch.

Adjusttheslackbypullingonthetoppartofthebeltuntilthelowerpart,orthe

partthatcrossesthelap,isadjustedtot"snug."Releasethetoppartandletthe

retractorpullthebeltin.

W8001835

Thelapportionofthesafetybeltshouldbewornlowacrossthepelvicregion(hip

bone)andadjustedsnugly.Neveradjustthelapbeltacrosstheabdomen.Apush

buttononthebuckleisusedtoreleasethesafetybeltlatchbypushinginthebutton

releaseonthebuckle.
