256OPERATION

NationalToolboxSeat

Thetoolboxpassengerseathasanoptionalaccessibleornon-accessibletoolboxin

thebaseoftheseat.Ifthetoolboxisanoption,thestorageboxisaccessedbylifting

theseatcushionup.

Note:Thereisareleaselatchbehindtheseat.

W8003146

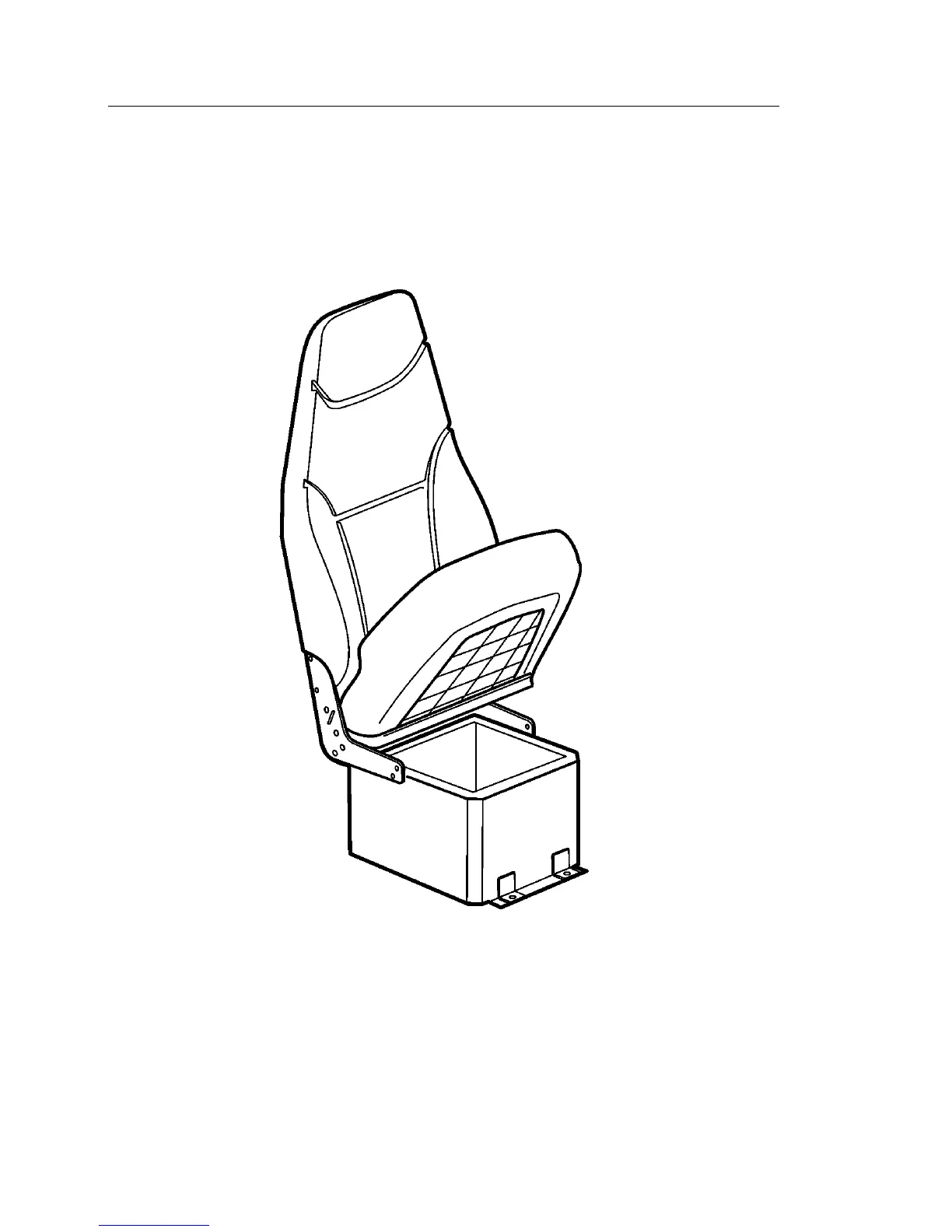

NationalToolboxSeat
