INSTRUMENTSANDCONTROLS143

W3005284

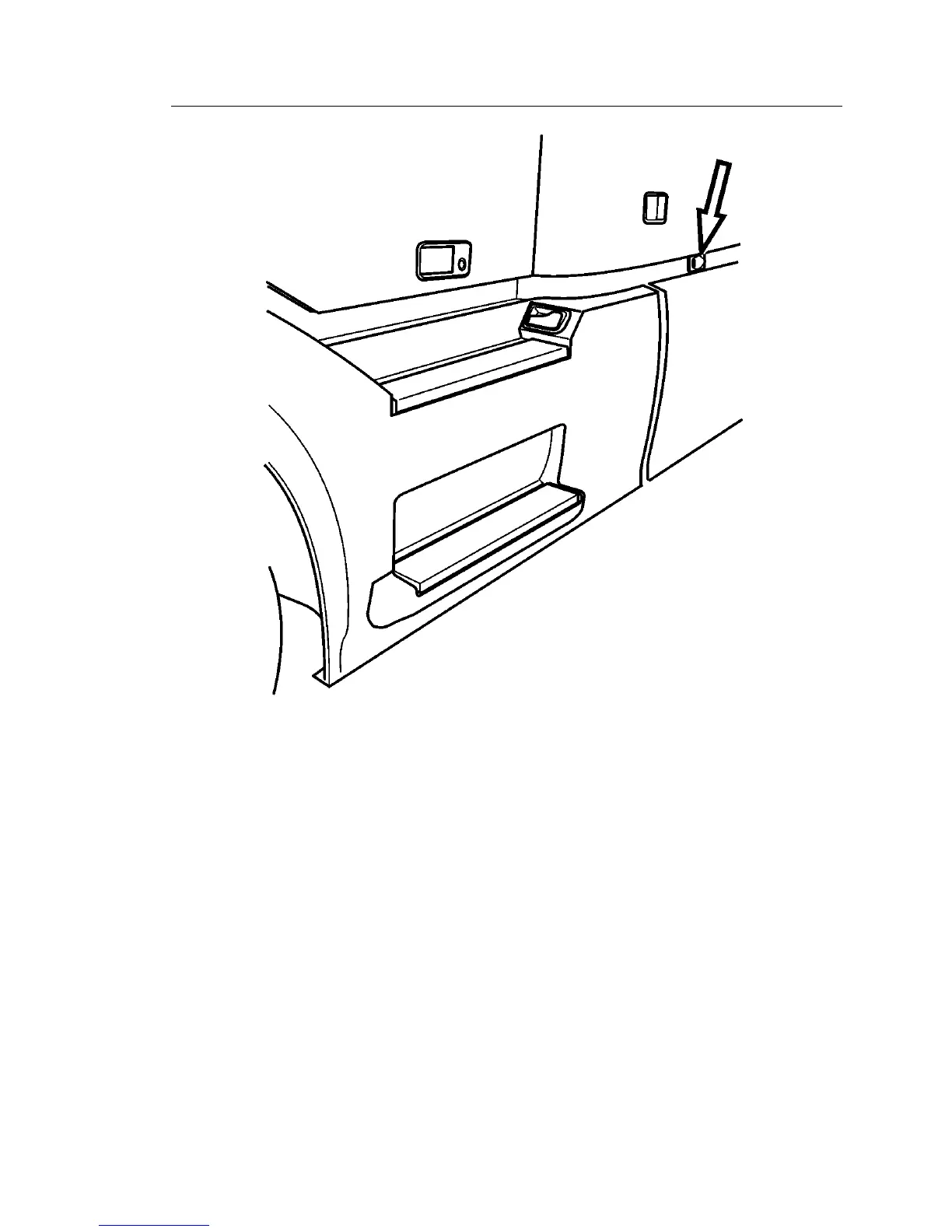

Powergoesthroughacircuitbreakerboxlocatedonthefrontwallinthedriverside

luggagecompartment.OntherightisanON/OFFswitchandontheleftistheground

faultcircuitinterrupter.Thecontrolsmayalsobereachedfrominsidethecabthrough

thehatchunderthemattressorcushion.
