INSTRUMENTSANDCONTROLS145

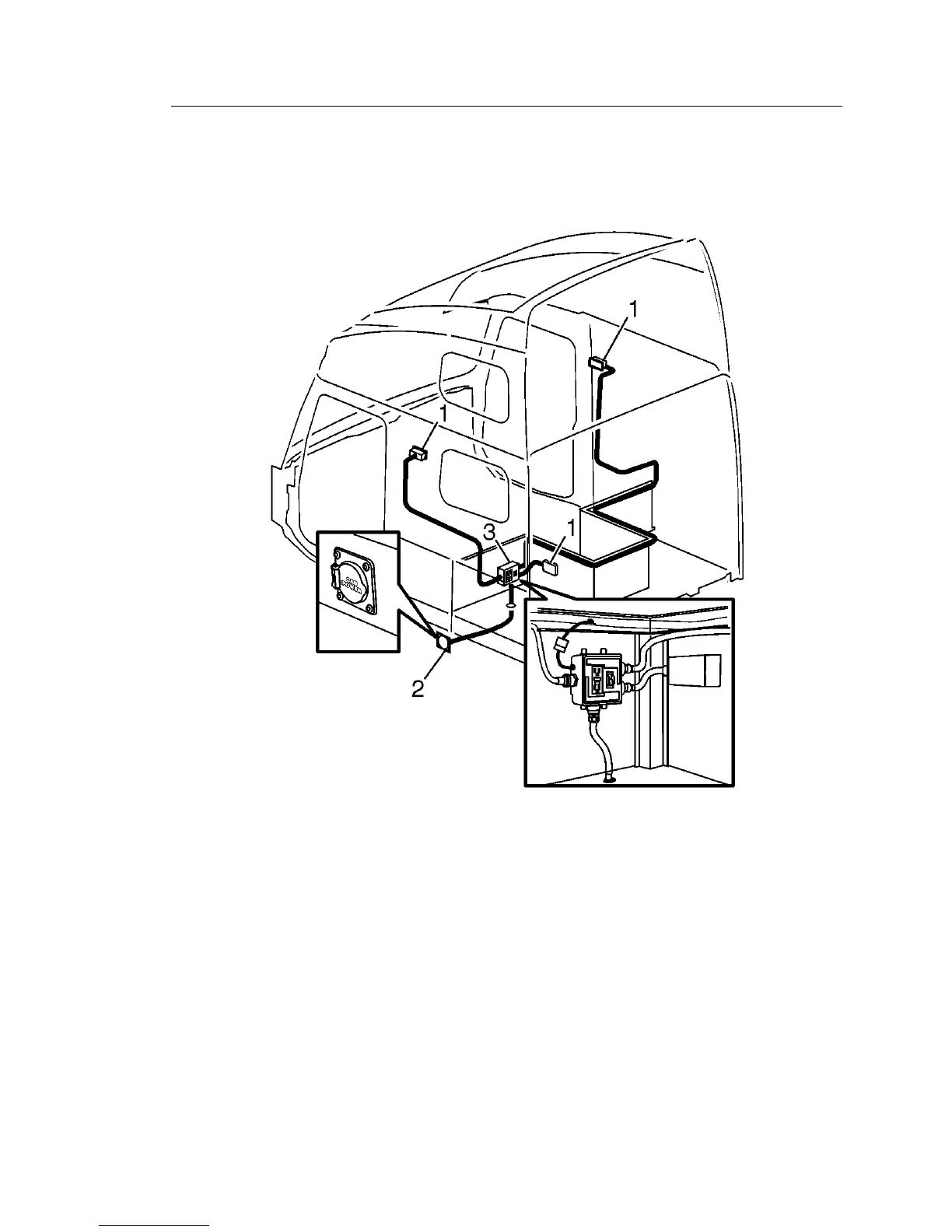

FromthebreakerboxintheVN780and730,powergoestothethreeoutletsasa

standardfeature.IntheVN670and630models,theoutletonthedriversidelower

bunkboxisstandard,andthetowercabinetmiddlecompartments(1)eachhave

anoptionaloutlet.

W3005340

1120V oltOutlet

2External120V oltReceptacle

3CircuitBreakerBox
