172INSTRUMENTSANDCONTROLS

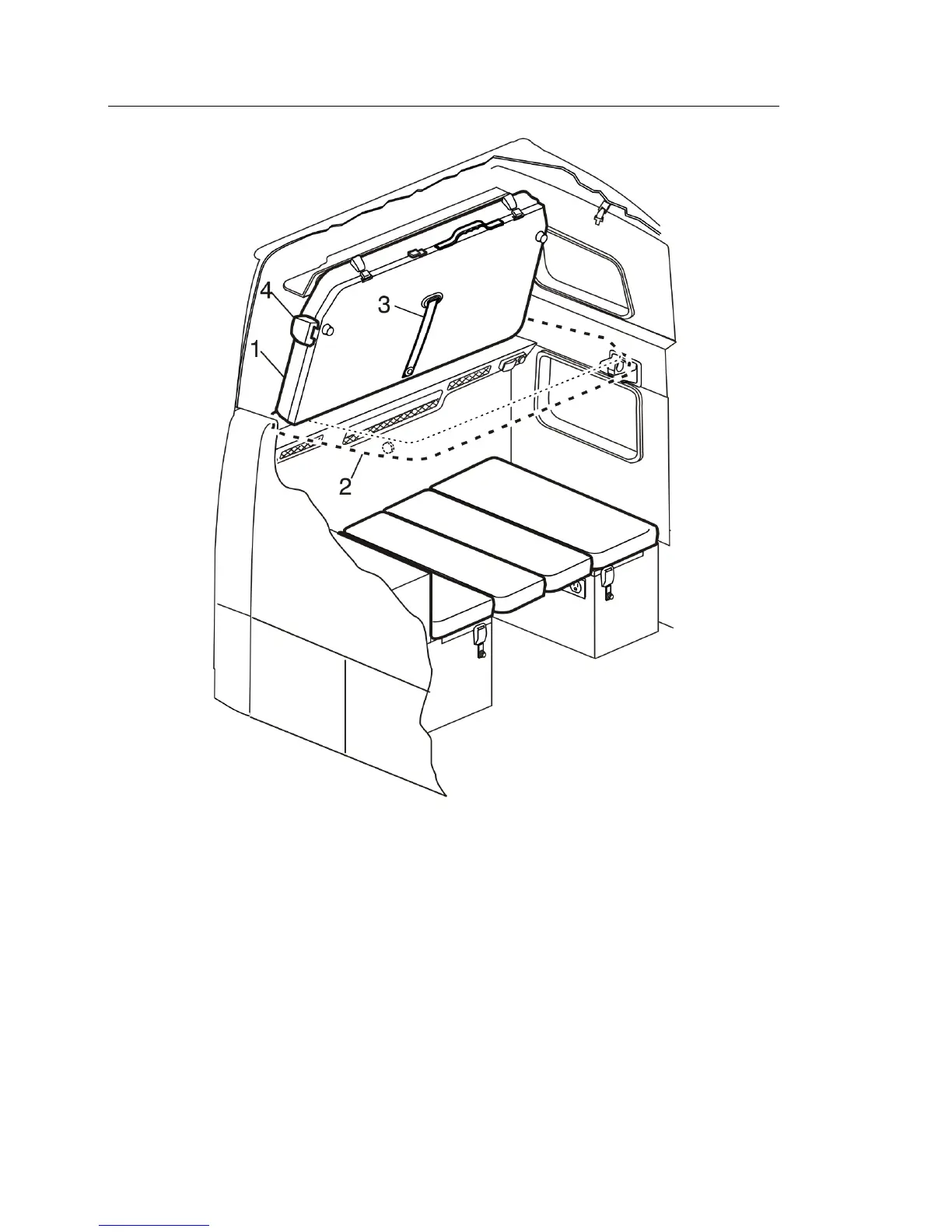

W8028491

1UpperBunk

2UpperBunkinLoweredPosition

3Release/PullStrap

4UpperBunkinRaisedPosition
