INSTRUMENTSANDCONTROLS183

W8028531

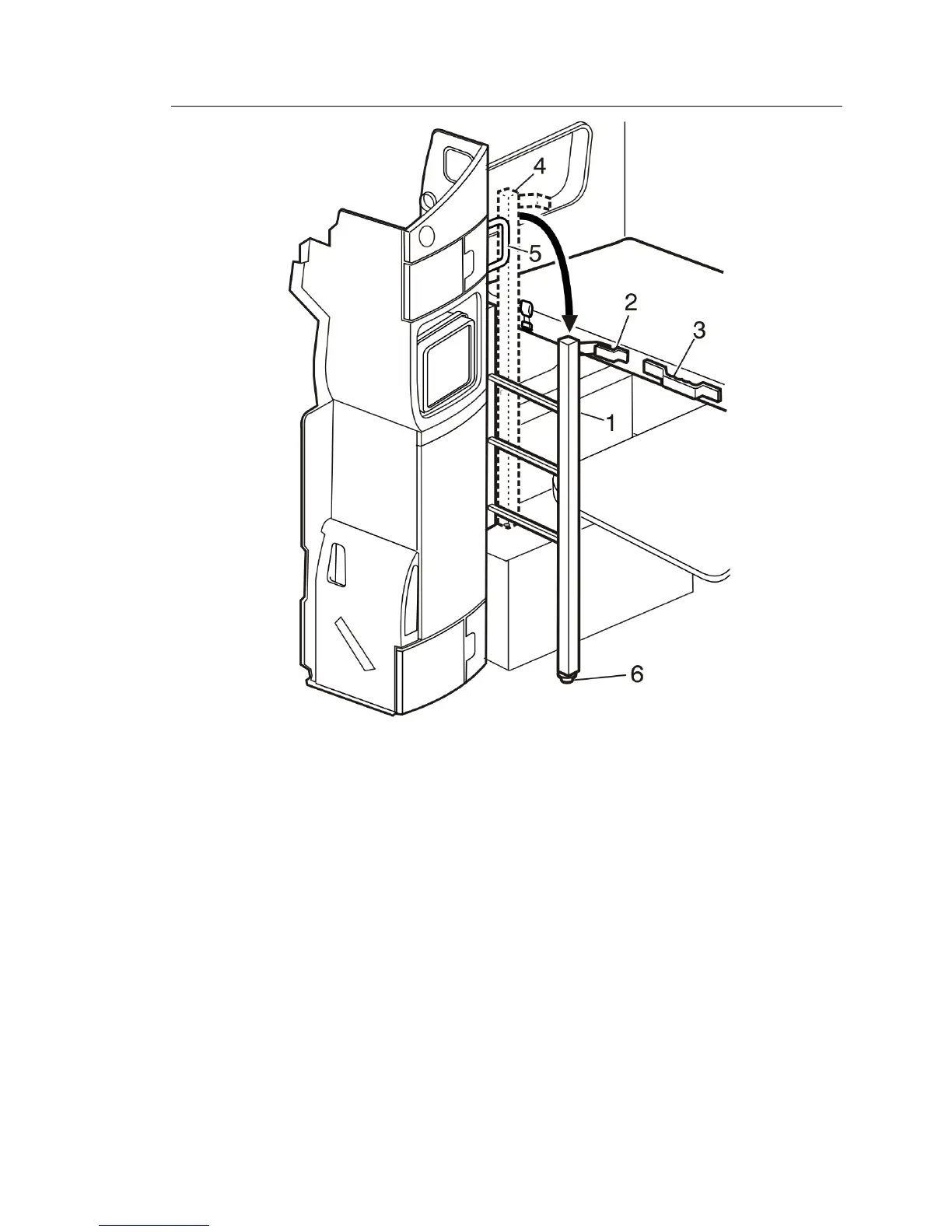

1.Ladderin

DownPosition

2.Retainer

3.GrabHandle

(onOptional

FixedBunk,

GrabHandleis

NotAvailable)

4.Ladder(Stored)

5.CabinetGrab

Handle

6.LadderSecurity

Positioning
