OPERATION277

W3006936

W3006937

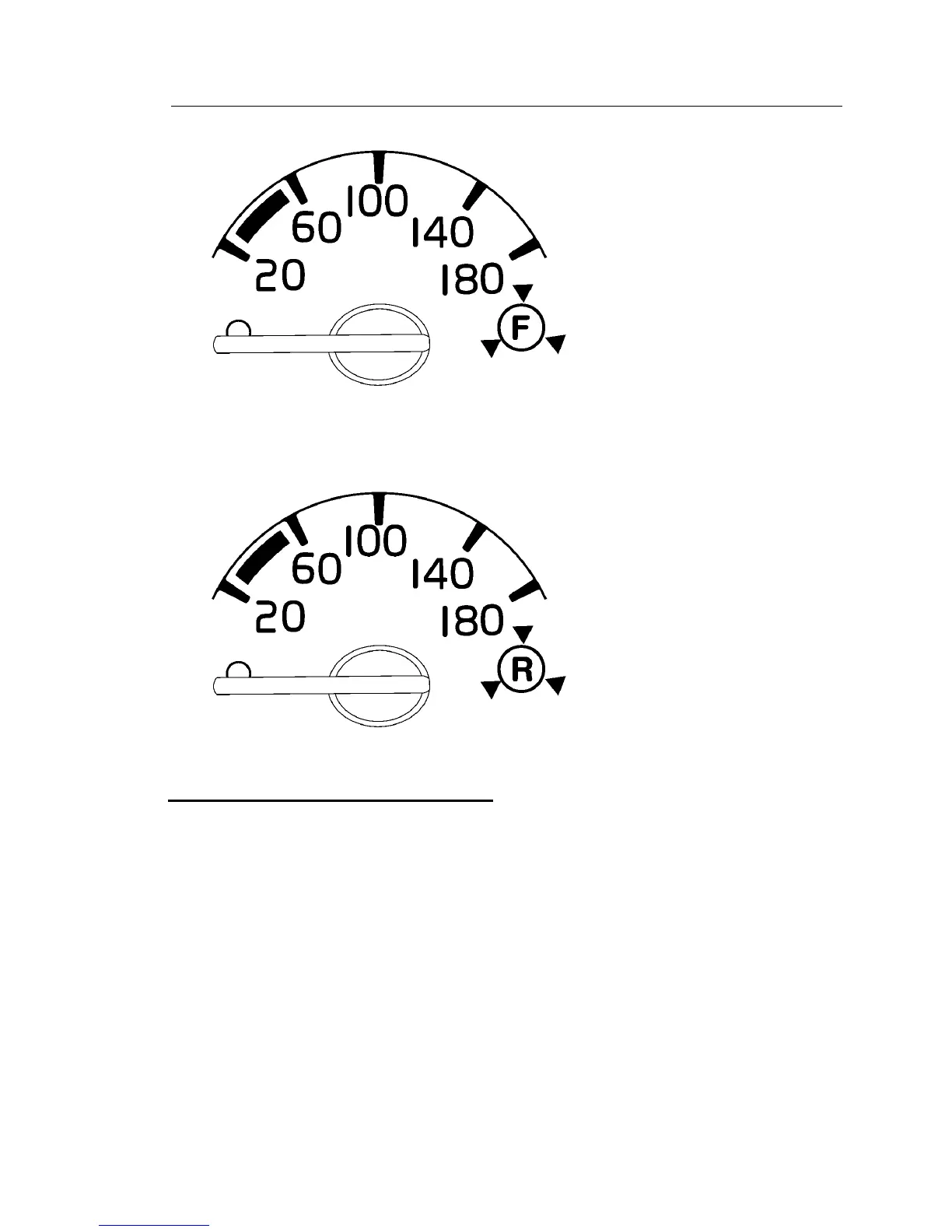

Gauge1andGauge2

Beforeoperatingthevehicle,checktheairgaugeswhichindicateairpressure.They

shouldnotregisterlessthan420kPa(65psi).
