318OPERATION

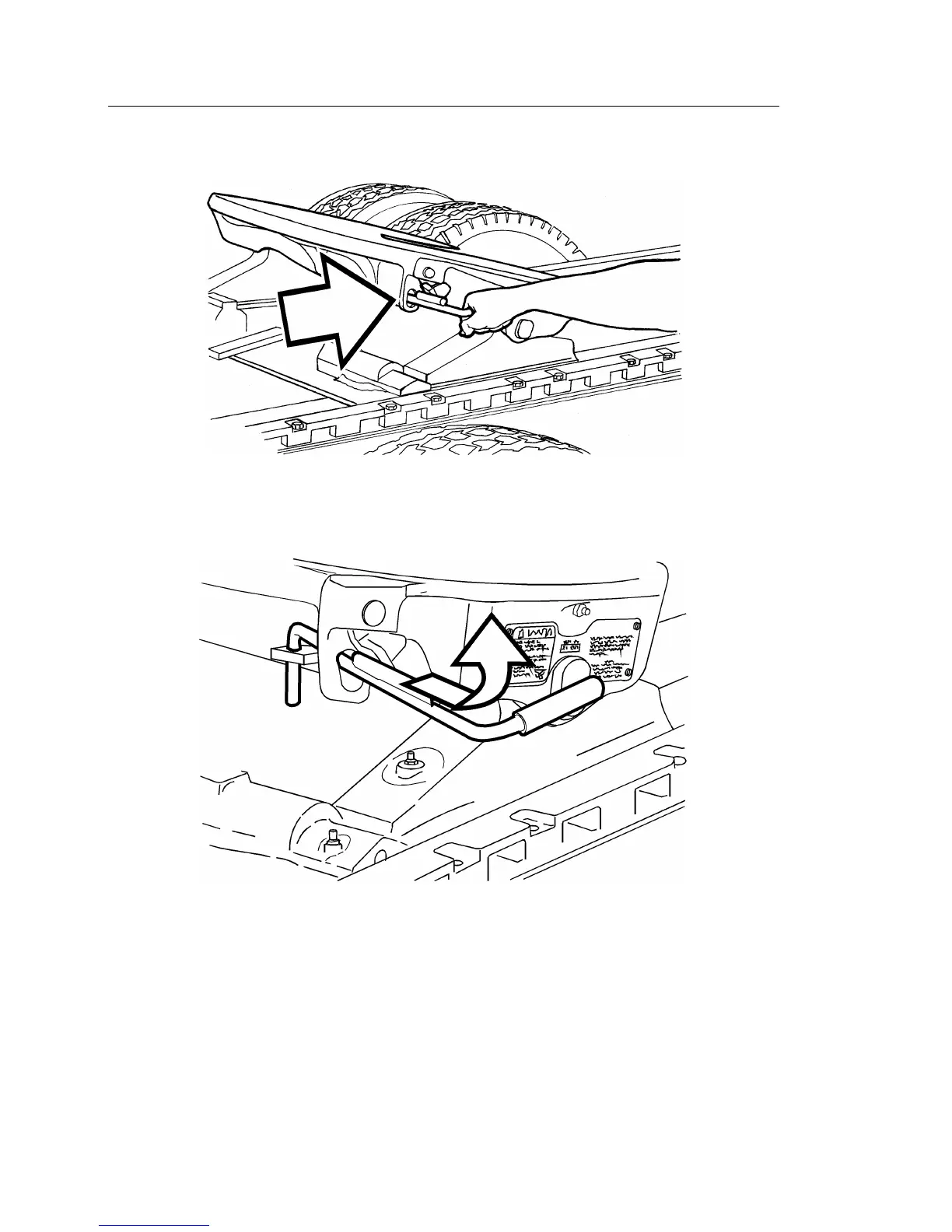

Usingaslightupwardmotion,pulltheoperatingrodoutuntiltheoperatingrod

shoulderisoutsidethefthwheeloperatingslot.

W9000202

Whentheshoulderoftheoperatingrodisoutsideoftheoperatingslot,raisethe

operatingrodhandletoitsmaximumupwardposition.

W9000242
