66INSTRUMENTSANDCONTROLS

W3005171

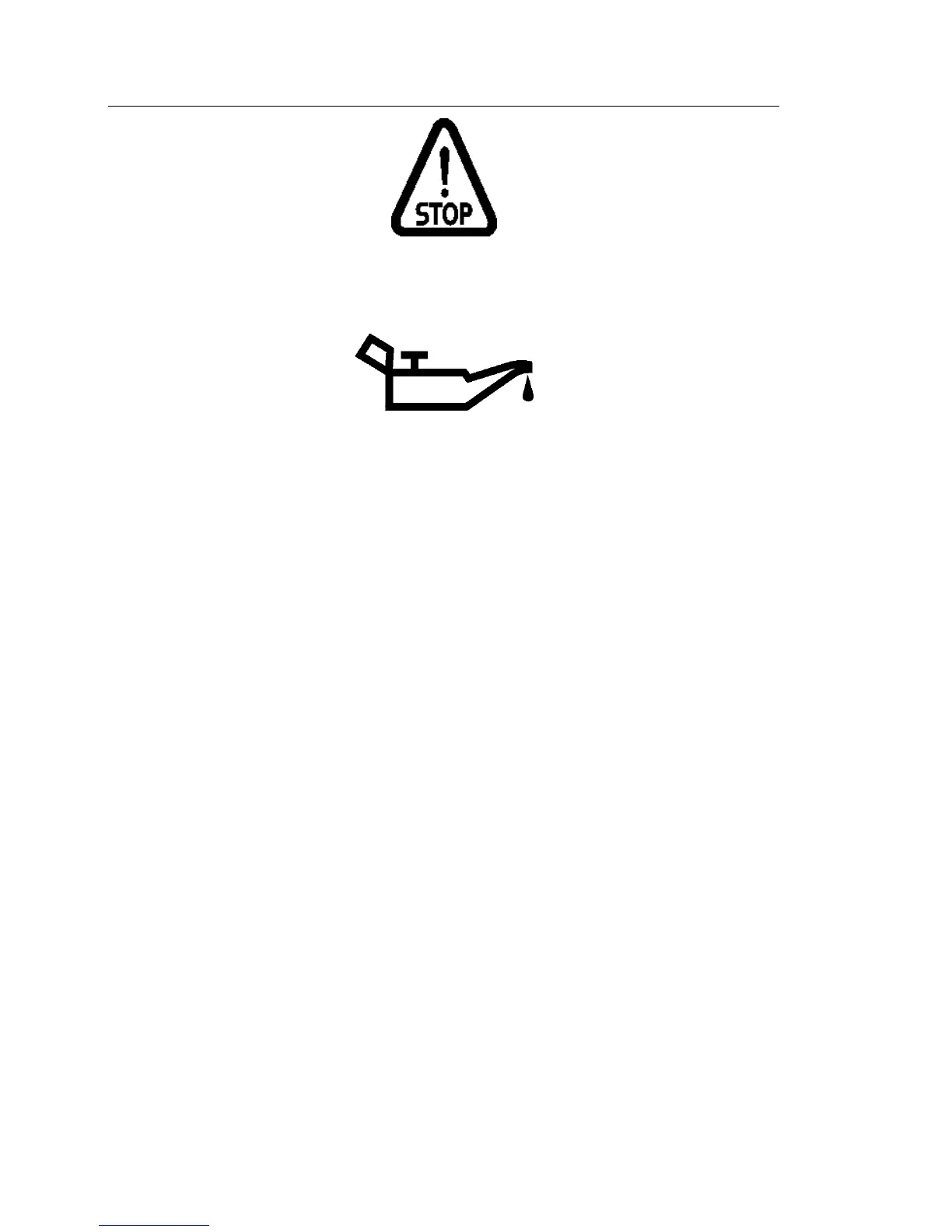

StopTell-Tale

W3003613

OilPressureSymbol

Note:Theenginewillshutdownwithin30secondsfromwhentheredSTOPtell-tale

comeson.Pullofftheroadassoonaspossiblewithoutcreatingasafetyhazard.
