74INSTRUMENTSANDCONTROLS

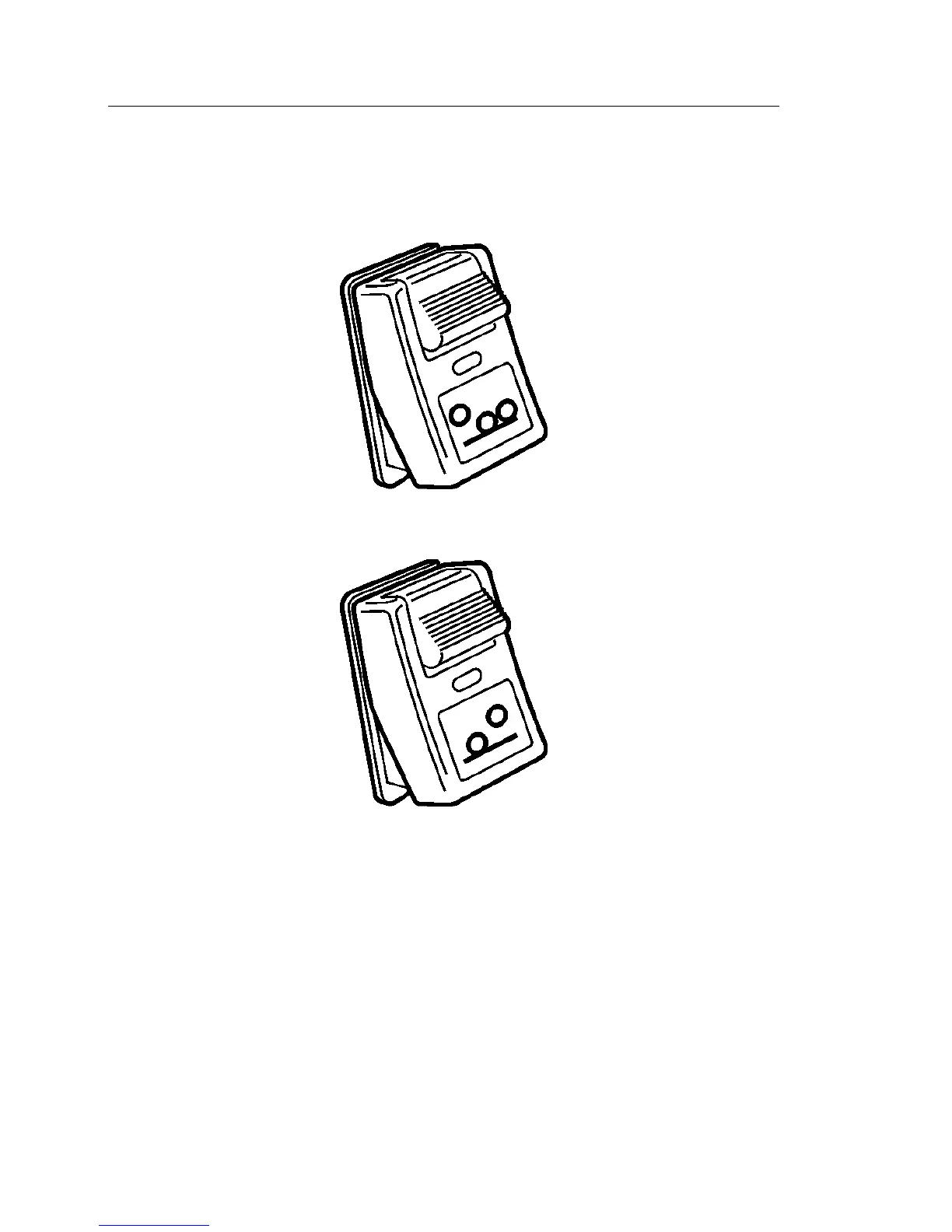

LiftAxle

Thevehiclemaybeequippedwithauxiliaryliftaxles.Theliftmechanismoperates

withairpressure.Pressthetoppartoftheswitchtoraisetheaxleandpressthe

lowerpartoftheswitchtolowertheaxle.Forinformationaboutliftaxles,refer

to“AXLES”,page342.

W3005503

PusherAxle

W3005507

TagAxle
