76INSTRUMENTSANDCONTROLS

W3005507

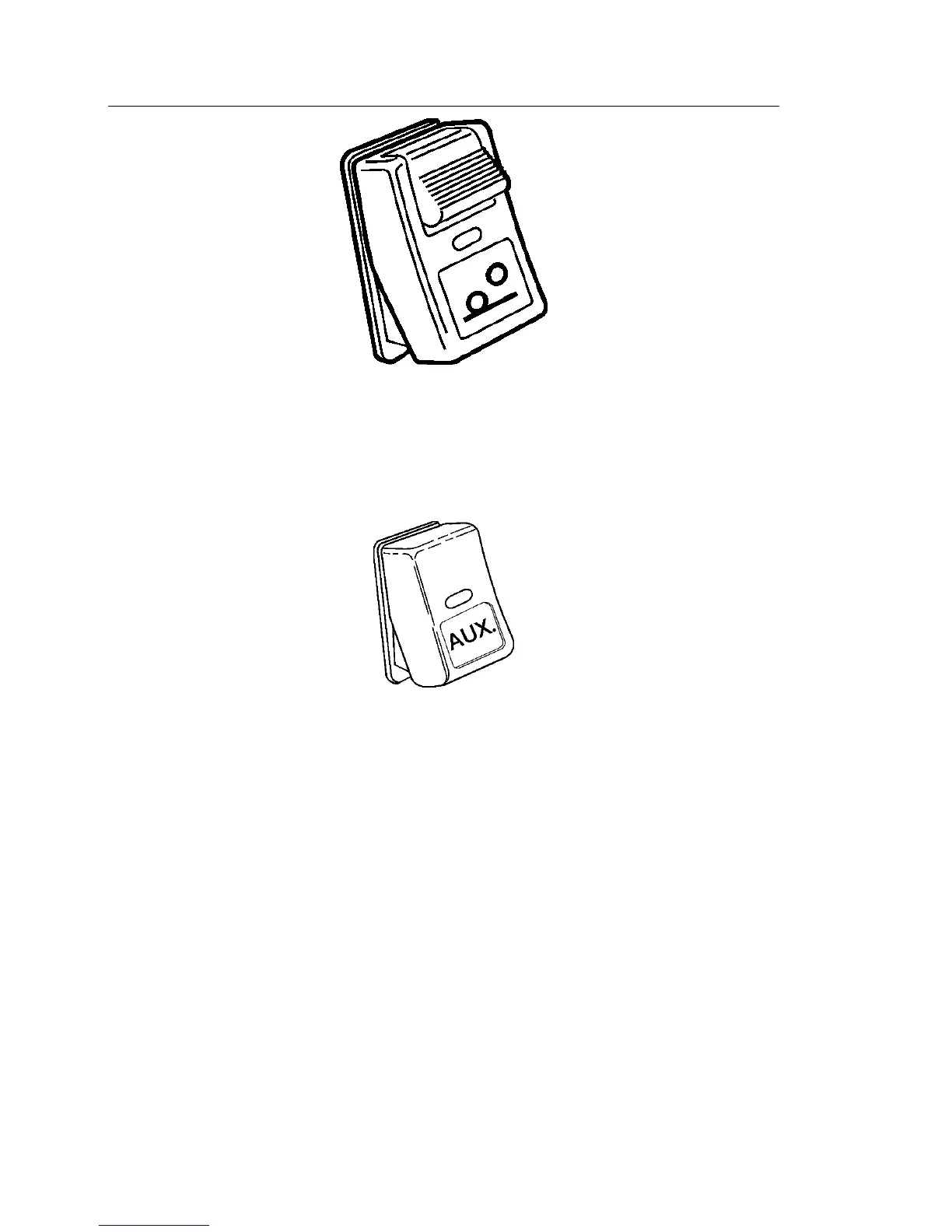

TagAxle

AuxiliarySwitches

Genericswitchesareavailableforauxiliaryfunctionsthatareinstalledbythe

customer.TheseswitchescanbepurchasedfromyourauthorizedV olvoTruckdealer.

W3005502

AuxiliarySwitch
