Volvo XC70 2012 - Wiper;Washer Rear Window

To Next Page

To Previous Page

TP 39217202 XC70(08-) & S80(07-) 2012 126

RD-GY

GY-BN

30+

RD-BK

RD-GY

11A/1

15/31

4/56

11A/2

C2:64

C5:1

CAN

CEM

LIN

15/32

RA2

2/16

C2:4

74/602

31/47

73/5105

73/6001

GY-BU

VT-GN

BK-OG

BK-OGBK-OG

6/32

RD-BU

C5:2

BK-OG

3/130

GN-BK

C3:48

C1:7

LIN

SWM

18/4

WIPER

TURN

G042533

Group 36 Additional electrical equipment

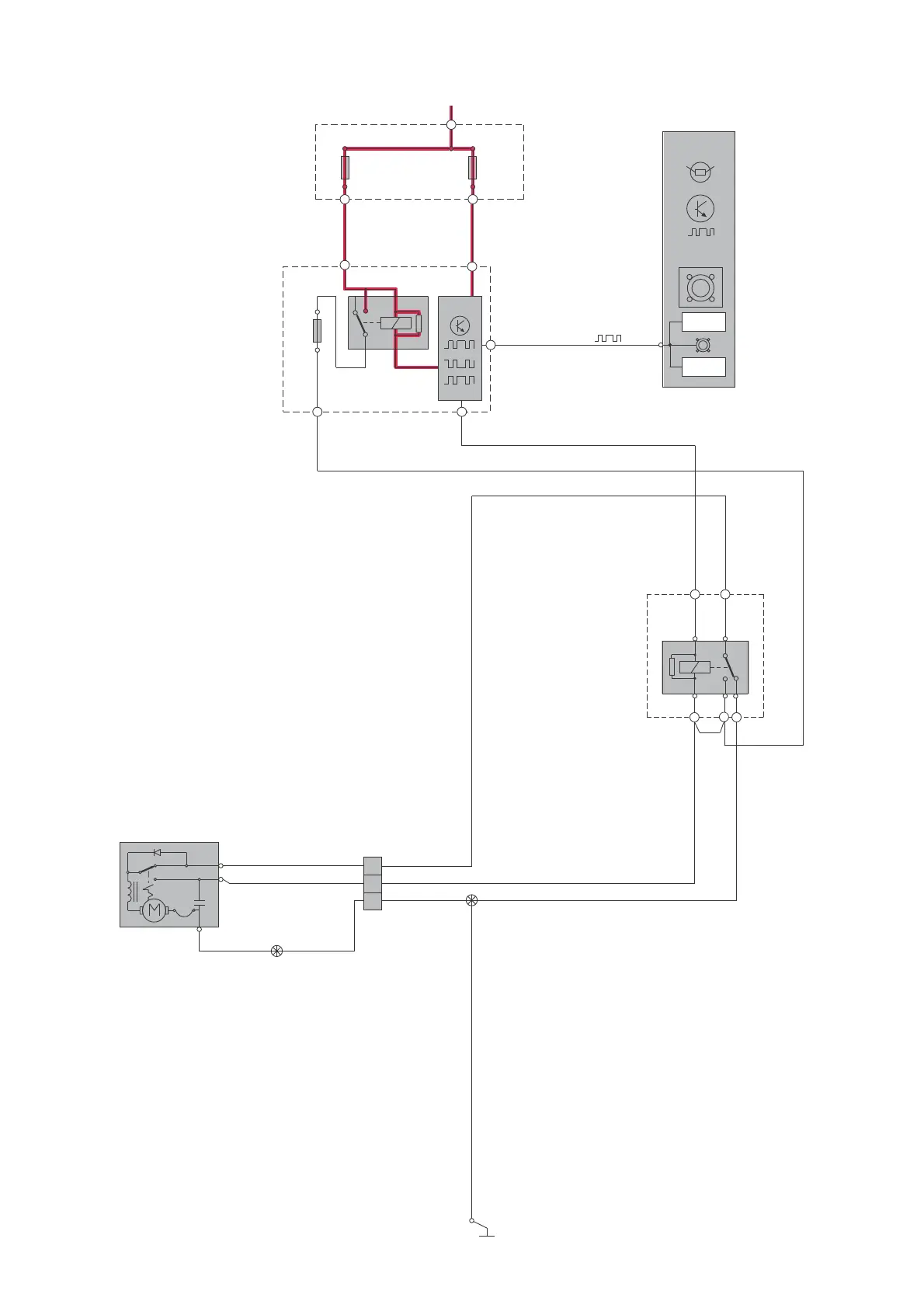

Wiper/Washer rear window
