TP 39217202 XC70(08-) & S80(07-) 2012 30
Fuses

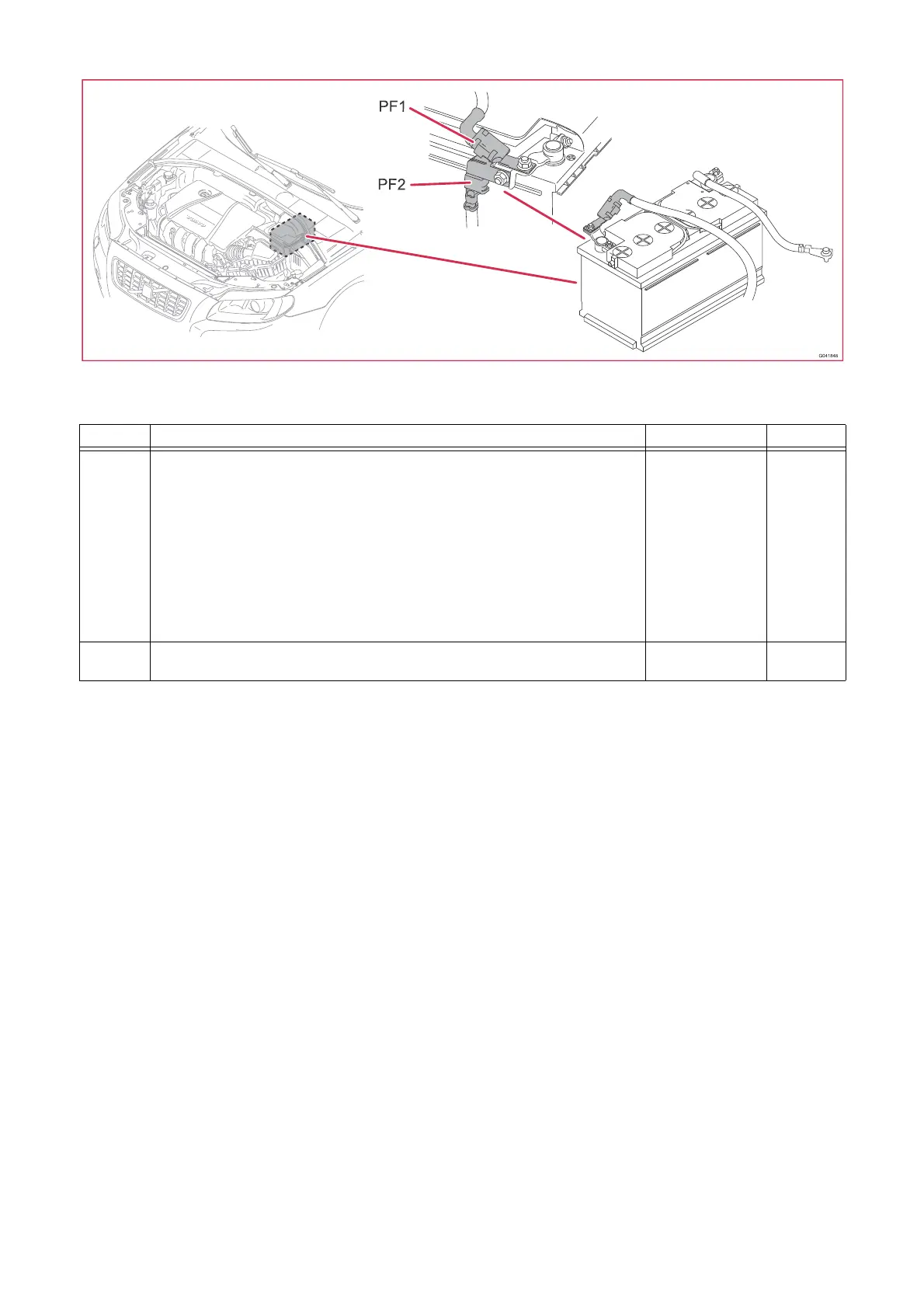

Battery PF1-PF2
1/1 Battery
No. Fuse function via A
PF1 11A/1-11A/7 Fuses in the engine compartment distribution box
11B/8-11B/14 Fuses in the engine compartment distribution box
11B/16-11B/22 Fuses in the engine compartment distribution box
11B/23 Fuses in the engine compartment distribution box
11B/27-11B/32 Fuses in the engine compartment distribution box
11B/33 Fuses in the engine compartment distribution box
11B/34 Fuses in the engine compartment distribution box
11B/35-11B/41 Fuses in the engine compartment distribution box
11A/42-11A/44 Fuses in the engine compartment distribution box
15/37 Distribution box cold zone in engine compartment,
Start/Stop function
-
-
2/31
-
-
2/32
-
2/32
-
-
150
PF2 6/25 Starter motor
6/26 Alternator Control Module (ACM)
-
-
150
