TP 39217202 XC70(08-) & S80(07-) 2012 26
Fuses

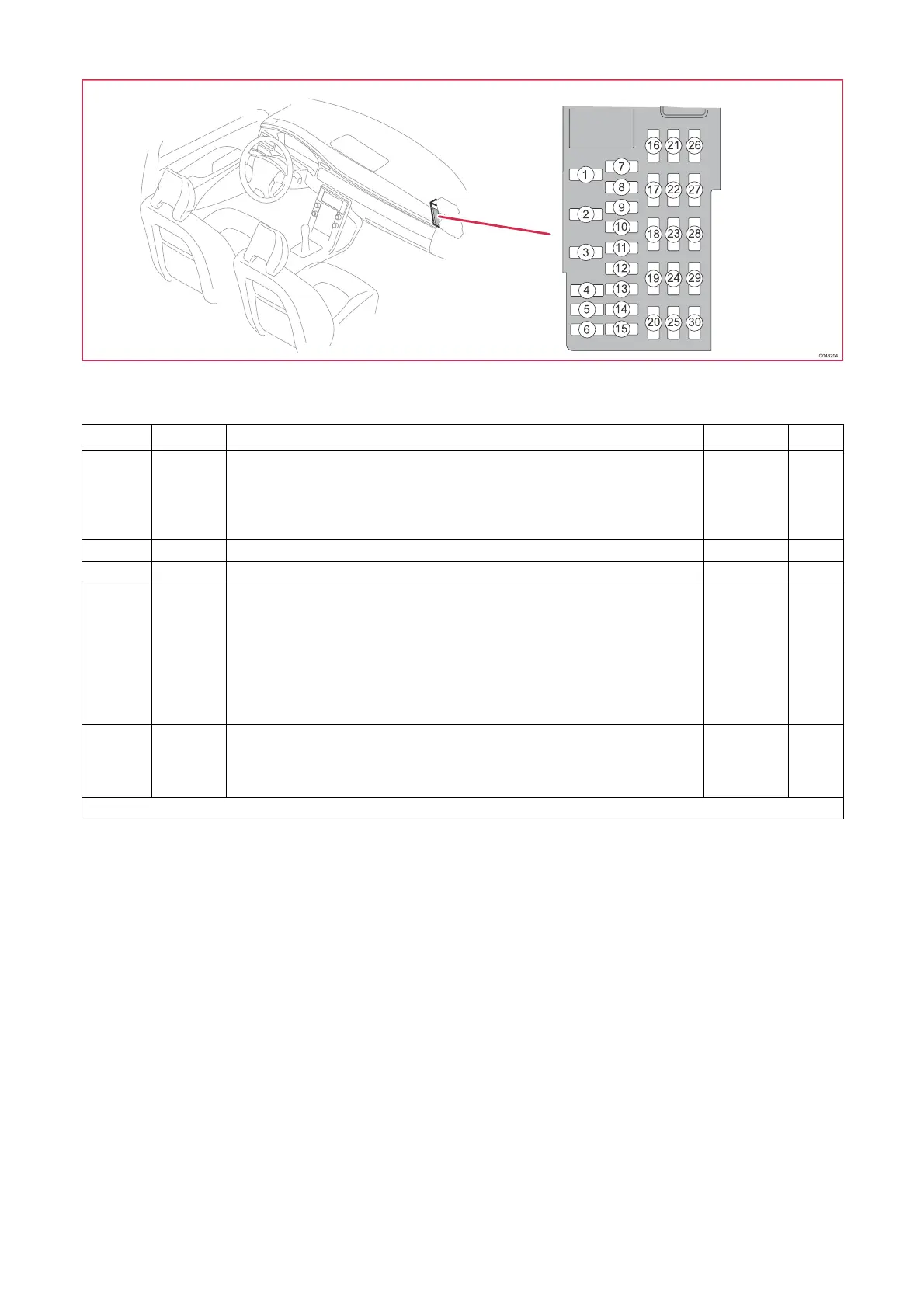

Distribution box in passenger compartment F18 - F22
15/36 Distribution box in passenger compartment
No. No. Fuse function via A
F18 11C/18 3/281 Infotainment Control Module (ICM)
4/124 Accessory USB unit (AUU)
16/1 Integrated Audio Module (IAM)
16/159 Control module, cellular phone handsfree
11/1 Fuse in extra fuse holder, passenger compartment
-
-
-
-
-
15
F19 11C/19 16/60 Phone Module (PHM) - 5
F20 11C/20 16/109 DVD Player/control module - 5
F21 11C/21 4/33 Sunroof Module (SRM)
6/48 Damper Motor Module (DMM), recirculation
6/95 Damper Motor Module (DMM), temperature, left side
6/96 Damper Motor Module (DMM), temperature, right side
6/102 Damper Motor Module (DMM), defroster
6/103 Damper Motor Module (DMM), floor/ventilation
7/159 Air Quality Sensor (AQS)
10/22 Ceiling light
-
-
-
-
-
-
-
4/56
5
F22 11C/22 9/1 Outlet 12V front
9/25 Outlet 12V rear
16/45 Portable navigation system
16/109 DVD player/control module
-
-
-
-
15
