Fuses

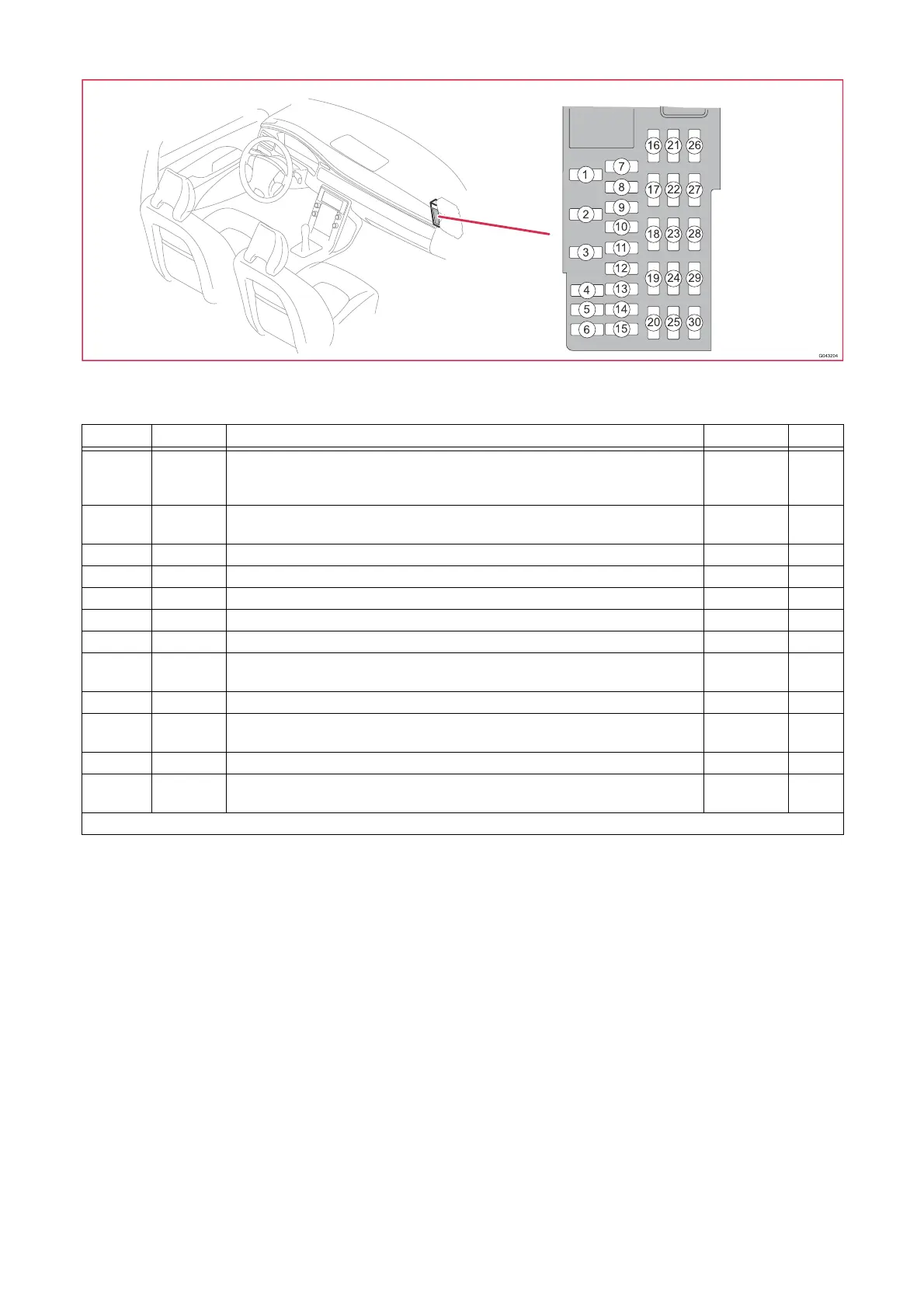

Distribution box in passenger compartment F1 - F17
15/36 Distribution box in passenger compartment
No. No. Fuse function via A
F1 11C/1 11C/16-19 Fuses in distribution box passenger compartment
16/79 Subwoofer Module (SUB), V70
16/105 Audio module (AUD)
-40
F7 11C/7 17/19 12 V outlet, cargo compartment
9/24 Refrigeration box
-
2/141
15
F8 11C/8 3/126 Driver Door Module (DDM) - 25
F9 11C/9 3/127 Passenger Door Module (PDM) - 25
F10 11C/10 3/129 Right rear door module (RDM) - 25
F11 11C/11 3/128 Left rear door module (LDM) - 25
F12 11C/12 4/93 Keyless Vehicle Module (KVM) - 20
F13 11C/13 3/26 Switch unit, power driver’s seat
4/52 Power Seat Module (PSM)
-
-
20
F14 11C/14 3/27 Switch unit, power passenger seat - 20
F15 11C/15 8/59 Rear left head restraint solenoid
8/60 Rear right head restraint solenoid
2/75
2/75
15
F16 11C/16 3/281 Infotainment Control Module (ICM) - 15
F17 11C/17 16/145 Remote Digital Audio Receiver (RDAR)
16/162 Digital Audio Broadcast Module (DABM)
-
-
10
continues
