TP 39217202 XC70(08-) & S80(07-) 2012 17
Fuses

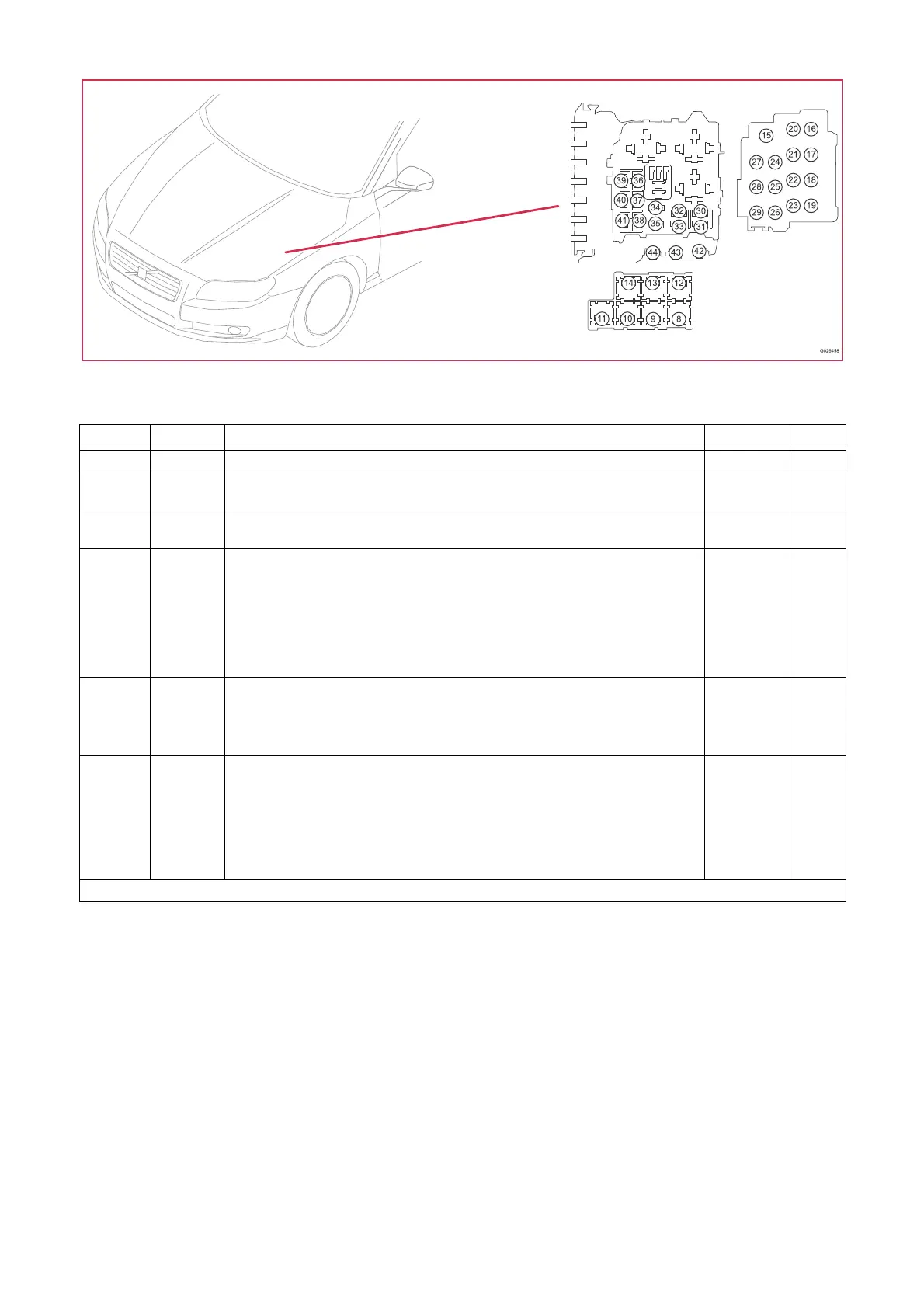

Distribution box in engine compartment F32-F37
15/31 Distribution box in engine compartment
No. No. Fuse function via A
F32 11B/32 8/3 Electromagnetic clutch, climate control system 2/22 15
F33 11B/33 2/22 Relay, climate control system
2/239 Relay coolant pump.
-
-
5
F34 11B/34 6/25 Starter motor
4/46 Engine Control Module (ECM)
2/35
2/35
30
F35 11B/35 4/109 Glow plug control module
8/82 Injector
8/111 Control valve fuel flow
20/3-8 Spark plug with ignition coil, 5- & 6-Cyl.
20/16 Capacitor 6-Cyl.
-
-
-
-
-
20
4/109 Control module glow plug, 5-Cyl. Diesel
20/3-6 Spark plug with ignition coil, 4-Cyl.
-
-
10
F36 11B/36 4/46 Engine Control Module (ECM), 4-, 5-, 6-Cyl.
6/120 Throttle unit
-
4/46
10
4/46 Engine Control Module (ECM), 5-Cyl. Diesel
6/120 Throttle unit, 5-Cyl. Diesel
-
4/46
15
F37 11B/37 4/46 Engine Control Module (ECM), 6-Cyl.
8/6-11 Injection valves
8/98 Control valve fuel pressure, Diesel
8/111 Control valve fuel flow, 5-Cyl. Diesel
8/115 Injector
8/116 Injector
7/17 Mass airflow sensor (MAF)
-
-
-
-
-
-
-
15
