TP 39217202 XC70(08-) & S80(07-) 2012 268

I05209

4/46A

73/3050

73/3014

73/3015

73/3012

73/3131

73/3085

74/301

73/3068

31/XX10

73/3094

4/46B

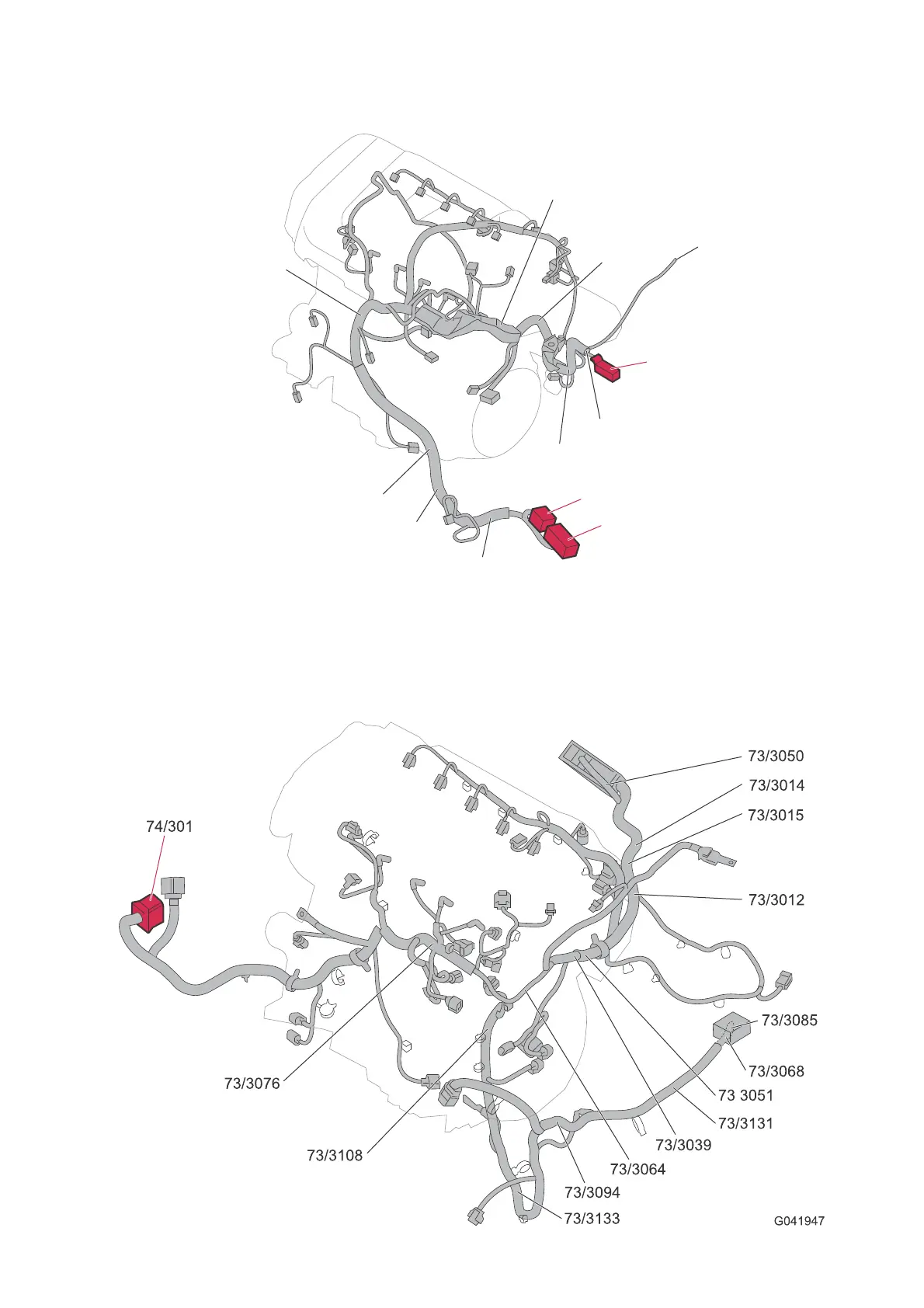

Cable harness routing in vehicle

Harness engine, 2.0l Diesel

Cable harness routing in vehicle

Harness engine, 2.4l Diesel

Table of Contents

Default Chapter2
- Vehicles with SRS (Airbag)/Sips Bag/IC (Inflatable Curtain)2
- Table of Contents3
- Explanations6
- How to Use the Wiring Diagrams 1:27
- Overview Without Start/Stop Function9
- Overview with Start/Stop Function10
Electrical Distribution11
- Overview, Distribution Box in Engine Compartment11
- Overview, Distribution Box in Passenger Compartment12
- Overview, Distribution Box in Cargo Compartment13
Fuses14
- Distribution Box in Engine Compartment F1-F714
- Distribution Box in Engine Compartment F8-F2115
- Distribution Box in Engine Compartment F22-F3116
- Distribution Box in Engine Compartment F32-F3717
- Distribution Box in Engine Compartment F3818
- Distribution Box in Engine Compartment F38-F3919
- Distribution Box in Engine Compartment F39-F4420
- Central Electronic Module (CEM) F1-F321
- Central Electronic Module (CEM) F4-F1922
- Central Electronic Module (CEM) F20-F2423
- Passenger Compartment24
- Distribution Box in Passenger Compartment F1 - F1726
- Distribution Box in Passenger Compartment F18 - F2226
- Distribution Box in Passenger Compartment F25 - F3027
- Distribution Box in Cargo Compartment FA1-FA1128
- Distribution Box in Engine Compartment, Cold Zone29
- Battery PF1-PF230
Relays31
- Relays in the Engine Compartment31
- Relays in Passenger Compartment32
- Relays in Cargo Compartment33
- Central Electronic Module (CEM)34
Ground Connections35
- Overview35
- 31/117 - 31/Trm42
- 31/Infot - 31/Al43
- Overview Locations44
Control Modules45
- Overview Designations45
- Tp 39217202 Xc70(08-) & S80(07-)45
- Central Electronic Module (CEM) 1:346
- Data Communication High Speed CAN49
- Data Communication High Speed CAN, 4-Cyl50
- Data Communication Intermediate Speed CAN, LHD51
- Data Communication Intermediate Speed CAN, RHD52
- Data Communication, LIN 1:253
- Data Communication most55
- Steering Wheel Module (SWM)56
Group 26 Cooling System57
- Cooling Fan 4-Cyl. Turbo57
- Cooling Fan, 5-Cyl. Turbo & 6-Cyl58
- Cooling Fan, 4-Cyl. Diesel59
- Cooling Fan, 5-Cyl. Diesel60
Group 27 Engine Controls61
- Cruise Control 4-Cyl. Turbo61
- Cruise Control 4-Cyl. Diesel62
- Cruise Control 5-Cyl. & 6-Cyl63
- Cruise Control 5-Cyl. Diesel64
- Start-/Stop Function 4-Cyl. 1.6L Turbo65
- Start-/Stop Function 4-Cyl. 1.6L Diesel DV6C66
- Start-/Stop Function 5-Cyl. 1.6L Diesel VED567
Group 28 Ignition and Control System68
- Engine Management System B4164T 1:268
- Engine Management System B4204T6, T7 1:270
- Engine Management System B5254T10 1:272
- Engine Management System D4162T 1:374
- Engine Management System D5244T11, T15, T17 & D5204T3 1:377
- Engine Management System B6324S4 1:280
- Engine Management System B6324S5 1:282
- Engine Management System B6304T4 1:284
- Emission Control, 4-Cyl. 1.6L & 2.0L86
- Emission Control 5-Cyl. Turbo87
- Emission Control 6-Cyl88
Group 32 Alternator and Voltage Regulator89
- Power Supply 4-Cyl. Turbo89
- Power Supply 4-Cyl. with Start/Stop90
- Power Supply 5-Cyl. & 6-Cyl91
Group 33 Starting System92
- Starting System 4-Cyl. Turbo92
- Starting System 5- & 6-Cyl93
- Starting System 4-Cyl. Diesel94
- Starting System 5-Cyl. Diesel95
Group 35 Lighting96
- High and Low Beam96
- High and Low Beam (Dual Xenon)97
- Beam Length Adjustment, Manual98
- Running/Parking Light, Tail Lights V7099
- Running/Parking Light, Tail Lights S80100
- Running/Parking Light, Tail Lights (Dual Xenon) V70101
- Running/Parking Light, Tail Lights (Dual Xenon) S80102
- Fog Lights V70103
- Fog Lights S80104
- Brake Lights V70105
- Brake Lights S80106
- Reversing Lights V70107
- Reversing Lights S80108
- Follow-Me-Home Lighting LHD109
- Follow-Me-Home Lighting RHD110
- Interior Lighting, LHD 1:2111
- Interior Lighting, RHD 1:2113
- Active Headlight115
- Lighting in Door Sill Trims116
- Auxiliary Lights117
- Lighting Mug Holder and Floor118
Group 36 Additional Electrical Equipment119
- Rain Sensor119
- Direction Indicator and Hazard Warning Flashers LHD V70120
- Direction Indicator and Hazard Warning Flashers LHD S80121
- Direction Indicator and Hazard Warning Flashers RHD V70122
- Direction Indicator and Hazard Warning Flashers RHD S80123
- Wiper/Washer Windshield124
- High Pressure Headlight Washer125
- Wiper/Washer Rear Window126
- Keyless Vehicle 1:2127
- Horn129
- Anti-Theft Alarm130
- Parking Assistance131
- Collision Warning with Power Brake Booster132
- Tire Pressure Monitoring System (TPMS)133
- Alcohol Lock134
Group 37 Wiring and Fuses Diagnostics System135
- Tp 39217202 Xc70(08-) & S80(07-)135
- Outlet 12 V136
- Cable Harness Towbar/Tow Hitch 4-Pin V70137
- Cable Harness Towbar/Tow Hitch 4-Pin S80138
- Cable Harness Towbar/Tow Hitch 7-Pin V70139
- Cable Harness Towbar/Tow Hitch 7-Pin S80140
- Cable Harness Towbar/Tow Hitch 13-Pin V70141
- Cable Harness Towbar/Tow Hitch 13-Pin S80142
- Accessory USB Unit (AUU)143
Group 38 Instruments144
- Seat Belt Reminder144
- Driver Information Module145
- Analog Clock146
Group 39 Other Cellular Phone 1:2147
- Audio 1:2149
- Audio Premium 1:3151
- DAB Radio154
- Telephone System Bluetooth155
- Bluetooth Handsfree156
- Rear Seat Entertainment157
- Satellite Radio158
- Parking Camera159
- Navigation System, Portable160
Group 43 Transmission162
- Transmission M66 & MMT 6162
- Automatic Transmission, TF-80SC AWD163
- Automatic Transmission MPS6164
- Automatic Transmission AWF21165
- Differential Electronic Module (DEM)166
Group 55 Parking Brake Electric Parking Brake167
Group 59 Brake System168
- Brake Control System & DSTC168
Group 64 Steering169
- Speed Dependent Power Steering169
Group 76 Shock Absorbers170
- Four-C170
- Central Locking Front Doors LHD171
- Central Locking Front Doors RHD172
- Central Locking Rear Doors173
Group 83 Doors and Openings174
- Central Locking Trunk Lid/Tailgate V70174
- Central Locking Trunk Lid/Tailgate S80175
- Central Locking Fuel Filler Flap176
- Signal Receiver Central Locking177
- Power Windows Front Doors LHD178
- Power Windows Front Doors RHD179
- Power Windows Rear Doors180
- Power Sunroof181
Group 84 Exterior Decorative Elements, Etc182
- Power Door Mirrors LHD182
- Power Door Mirrors RHD183
- Heated Door Mirrors LHD184
- Heated Door Mirrors RHD185
- Blind Spot Information System LHD186
- Blind Spot Information System RHD187
- Heated Rear Window188
Group 85 Interior Equipment189
- Power Driver's Seat with Memory Function, LHD189
- Power Driver's Seat with Memory Function, RHD190
- Power Passenger Seat, LHD191
- Power Passenger Seat, RHD192
- Heated Front Seats with Fans193
- Heated Front Seats Without Fans194
- Heated Rear Seat195
- Massage Seats196
Group 87 Climate Control System197
- Climate Control System PTC-Elements197
- Climate Control System, 4-Cyl. Turbo 1:2198
- Climate Control System 4-Cyl. Diesel 1:2200
- Climate Control System 5- & 6-Cyl. 1:2202
- Parking Heater, Auxiliary Heater204
- Parking Heater, Remote Start205
- Refrigeration Box Rear Seat206
Group 88 Internal Equipment Rear-View Mirror with Automatic Dimming207
- Supplemental Restraint System 1:2208
- Power Folding Headrest210
- Remote Control Garage Opening211
Group 89 Body Other Radiator Masking Blind212
- Tp 39217202 Xc70(08-) & S80(07-)212
Connectors213
Branching Points248
Cable Harness Routing in Vehicle266
- Harness Engine 4-Cyl. Turbo266
- Engine Harness, 5-Cyl266
- Engine Harness, 6-Cyl267
- Harness Engine, 6-Cyl. Turbo267
- Harness Engine, 2.0L Diesel268
- Harness Engine, 2.4L Diesel268
- Engine Compartment Harness LHD269
- Engine Compartment Harness RHD270
- Harness Dashboard, LHD271
- Harness Dashboard, RHD272
- Harness Floor, LHD S80273
- Harness Floor, RHD S80274
- Harness Floor, LHD V70275
- Harness Floor, RHD V70276
- Harness Infotainment, LHD S80277
- Harness Infotainment, RHD S80278
- Harness Infotainment, LHD V70279
- Harness Infotainment, RHD V70280
- Roof Harness, S80281
- Roof Harness, V70281
- Center Console Harness282
- Tunnel Harness282
- Harness Front Door, Left283
- Harness Front Door, Right283
- Harness Rear Door, Left284
- Harness Rear Door, Right284
- Trunk Lid/Tailgate Harness, S80285
- Trunk Lid/Tailgate Harness, V70285
- Harnesses Rear Axle286
- Executive Harnesses287
Component Illustrations288
Index 1:2349
- Table of Contents350
List of Components 1:7351
