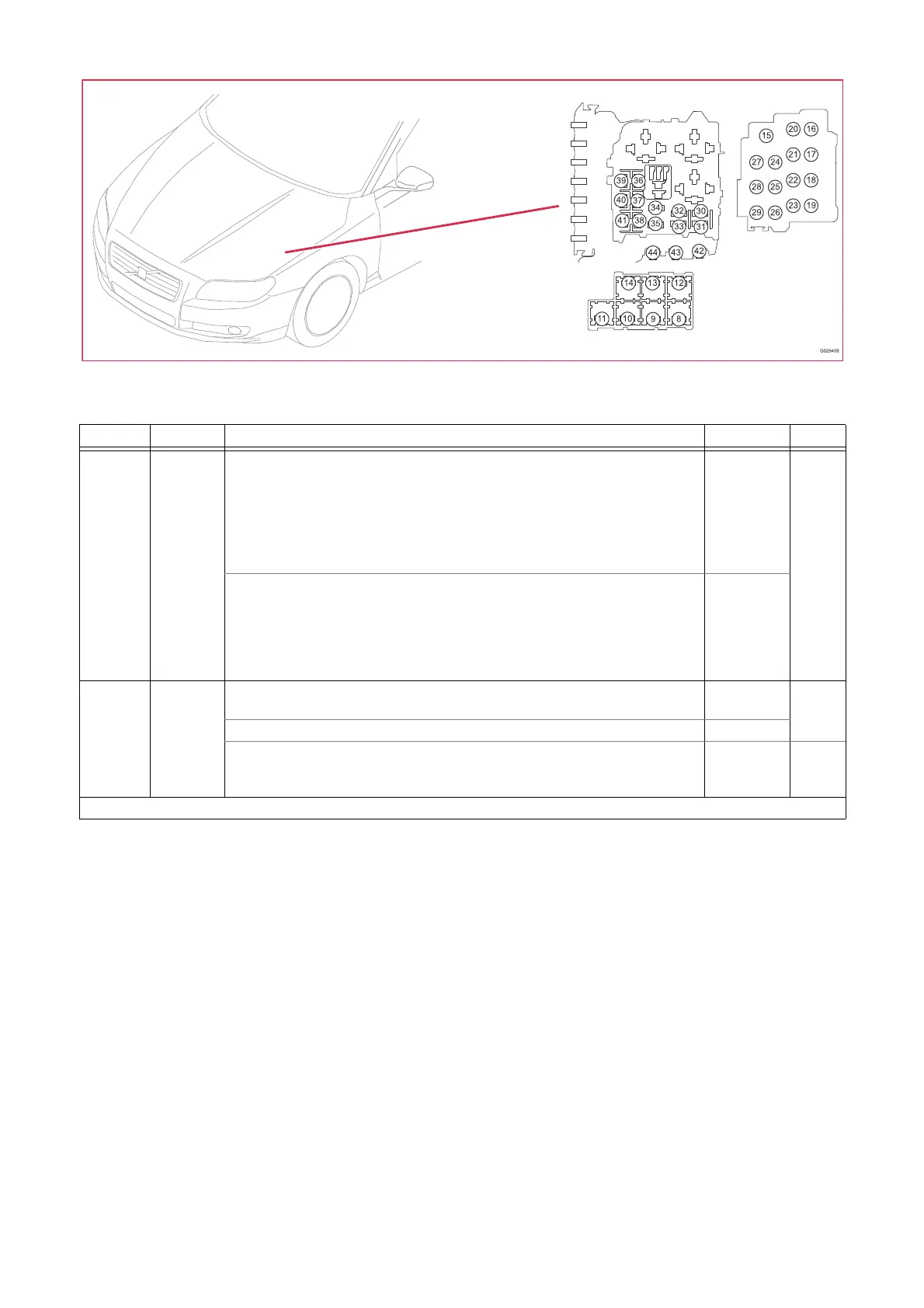

TP 39217202 XC70(08-) & S80(07-) 2012 19
Fuses
Distribution box in engine compartment F38-F39
15/31 Distribution box in engine compartment
No. No. Fuse function via A
F38 11B/38 4/46 Engine Control Module (ECM), 6-Cyl.
6/139 Upper actuator motor, intake manifold, 6-Cyl. W/O T
6/140 Lower actuator motor, intake manifold, 6-Cyl. W/O T
8/3 Electromagnetic clutch climate control system, 6-Cyl.
8/117 Solenoid, variable valve timing, intake, 6-Cyl.
8/125 Solenoid cam profile front, 6-Cyl. W/O T
8/126 Solenoid cam profile rear, 6-Cyl. W/O T
-
-
-
-
-
-
-
10
4/46 Engine Control Module (ECM)
8/3 Electromagnetic clutch, climate control system
8/19 Solenoid, variable valve timing intake bank 2
8/81 Solenoid, variable valve timing exhaust bank 2
8/117 Solenoid, variable valve timing intake bank 1
8/118 Solenoid, variable valve timing exhaust bank 1
-
-
-
-
-
-
F39 11B/39 7/15 Front heated oxygen sensor, 4-Cyl.
7/82 Rear heated oxygen sensor, 4-Cyl. Turbo
-
-
10
7/15 Front heated oxygen sensor, 5-Cyl. Diesel -
7/15 Front heated oxygen sensor, 5-Cyl. Turbo.
7/103 Rear heated oxygen sensor, 5-Cyl. Turbo.
8/18 EVAP valve, 5-Cyl. Turbo.
-
-
-
15
continues
