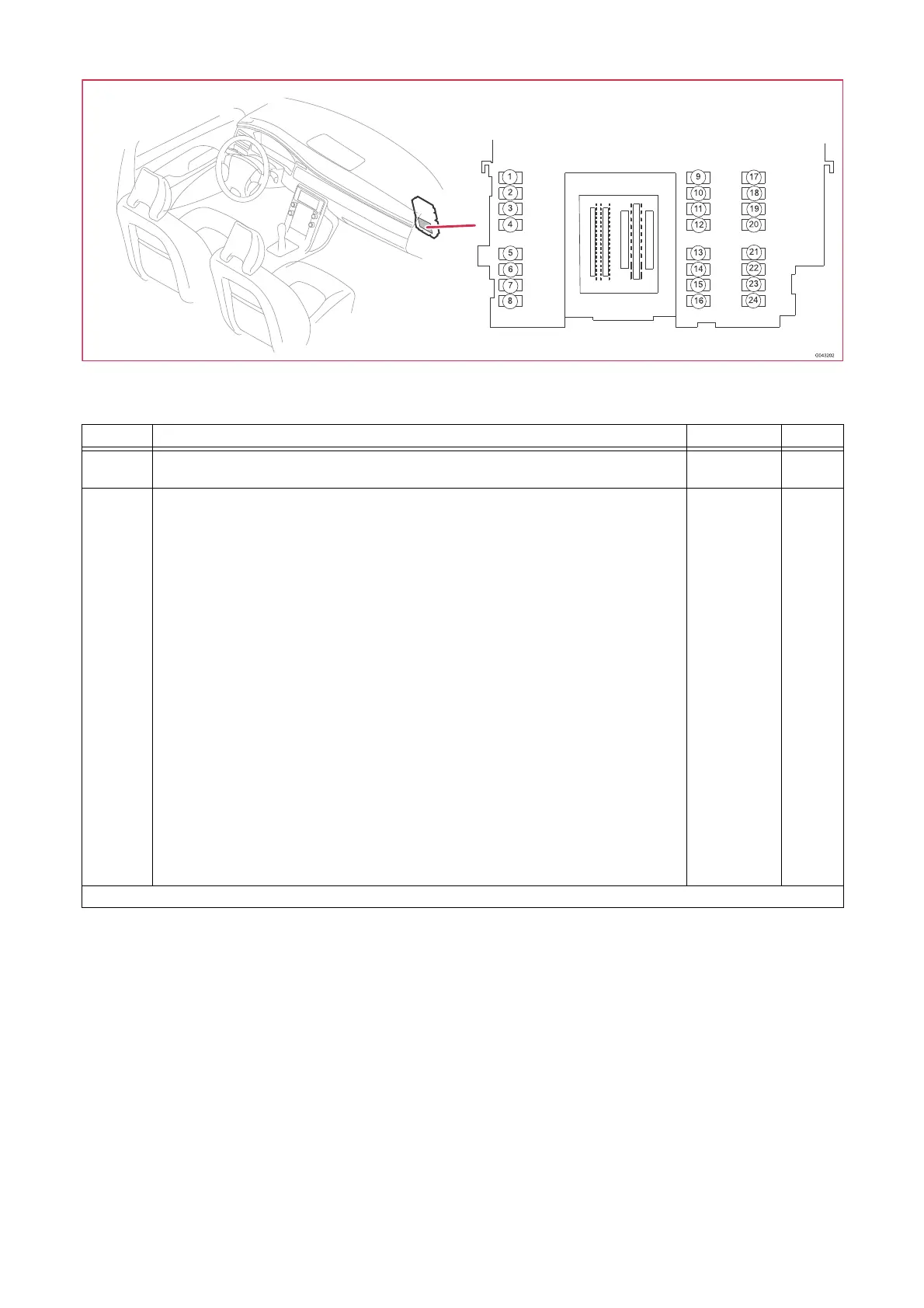

TP 39217202 XC70(08-) & S80(07-) 2012 21
Fuses
Central electronic module (CEM) F1-F3
4/56 Central Electronic Module (CEM)
No. Fuse function via A
F1 2/16 Relay, rear window wiper
6/32 Rear window wiper motor
-
2/16
15
F3 3/27 Switch unit, power passenger seat
3/176 Power window switches, driver’s door
3/291 Tailgate closing switch, V70
4/52 Power Seat Module (PSM)
4/76 Remote control unit for garage door opener
6/8 Lock motor central locking, trunk lid/tailgate, V70
10/25 Ceiling light, cargo compartment, V70
10/29 Glove compartment lighting
10/114 Left-hand vanity mirror lighting
10/115 Right-hand vanity mirror lighting
10/125 Left-hand front courtesy lighting
10/126 Right-hand front courtesy lighting
10/127 Lighting, cargo compartment, left-hand side, S80
10/128 Lighting, cargo compartment, right-hand side, S80
10/150 Rear reading light
10/249 Sill lighting, front driver’s side, S80
10/250 Sill lighting, front passenger side, S80
10/251 Sill lighting, rear driver’s side, S80
10/252 Sill lighting, rear passenger side, S80
17/45 Alcolock outlet
26/6 Converter/control module, sill moldings, driver’s side
26/7 Converter/control module, sill moldings, passenger side
26/8 Alcolock charging cradle
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
7.5
continues
