Fuses

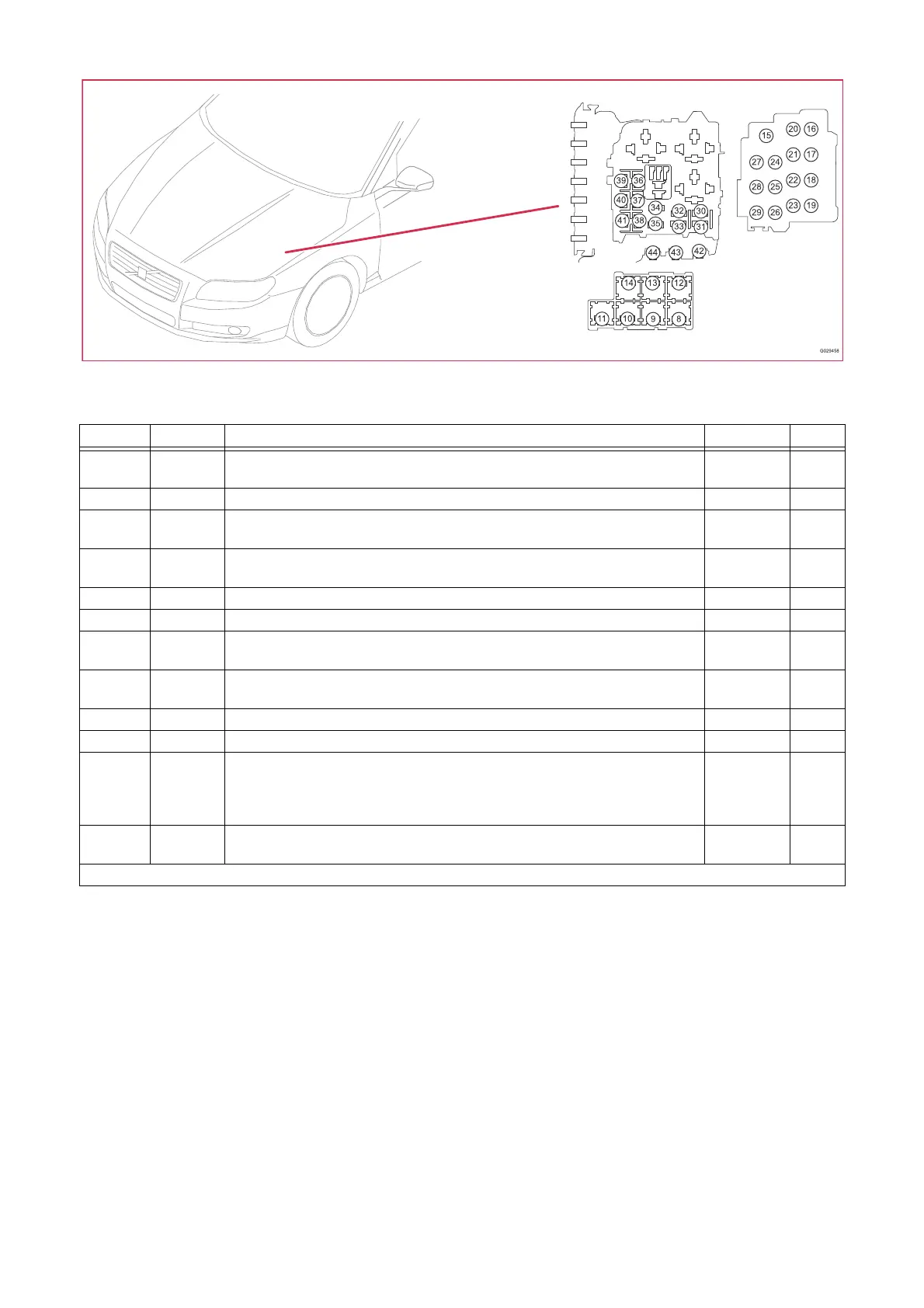

Distribution box in engine compartment F8-F21
15/31 Distribution box in engine compartment
No. No. Fuse function via A
F8 11B/8 2/182 Relay, headlight washer motor
6/104 Washer motor headlights
-
2/182
20
F9 11B/9 6/1 Wiper Motor Module (WMM) - 30
F10 11B/10 4/7 Combustion Preheater Module (CPM)
4/106 Control module, remote parking heater start
-
-
25
F11 11B/11 4/31 Passenger compartment fan control module
6/28 Motor, passenger compartment fan
-
-
40
F13 11B/13 4/16 Brake Control Module (BCM), pump - 40
F14 11B/14 4/16 Brake Control Module (BCM), valves - 20
F16 11B/16 10/1 Lamp housing, front left
10/2 Lamp housing, front right
-
-
10
F17 11B/17 4/56 Central Electronic Module (CEM)
F18-F19 Fuses in the Central Electronic Module (CEM)
-20
F18 11B/18 4/16 Brake Control Module (BCM) - 5
F19 11B/19 4/99 Speed dependent power steering control module - 5
F20 11B/20 4/28 Transmission Control Module (TCM)
4/28B Transmission Control Module (TCM) MPS6
4/46 Engine Control Module (ECM)
4/9 Supplemental restraint system module (SRS)
-
-
-
-
10
F21 11B/21 9/43 Heated windshield washer nozzle, left
9/44 Heated windshield washer nozzle, right
-
-
10
