Volvo XC70 2012 - Central Locking Fuel Filler Flap

To Next Page

To Previous Page

TP 39217202 XC70(08-) & S80(07-) 2012 176

Group 83 Doors and openings

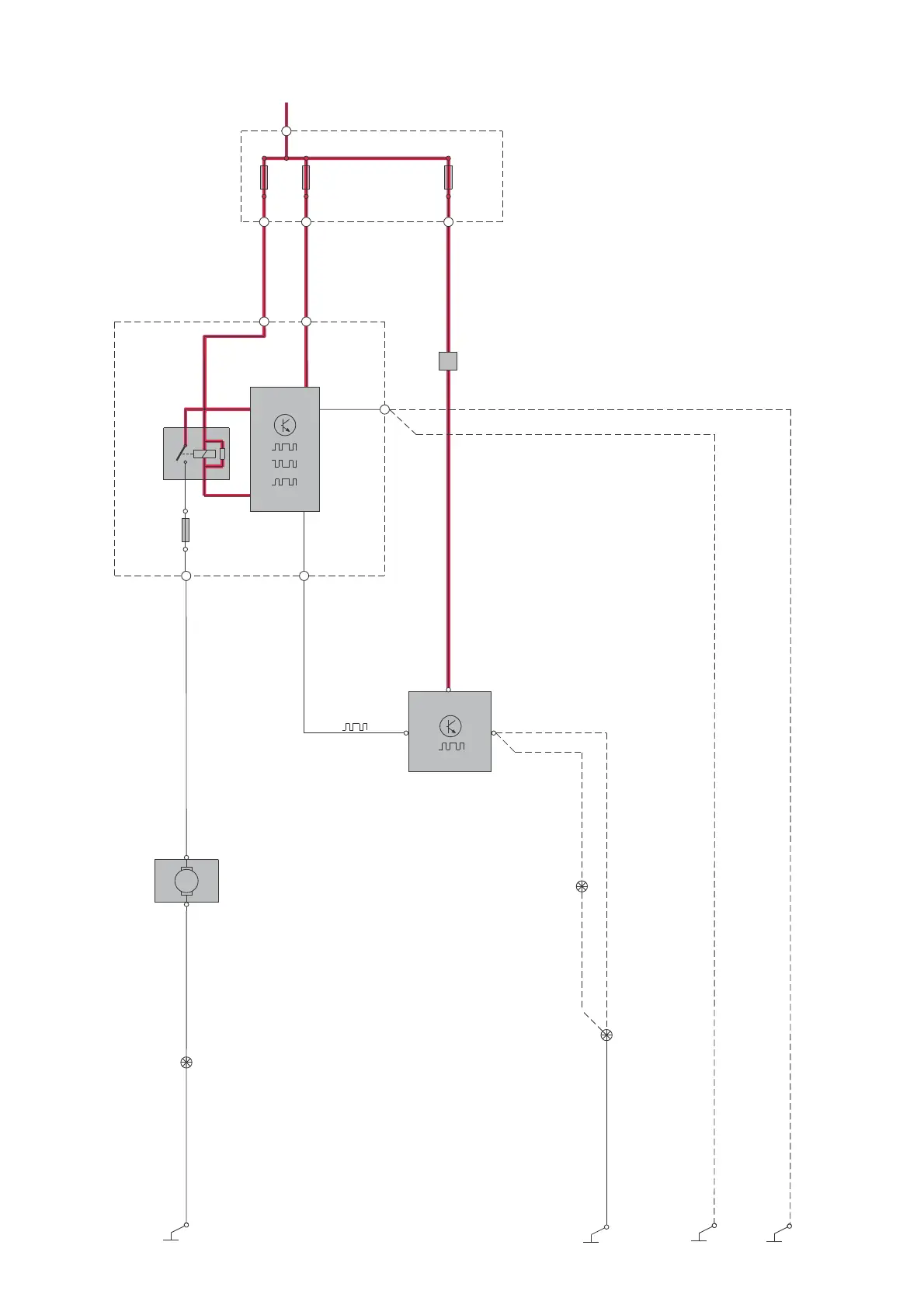

Central locking fuel filler flap

11A/2

30+

11A/1

CAN

CEM

4/56

11B/23

C2:62 C3:49

C2:65

C5:1C5:2

LIN

RD-BK

RD-BU

15/31

31/48

73/5033

6/37

31/7

31/84

BK-BU BK-BU YE-BU

BK-GN

BK-VT

LIN

RD-BKRD-BK

GN-VT

BK BK

LHD

RHD

LHD

RHD

73/4016

73/4017

31/83

3/111

74/411

LSM

G042354
