Volvo XC70 2012 - Central Electronic Module (CEM) F4-F19

TP 39217202 XC70(08-) & S80(07-) 2012 22
Fuses

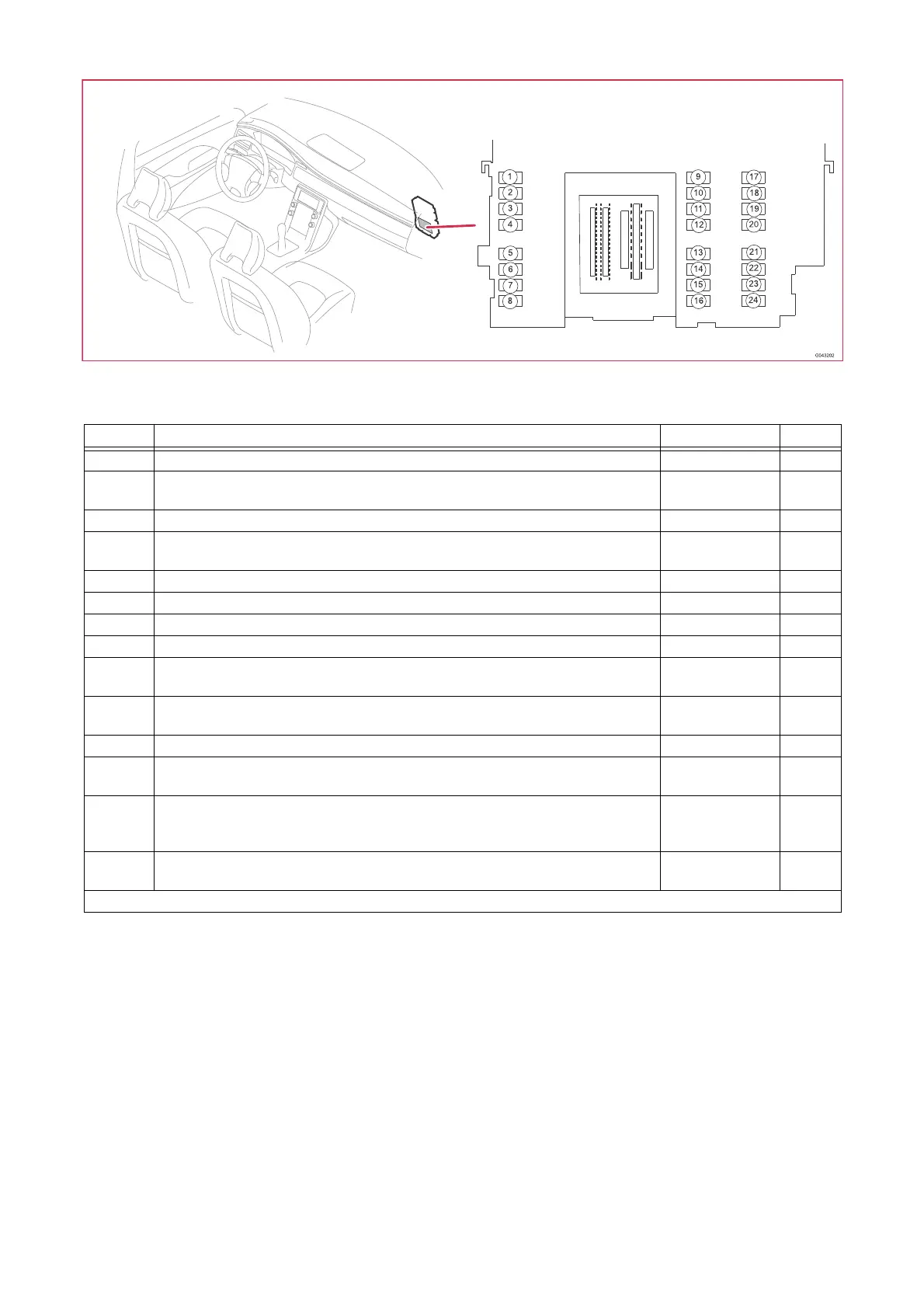

Central electronic module (CEM) F4-F19
4/56 Central Electronic Module (CEM)
No. Fuse function via A
F4 5/1 Driver Information Module (DIM) - 5
F5 4/80 Forward Sensing Module (FSM)
7/203 Forward-aimed radar (FLR)
-
-
10
F6 7/149 Rain Sensor Module (RSM) - 7.5
F7 3/4 Steering wheel switch left (SWSL)
3/131 Steering wheel switch right (SWSR)
3/130
3/130
7.5
F8 6/37 Lock motor, fuel filler cover - 10
F9 6/127 Washer motor - 15
F10 6/127 Washer motor - 15
F11 6/8 Central locking motor, trunk lid - 10
F13 4/83 Fuel pump control module
6/33 Fuel pump
relay in CEM
relay in CEM
20
F14 4/6 Climate Control Module (CCM)
7/199 Ultrasonic sensor (IMS)
-
-
5
F15 4/102 Steering Column Lock Module (SCL) relay in CEM 15
F16 16/35 Siren Control Module (SCM)
17/13 Data link connector
-
-
5
F18 4/9 Supplemental restraint system module (SRS)
4/125 Closing velocity module (CVM)
7/93 Occupant Weight Sensor (OWS)
-
-
-
10
F19 4/80 Forward Sensing Module (FSM)
7/203 Forward-aimed radar (FLR)
-
-
5
continues
