TP 39217202 XC70(08-) & S80(07-) 2012 291

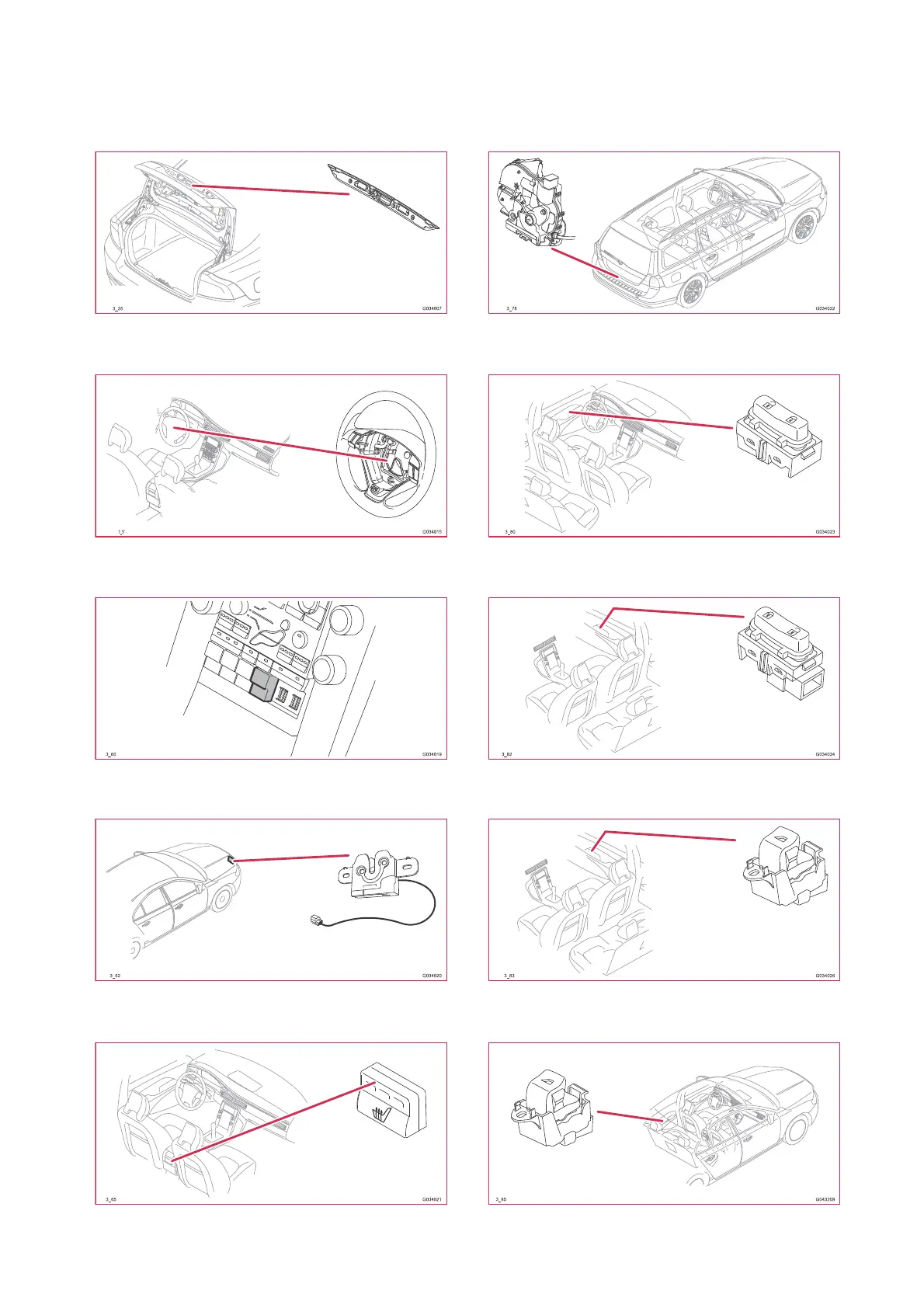

Component illustrations
3/35 - 3/85
3/35 Trunk handle switch, S80
3/37 Contact horn
3/60 Switch, auxiliary lights
3/62 Hood alarm contact
3/65 Switch, heated rear seat
3/78 Lock unit, tailgate V70
3/80 Switch, central locking system,
drivers door
3/82 Switch, central locking system,
passenger door
3/83 Switch, passenger door power
window
3/85 Power window switch, rear left door
