TP 39217202 XC70(08-) & S80(07-) 2012 305

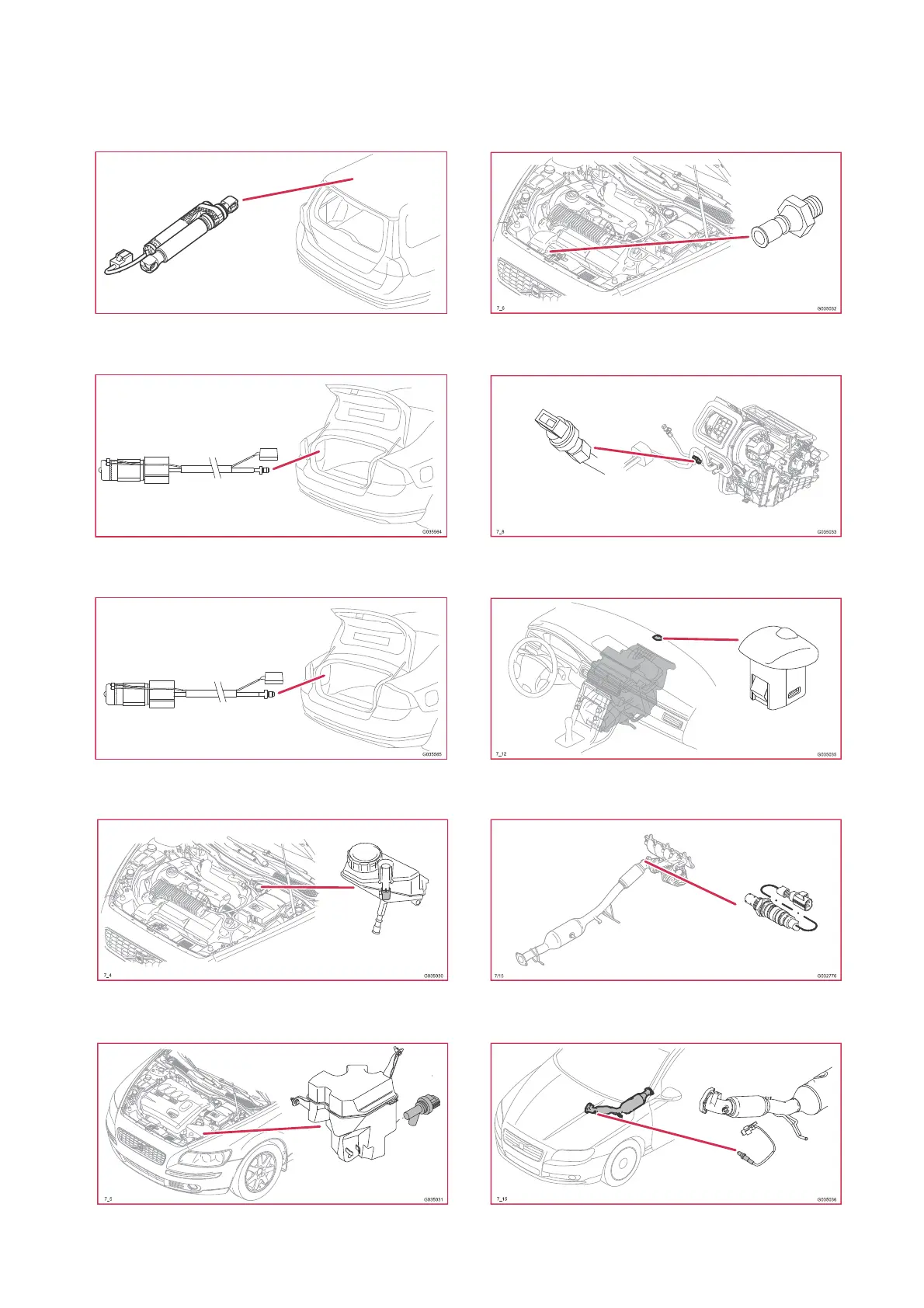

Component illustrations
6/165 - 7/15
6/165 Motor tailgate opening left
6/165
I03169
6/169 Left pump back massage
6/170 Right pump back massage
7/4 Brake fluid level sensor
7/5 Washer fluid level sensor
7/6 Oil pressure monitor
7/8 Pressure sensor, climate control
system
7/12 Solar sensor, twilight sensor and
indicator alarm
7/15 Front heated oxygen sensor, 4-Cyl.
7/15 Front heated oxygen sensor, 5-Cyl.
