TP 39217202 XC70(08-) & S80(07-) 2012 314

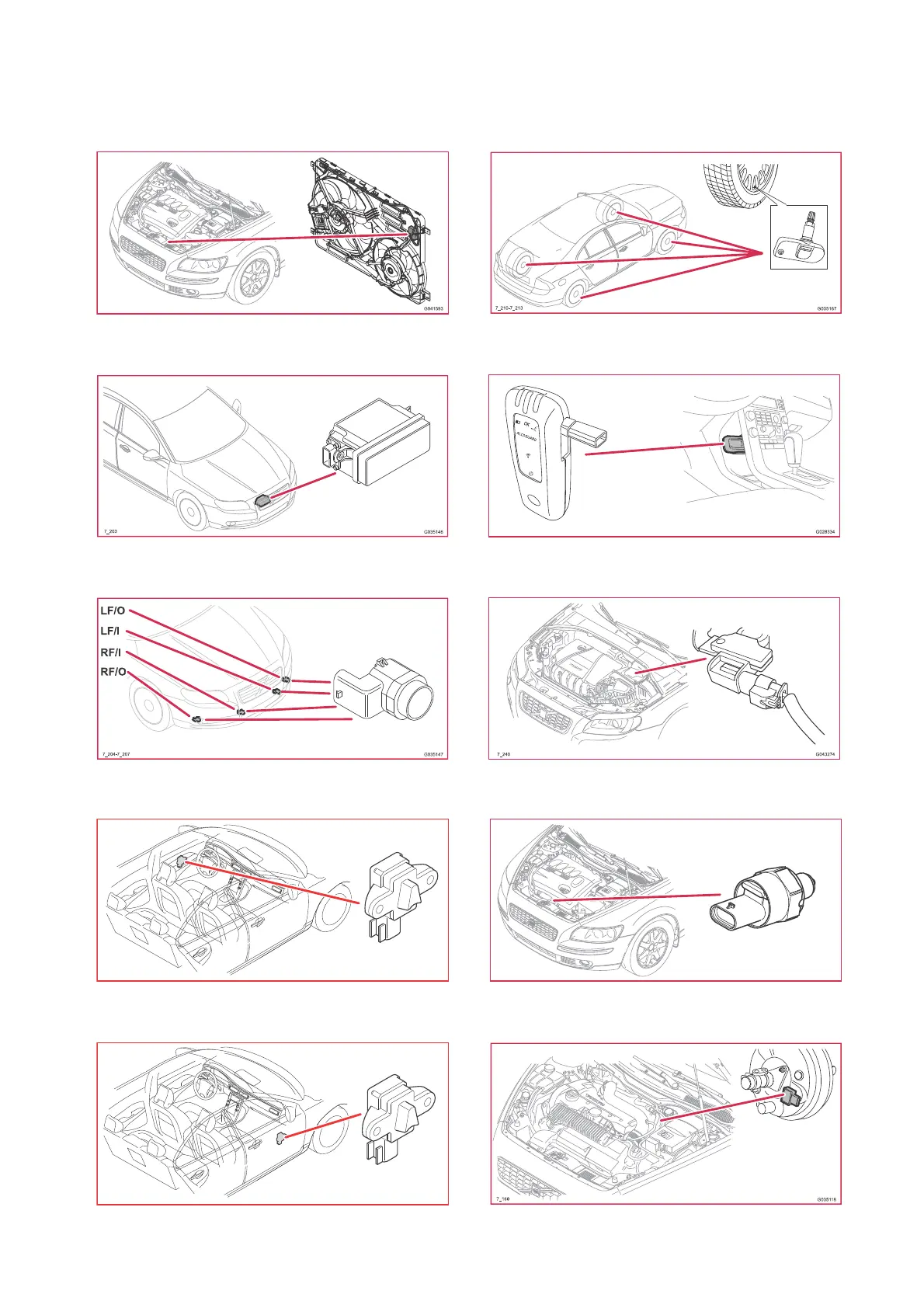

Component illustrations
7/200 - 7/251
7/200 Sensor, coolant temperature
7/203 Forward-aimed radar (FLR)
7/204-
7/207 Front parking assistance sensor
7/208 Side impact sensor, left front door
7_208
G035165
7/209 Side impact sensor, right front door
7_209
G035166
7/210-
7/213 Tire pressure sensor
7/238 Alcolock sensor
7/240 Battery monitoring sensor (BMS)
7/248 Oil pressure and temperature sensor
7/248
I07248
7/251 Brake vacuum sensor
