TP 39217202 XC70(08-) & S80(07-) 2012 319

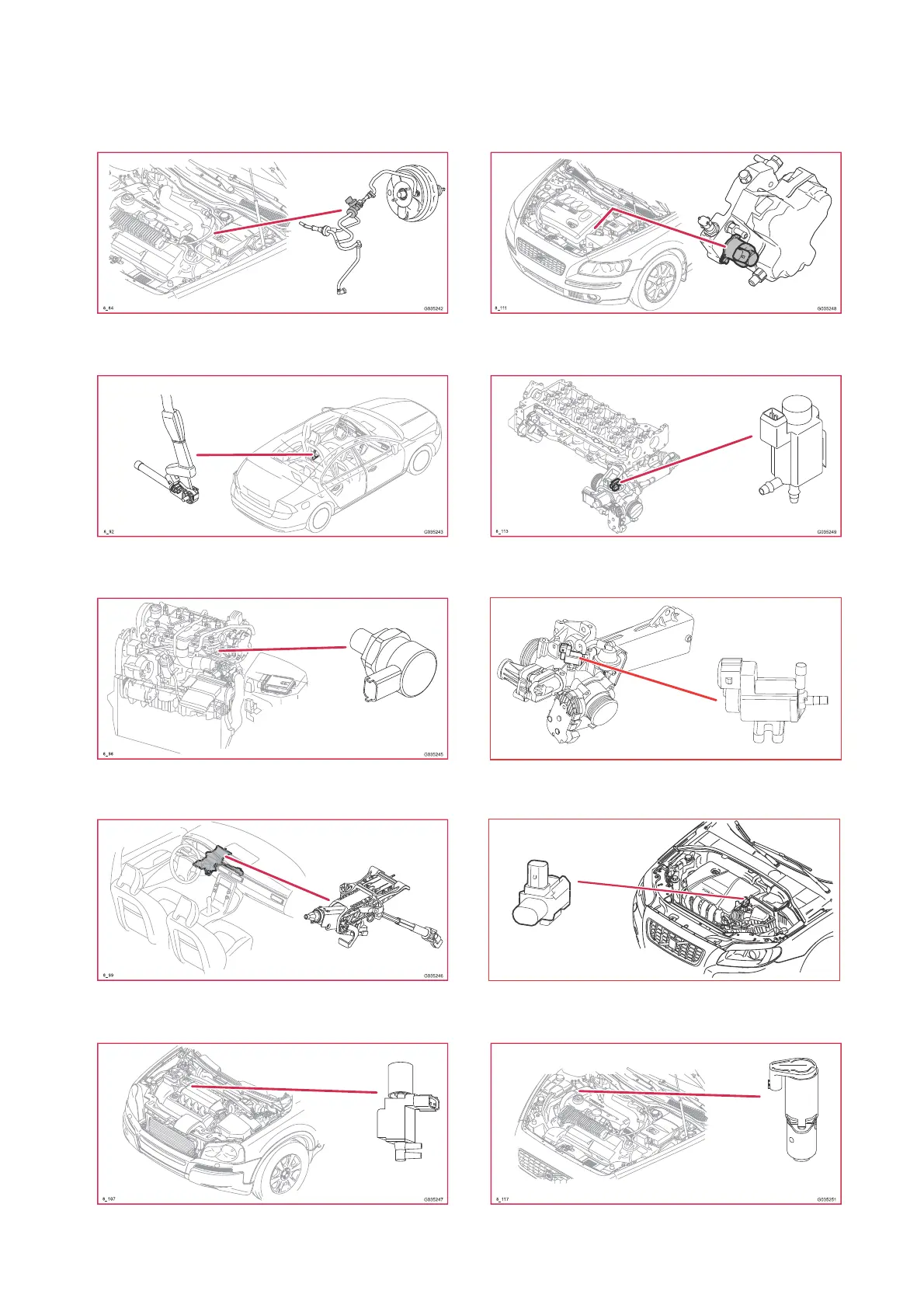

Component illustrations
8/84 - 8/117
8/84 Switch, vacuum pump
8/92 Lap belt tensioner, driver
8/98 Control valve fuel pressure
8/99 Steering column igniter
8/107 Variable intake valve
8/111 Control valve fuel flow
8/113 Bypass valve, EGR cooling, 4 Cyl.
8/113 Bypass valve, EGR cooling, 5 Cyl.
8/114 Valve mixing air/fuel
G028338
8/117 Solenoid, variable valve timing,
intake, 5-Cyl.
