TP 39217202 XC70(08-) & S80(07-) 2012 323

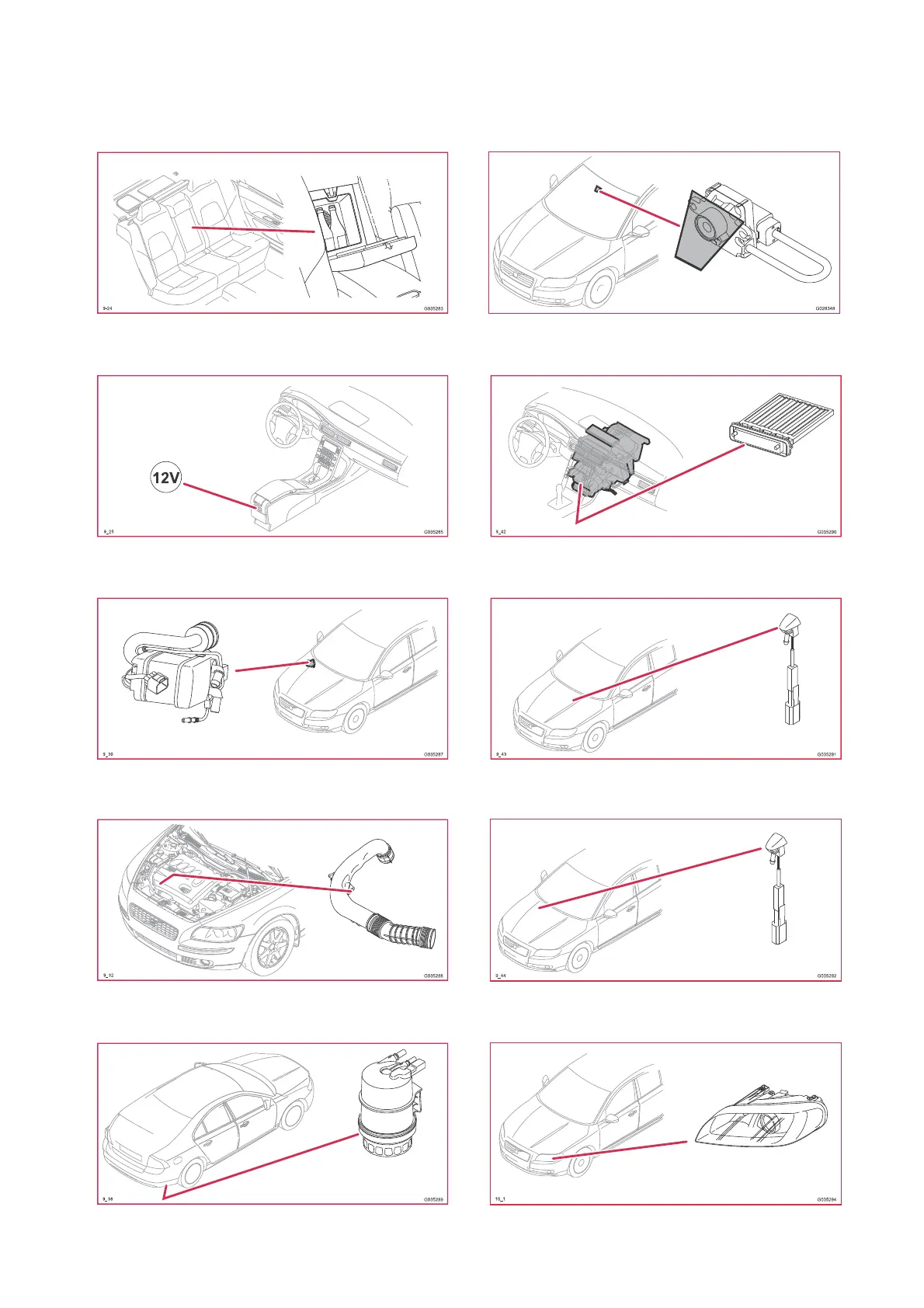

Component illustrations
9/24 - 10/1
9/24 Refrigeration box
9/25 Rear 12V outlet
9/30 Auxiliary heater
9/32 PTC resistor, crankcase ventilation
9/38 Electrically heated fuel filter
9/39 Heating element camera
9/42 PTC-element
9/43 Heated windshield washer nozzle, left
9/44 Heated windshield washer nozzle,
right
10/1 Lamp housing, front left
