TP 39217202 XC70(08-) & S80(07-) 2012 329

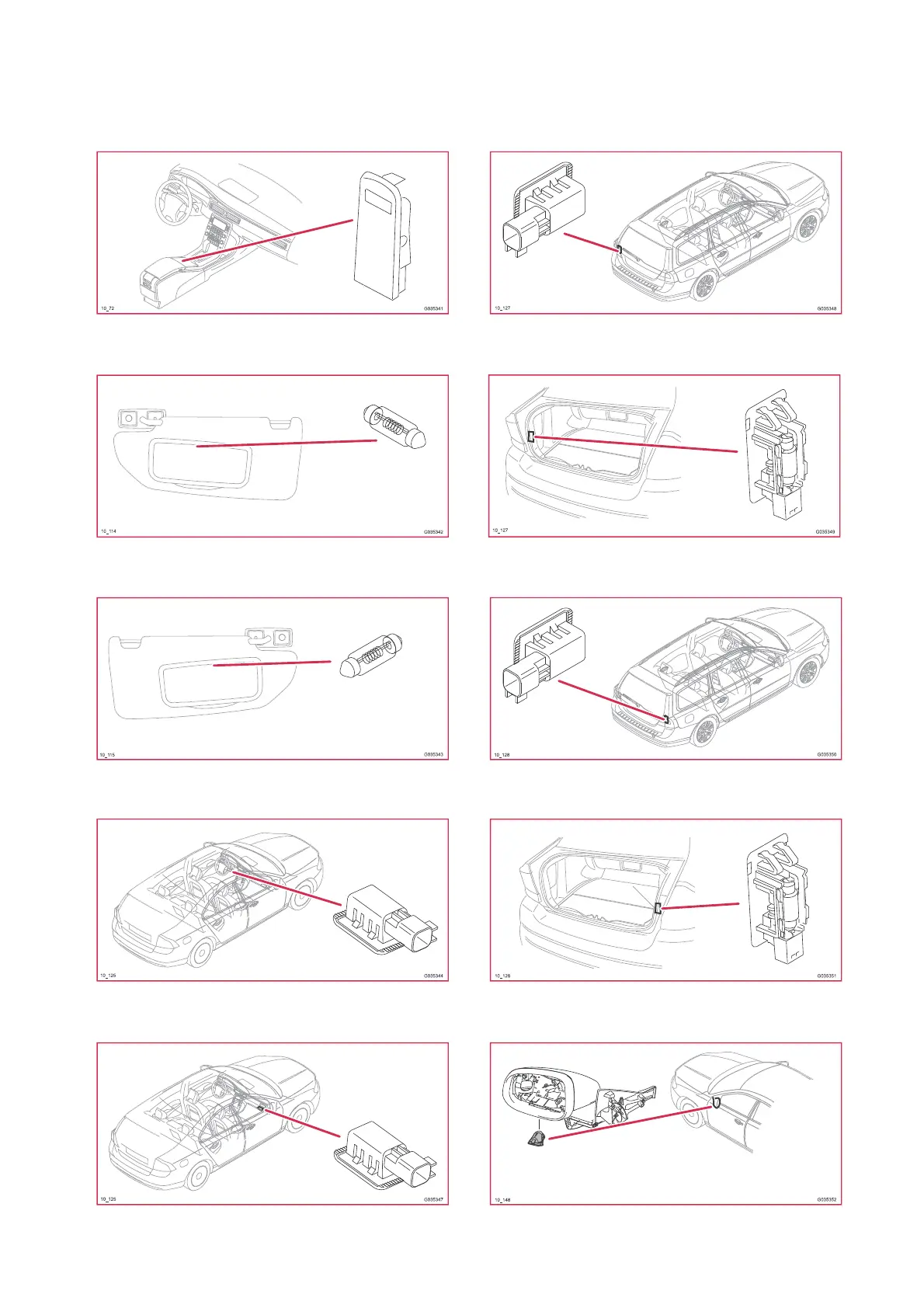

Component illustrations
10/72 - 10/148
10/72 Front ashtray lighting
10/114 Left-hand vanity mirror lighting
10/115 Right-hand vanity mirror lighting
10/125 Left-hand front courtesy lighting
10/126 Right-hand front courtesy lighting
10/127 Lighting, cargo compartment, left-
hand side, V70
10/127 Lighting, cargo compartment, left-
hand side, S80
10/128 Lighting, cargo compartment, right-
hand side, V70
10/128 Lighting, cargo compartment, right-
hand side, S80
10/148 Lighting, left front door mirror
