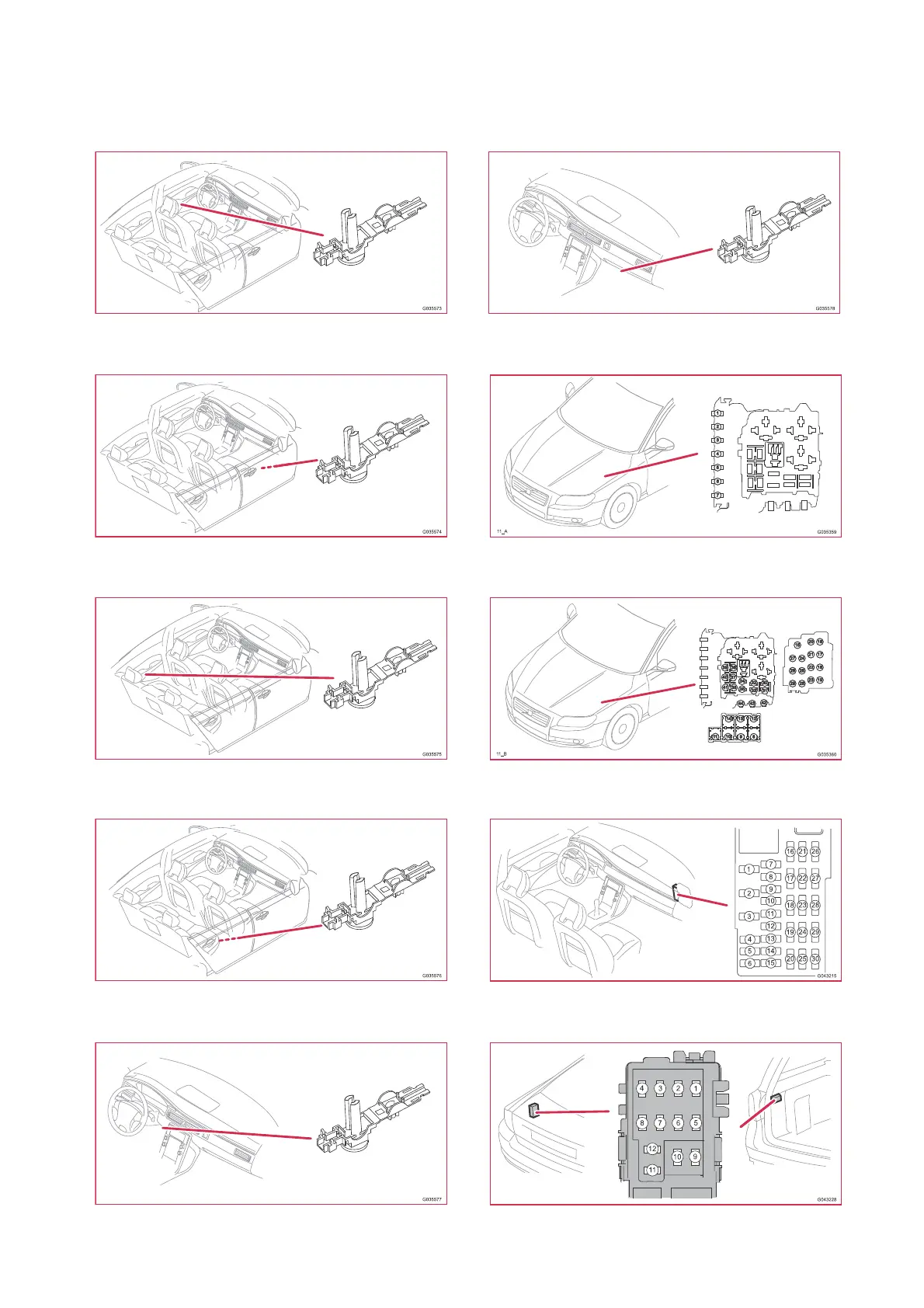

Component illustrations
10/282 - 11D/A
10/282 Lighting door compartment front left
10/283 Lighting door compartment front
right
10/284 Lighting door compartment rear left
10/285 Lighting door compartment rear
right
10/286 Lighting floor driver’s side
10/287 Lighting floor passenger side
11A/no. Main fuses in the engine
compartment fuse box
11B/no. Fuses in the engine compartment
fuse box
11C/no.Fuses in distribution box passenger
compartment
11D/A Fuses in cargo compartment fuse
box
