WM 68401 04/2021
MEDUCORE Standard
2
EN
159

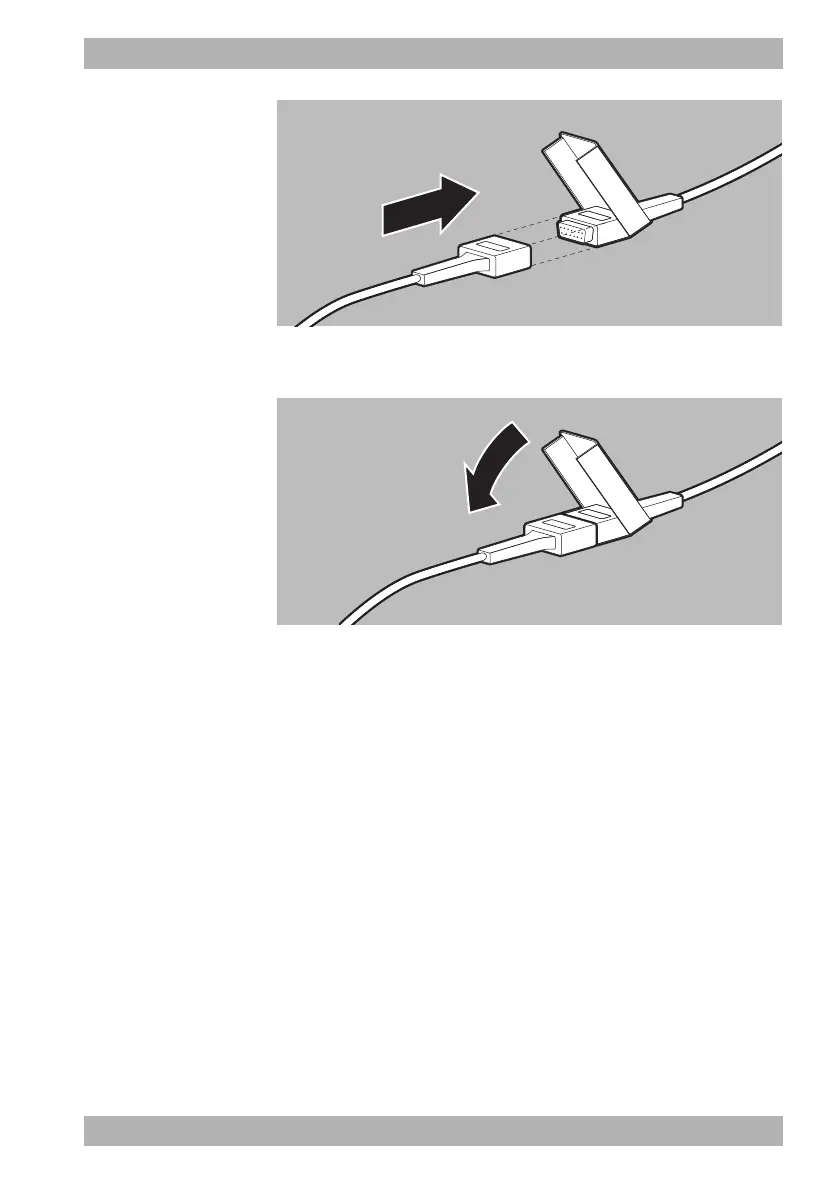

6 Operation
3.
Connect the selected pulse ox
imetry sensor to the
pulse
oximetry sensor conn
ecting cable.
4.
Press the safety closure until you hear it engage.
158
160
