3.3.3 Manual mode (only with Manual defibrillation
option)

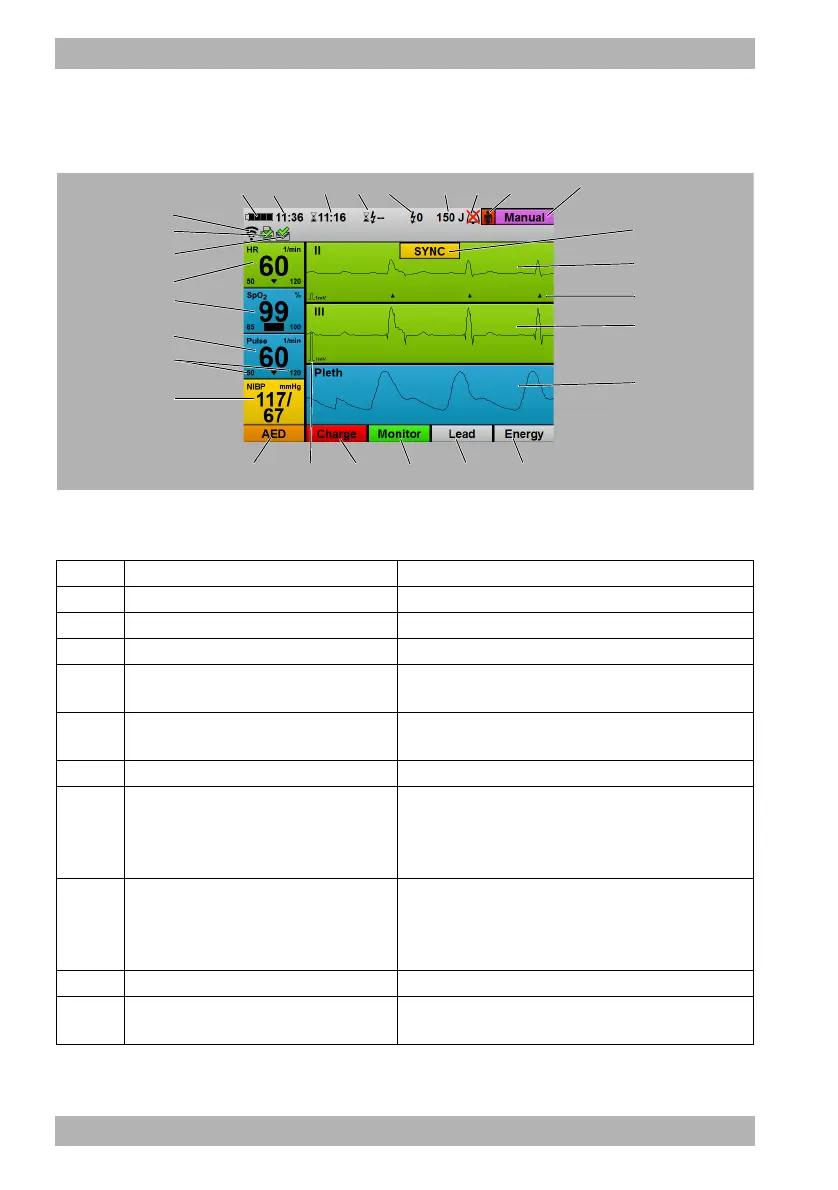

3-5 Display in manual mode
12 345 78 9
26
17 16 15
20
18
25
24
23
21
22
11
13
14
6
19
27
28
12
10
No. Designation Description
1 Battery status Displays the charge level of the battery.
2 Time Displays the time.
3 Session duration Displays the duration of the current session.
4 Operating time since last shock delivery
Displays device operating time since the last shock
delivery.
5 Number of shocks delivered
Displays the number of shocks delivered during the
current session.
6 Shock energy Displays the shock energy selected for the next shock.
7 Alarm indicator
Indicates the status of audio alarm output:
• Audio alarm output active
• Audio alarm output muted/paused
• Audio alarm output canceled
8 Patient group
Displays the selected patient group:
•Adult
•Child
•Infant
9 Mode indicator Indicates the mode currently selected.
10 SYNC (only with Cardioversion option)
Indicates that delivery of the following shock will be
synchronized with the R wave.
