Service Manual FB 7100 Water System
5A - 2 January, 2005
A.2.(Dis-)assemblies
A.2.1 Releasing the distributor head
Preparation • Open the door.
• Switch off the main switch
Releasing Follow these steps to release the distributor head:
Installation Installation is done in reverse order.
A.2.2 Removing the cover for water system
Preparation • Open the door.
• Switch off the main switch.
• Remove the coffee waste bucket and pull forward the base tray.
• Release distributor head and rest it on top of its mounting arm, see this
section, page 5A-2.

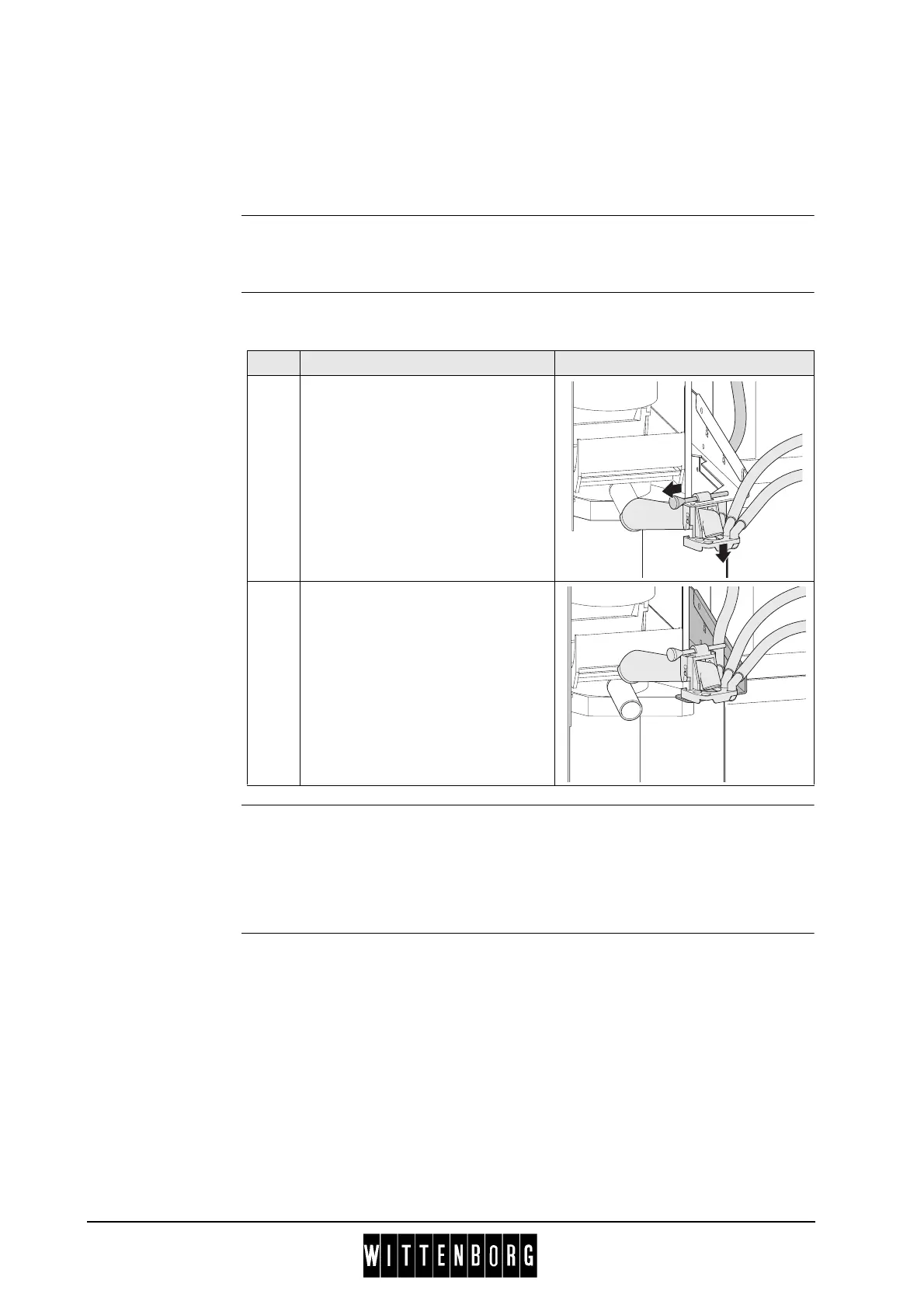

Step Action Illustration
1.
Remove green retaining pin from
distributor head.
2.
Pull delivery spout free of hose,
and rest the distributor head on top
of mounting arm.
