Service Manual FB 7100 Water System
5A - 14 January, 2005
Assembly Assembly is done in reverse order.

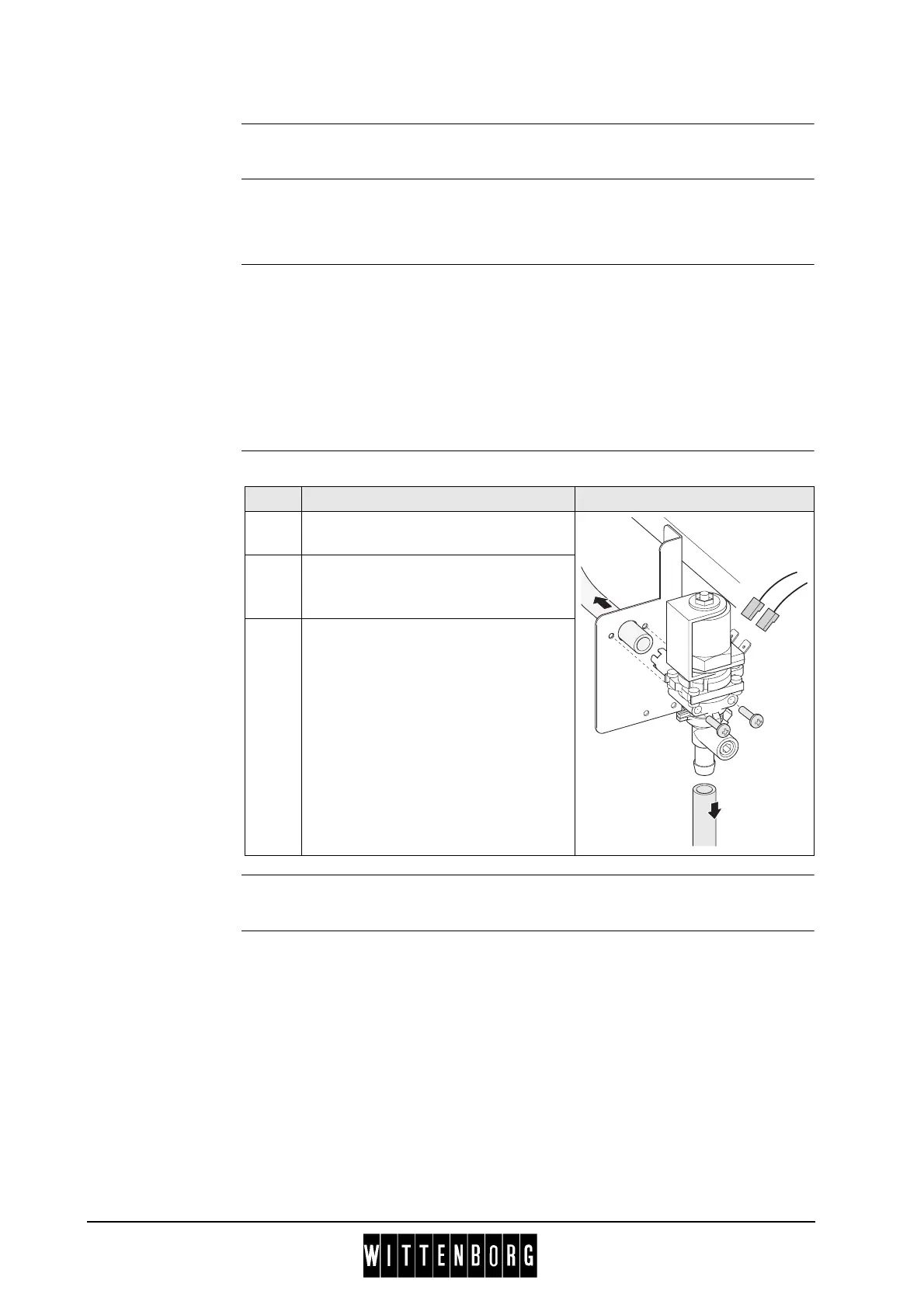

A.2.15 Disassembing the recirculation valve
Preparation Before removing the recirculation valve
• Open the door.
• Switch off the main switch.
• Remove coffee waste bucket and pull forward the base tray.
• Release distributor head and rest it on top of its mounting arm, see this
section, page 5A-2.
• Remove cover for water system, see this section, page 5A-2.
Disassembly Follow these steps to disassemble the recirculation valve:
Assembly Installation is done in reverse order.
Step Action Illustration
1 Disconnect the electrical plug
connections of the valve
2 Loosen two screws and pull the valve
out of the bracket.
3 Remove hoses from the outlet spouts
of the valve.
