Service Manual FB 7100 Brewer System
January, 2005 5B - 19
B.3.11 Removing the actuator motor
Preparation Before removing the actuator motor:
• Switch off the main switch, disconnect the power supply, and close the
water tap.
• Remove the brewer, see this section, page 5B-4.
• Remove the brewer housing, see this section, page 5B-8.
Disassembly Follow these steps to disassemble the actuator motor:
Assembly Assembly is done in reverse order.

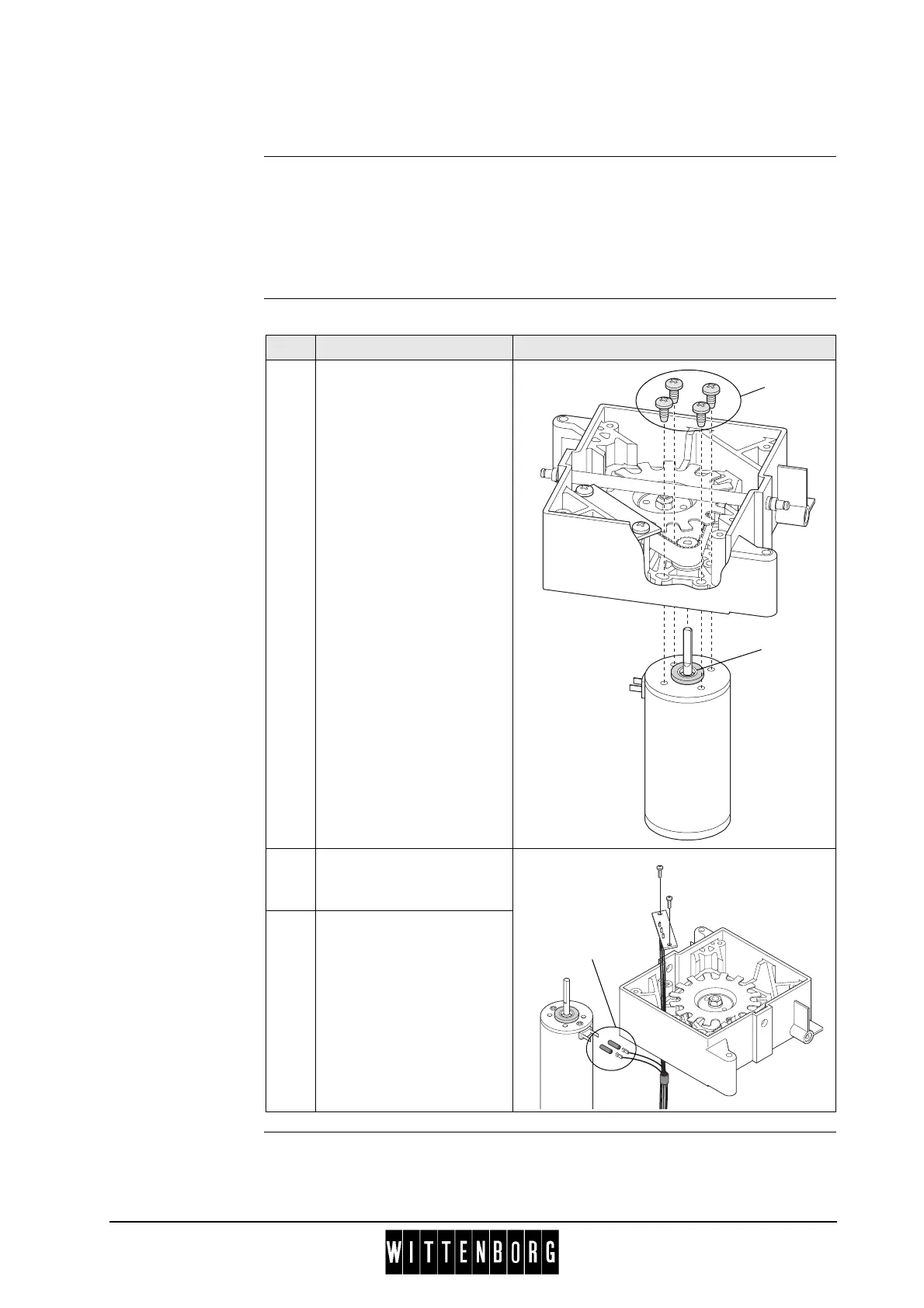

Step Action Illustration
1 Remove the four screws
(1).
Note! Do not remove the
loose spacer ring (2).
2 Pull off the two cable plug
connections (1) to the
tachoboard.
3 Remove the motor
2
1
1
