D.2.3 Removing the cup station
Preparation Before removing the cup station:
• Open the door.
• Switch off the main switch.
• Pull out the drip tray, see Operator Manual
Removal Follow these steps to remove the cup station.
Installation Installation is done in reverse order.

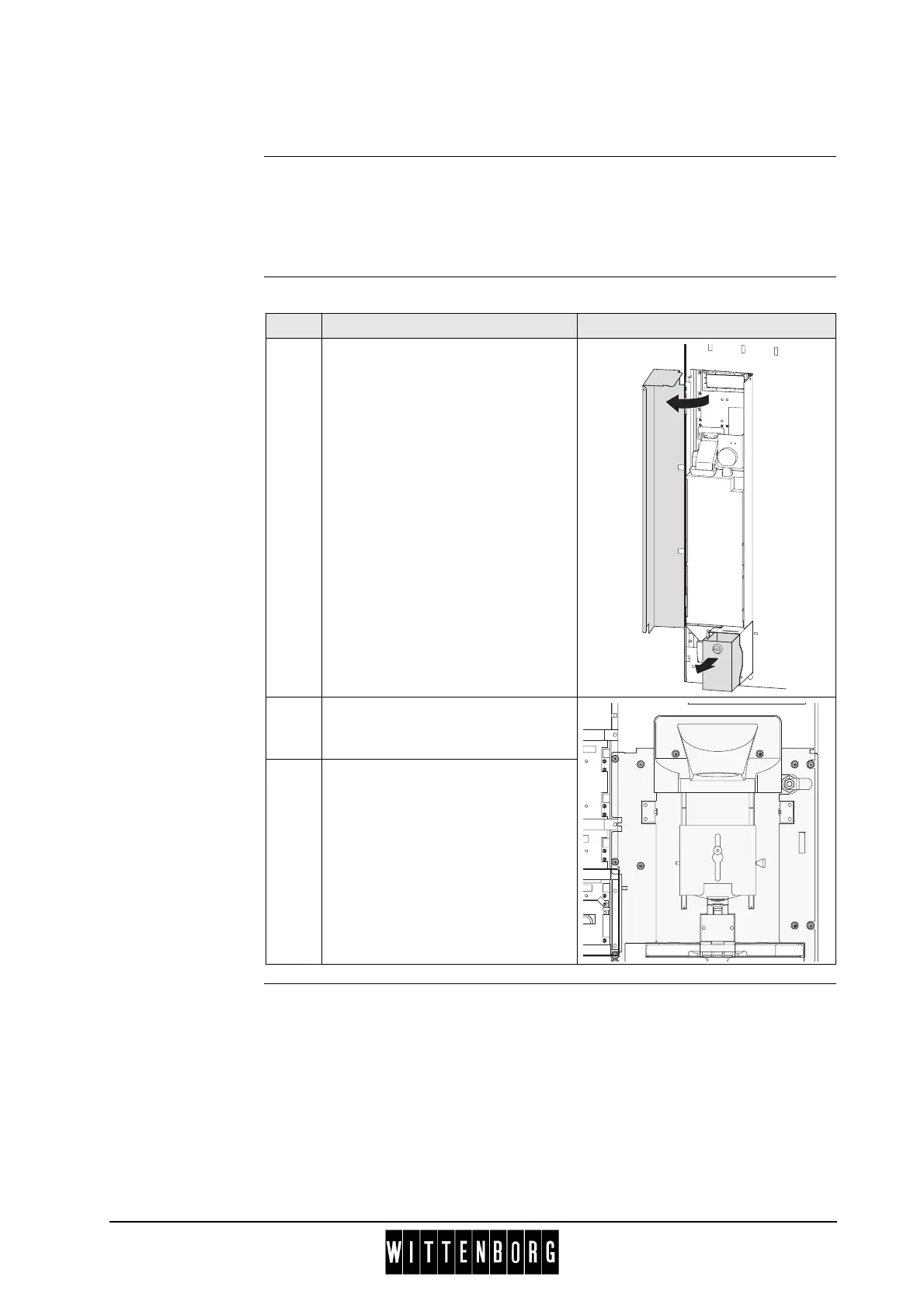

Step Action Illustration
1 Swing cover for payment system
open, and remove the coin box.
2 Remove 12 screws from rear cover
plate for door to release cup
station.
3 Remove cup station from front side
of machine door.
