Service Manual FB 7100
5D - 4 January, 2005

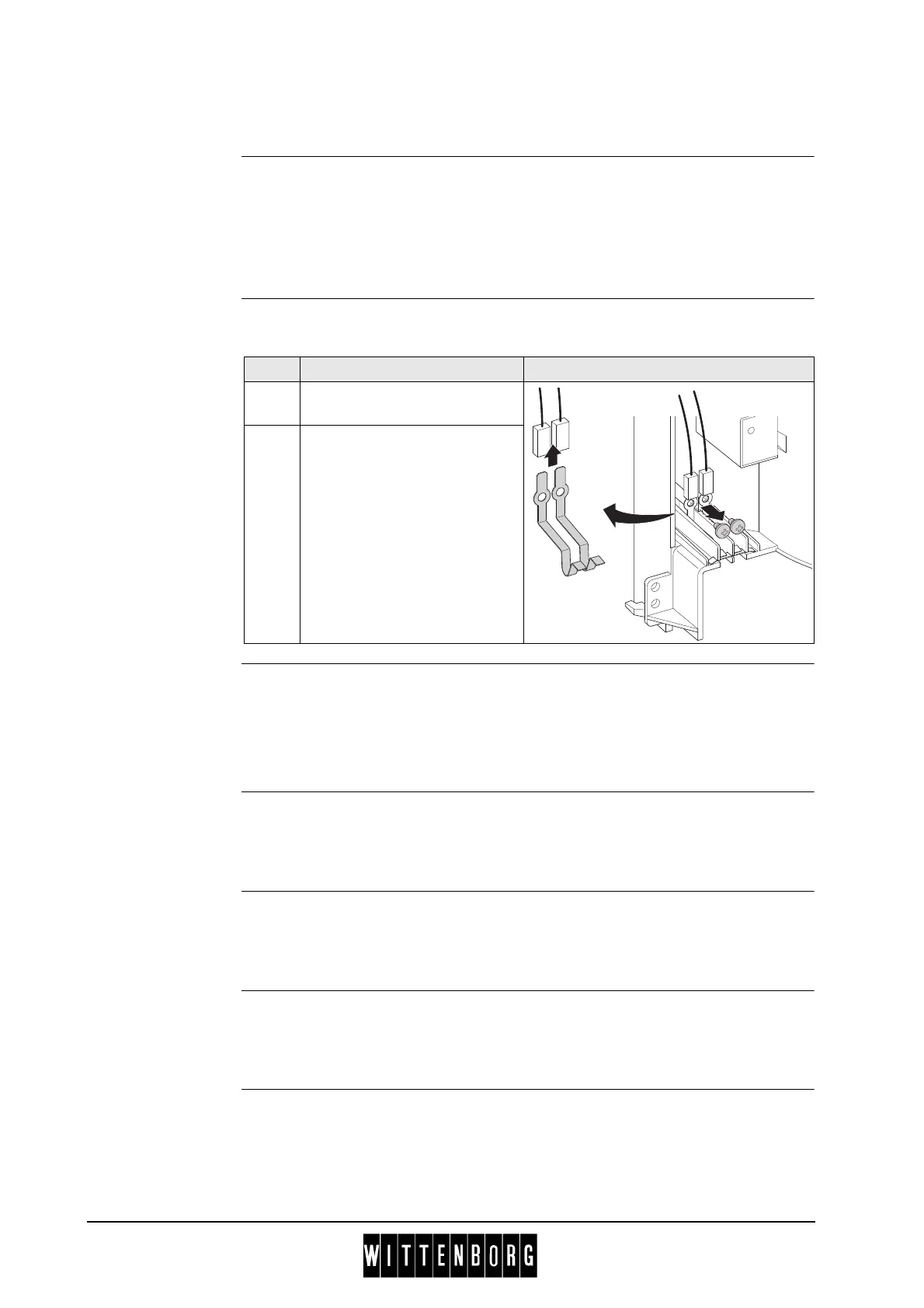

Removing the spring contacts for drip tray sensors
Preparation: Before removing the spring contacts for drip tray sensors:
• Open the door.
• Switch off the main switch.
• Pull out the drip guide
• Remove the cup room, see this section, page 5D-3.
Removal Follow these steps to remove the spring contacts:
Installation Installation is done in reverse order.
D.2.4 Changing the configuration of the cup platform positions
Preparation: Before changing the configuration:
• Open the door.
• Switch off the main switch.
Introduction In the standard configuration it is possible to shift the cup platform be-
tween two different positions by just tilting the cup platform and sliding it
up or down its groove.
Alternative posi-
tions
If alternative settings are required, for instance the possibility of using tal-
ler mugs or locking the cup platform in a fixed position, see the possibili-
ties below:
Changing This table shows some of the non standard alternative positions for the cup
platform:
Step Action Illustration
1 Remove one screw from each
spring contact.
2 Remove electrical
connections, and pull out
spring contacts.
To Next Page
