Service Manual FB 7100
5G - 2 January, 2005
When remounting the fan, make sure to turn it correctly so that the air is
blown out of the machine.

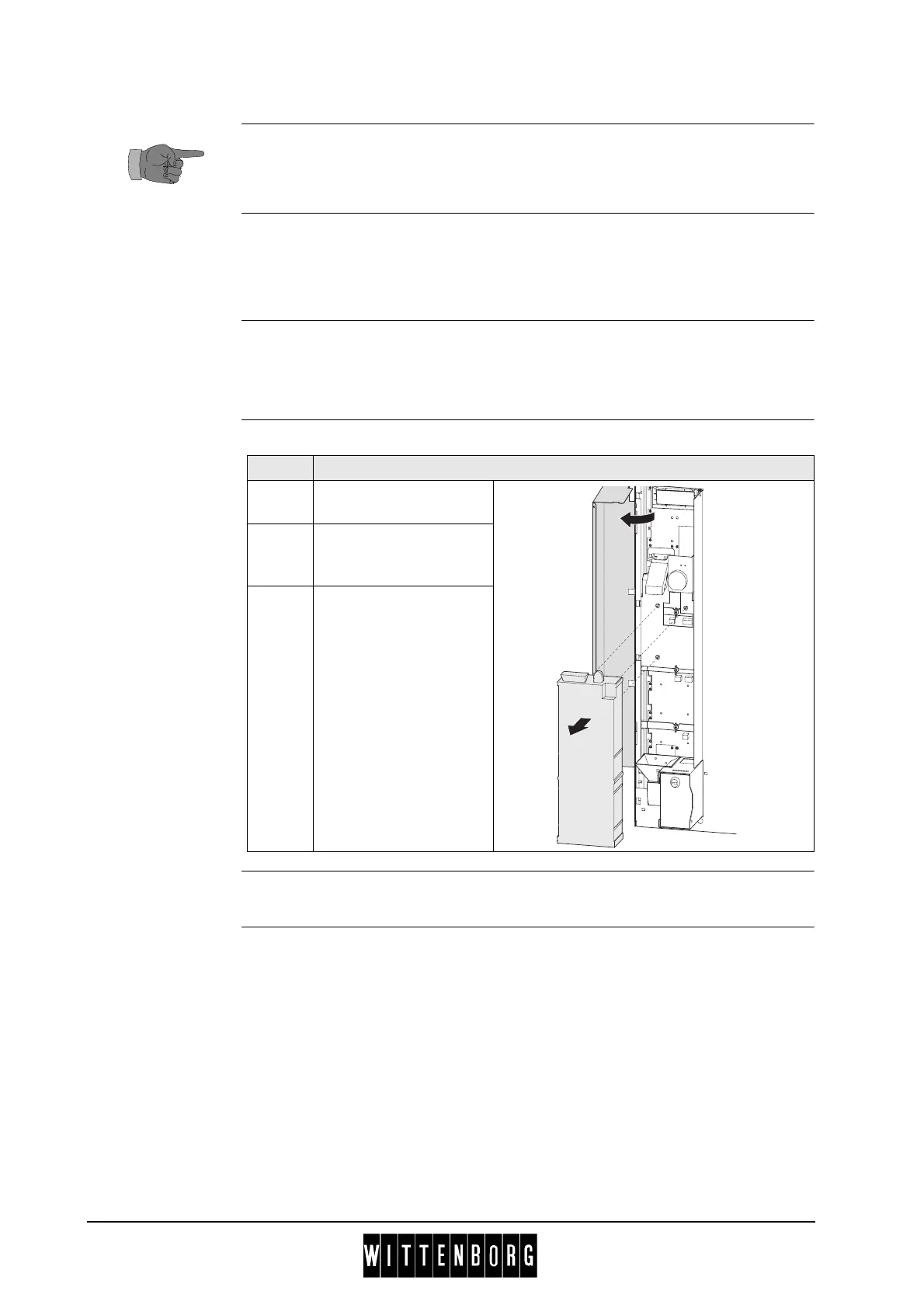

G.2.2 Removing the coin mechanism
Preparation Before removing the coin mechanism:
• Open the door.
• Switch off the main switch.
Removal Follow these steps to remove the coin mechanism:
Installation Installation is done in reverse order.
Step Action
1 Swing cover for pay-
ment system open.
2 Disconnect electrical
connections to coin
mechanism.
3 Detach the coin mecha-
nism from the three
retaining screws.
