Service Manual FB 7100 Water System
5A - 12 January, 2005
Drain the boiler before you proceed. If the boiler is not drained, hot water
will flow from the hoses as soon as the hoses are disconnected.
Disassembly Follow these steps to disassemble the water inlet parts:
Assembly Assembly is done in reverse order.
A.2.13 Disassembling the inlet valve
Preparation Before removing the inlet valve
• Open the door.
• Switch off the main switch, and close the water tap.
• Remove coffee waste bucket and pull forward the base tray.
• Release distributor head and rest it on top of its mouting arm, see this
section, page 5A-2.
• Remove cover for water system, see this section, page 5A-2.

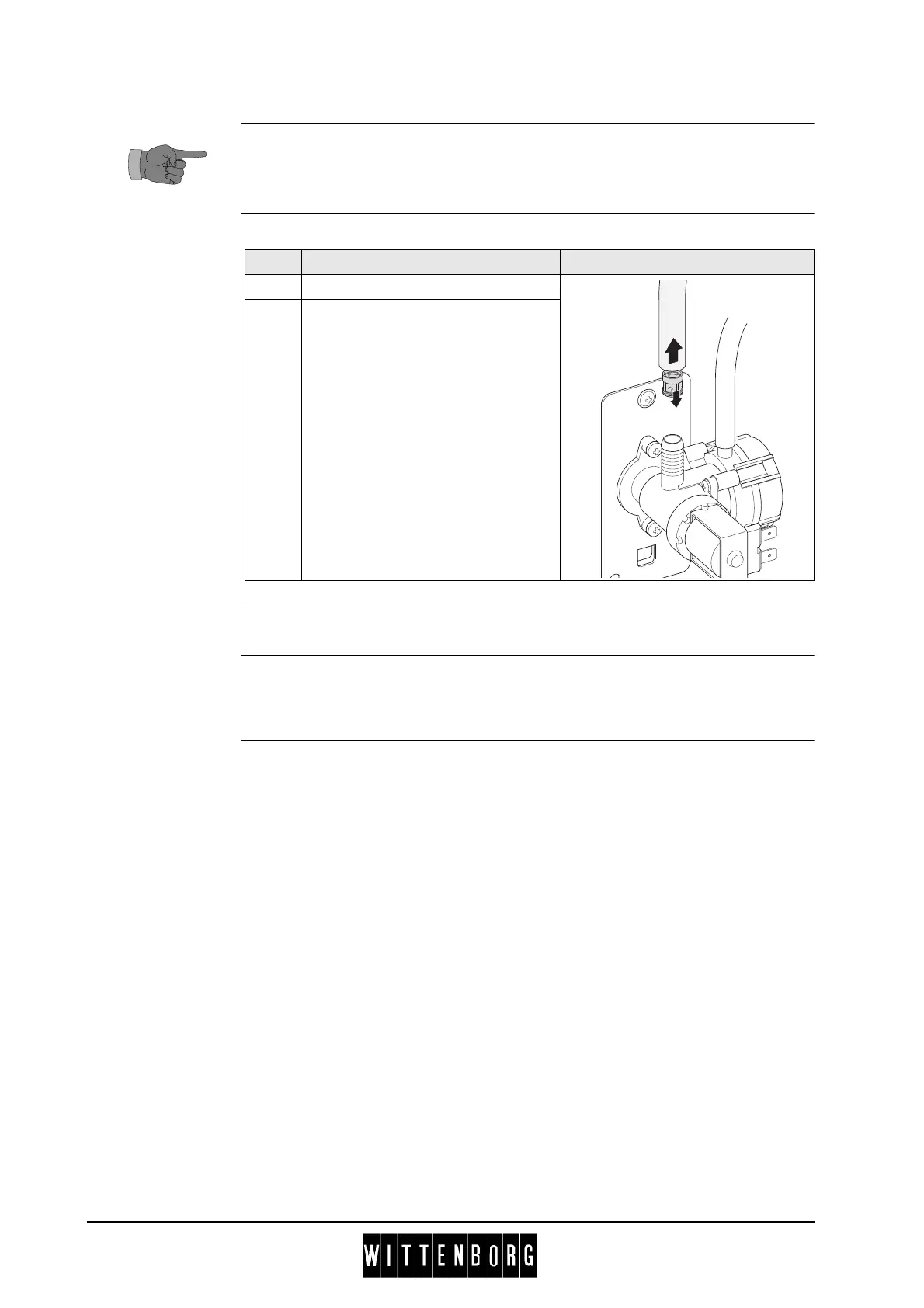

Step Action Illustration
1 Remove the inlet valve hose.
2 Remove the reflux valve from inside
the tube and check for impurities.
